The module

Figure Module的更多信息请点击下载Download Figure Slide Show (47页pdf文件介绍)。

Figure 是一个通用作图程序,能够显示、编辑以及处理 FactSage中所所生成的各种图形及相图(*.fig 文件 )。该程序尤其适合于Phase Diagram 模块所计算获得的相图。

图2和3演示了使用 View菜单条和Frame & Axes Window窗口来对计算获得的 CaSiO3 - MgSiO3 二元相图进行编辑。

图4至6演示了其他的编辑图形。编辑后的图可以导出为 *.fig(ACII形式可以在Figure多次处理)或者*.bmp, *.emf and *.wmf 等其他 Windows? 软件常见的格式。

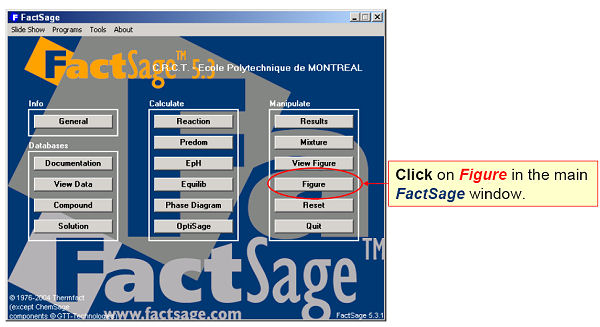

Fig. 1 - Figure Module

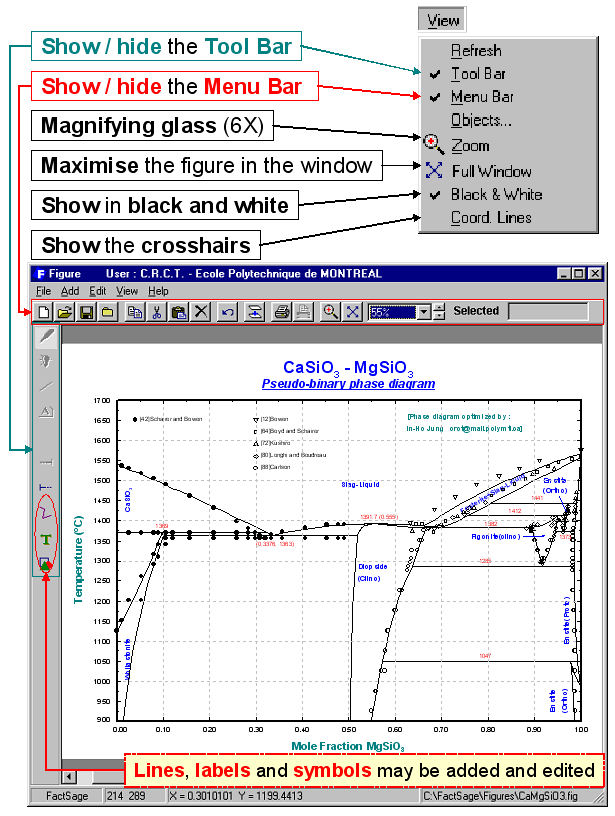

Fig. 2 - Figure Module - CaSiO3-MgSiO3 system.
Example of the View menu bar used to edit calculated phase diagrams.



Fig. 3 - Figure Module - Saving a Mixture



Fig. 4 - Figure Module - Fe-Cr-V-C system. Mass fraction V versus mass fraction W isopleth at 0.3 wt.% C and 850°C calculated from SGTE data by Phase Diagram and editing the output in the Figure Module.

Fig. 5 - Figure Module - NaF-NaCl-CaF2-CaCl2 reciprocal system. The liquidus projection was calculated from FACT data by editing the results and ouputs from the Equilib, Phase Diagram and Figure modules.



Fig. 6 - Figure Module - NaCl-KCl-MgCl2 ternary system. The liquidus projection was calculated from FACT data by editing the results and outputs and from Equilib, Phase Diagram and Figure modules.
