FactSage light metals database - list of systems and phases

FactSage FSlite light metal alloy database

List of systems and phases

The following tables summarise the contents of the FactSage FSlite light metal alloy database in terms of the systems and phases it includes. The listings assist in phase selection for particular calculations by providing

- A LIST OF all the unary, binary, ternary and quaternary SYSTEMS WHICH HAVE BEEN ASSESSED

- A LIST OF ALL ASSESSED phases IN EACH OF THE SYSTEMS

- ASSiSTANCE WITH PHASE SELECTION

Phase diagrams have been calculated for all the binary systems using the assessed parameters contained in the database. The diagram for a particular binary system can be viewed by clicking on the system as listed in Table 2 below. The diagrams contain the names of the stable phases in each system and thus provide guidance in phase selection for calculations in higher-order systems.

The phases listed for the binary and higher order systems may be solution phases or stoichiometric intermetallic compound phases (ST).

Use of the FactSage module VIEW DATA with FSlite compound and solution databases allows inspection of a phase listing for a defined combination of elements.

When searching for a particular system in the present four lists, use alphabetical order of the elements.

A list of references for the individual system assessments can be found under "General Documentation" on the present menu.

Table 1: List of phases for UNARY systems

LIQUID FCC_A1

LIQUID b-RHOMBO_B

LIQUID GRAPHITE

LIQUID FCC_A1 BCC_A2

LIQUID BCC_A2

LIQUID FCC_A1

LIQUID BCC_A2 FCC_A1

LIQUID BCC_A2 HCP_A3

LIQUID BCC_A2

LIQUID HCP_A3

LIQUID CBCC_A12 CUB_A13 FCC_A1 BCC_A2

LIQUID BCC_A2

LIQUID DHCP BCC_A2

LIQUID FCC_A1

LIQUID DIAMOND_A4

LIQUID BCT_A5

LIQUID BCC_A2

LIQUID HCP_A3 BCC_A2

LIQUID BCC_A2

LIQUID HCP_A3 BCC_A2

LIQUID HCP_Zn

LIQUID BCC_A2 HCP_A3

Table 2: List of phases for BINARY systems

Complete assessments are available for the systems listed below.

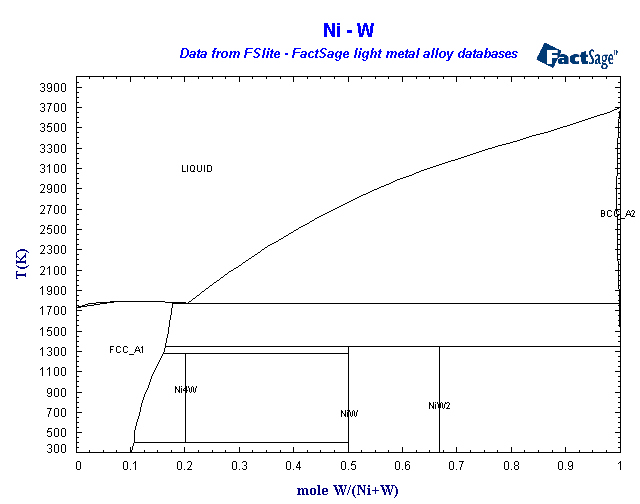

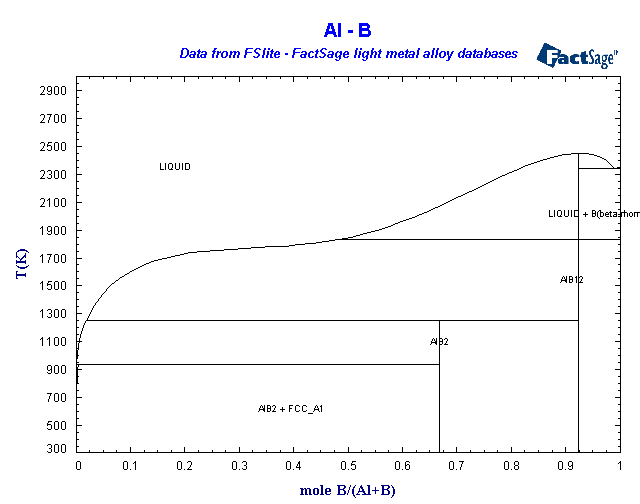

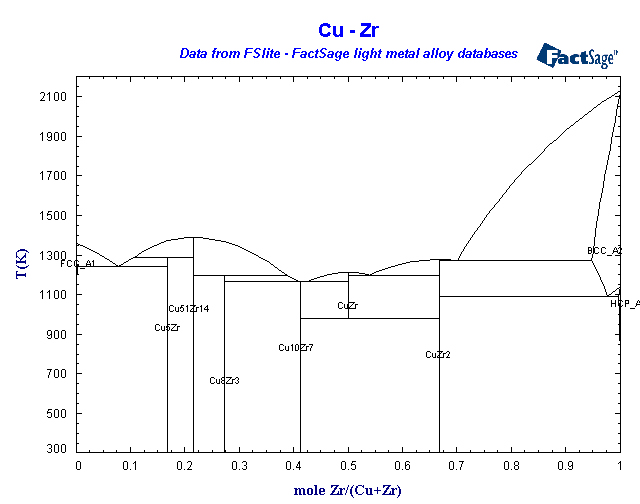

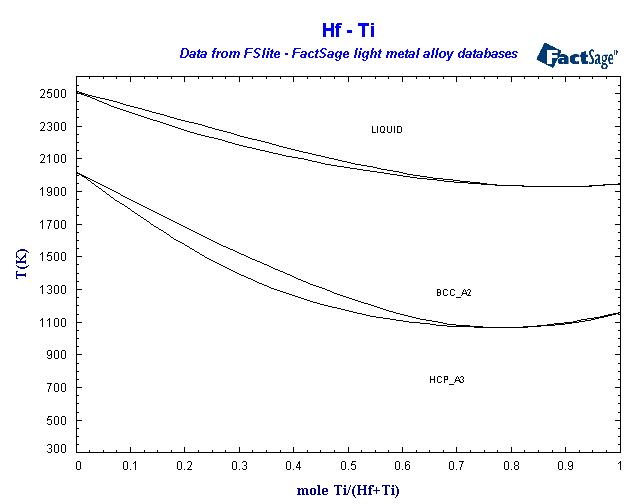

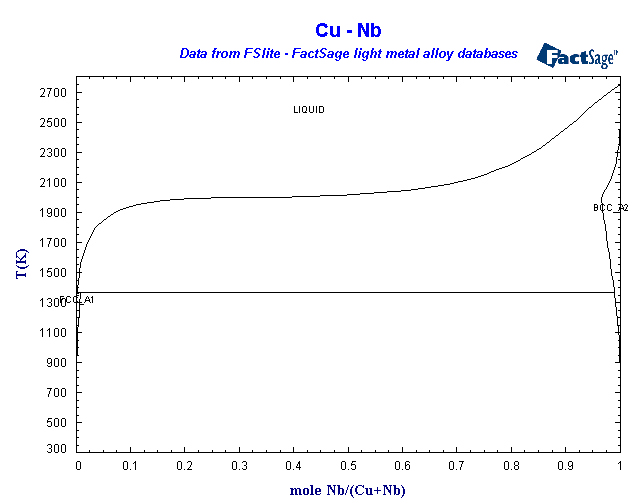

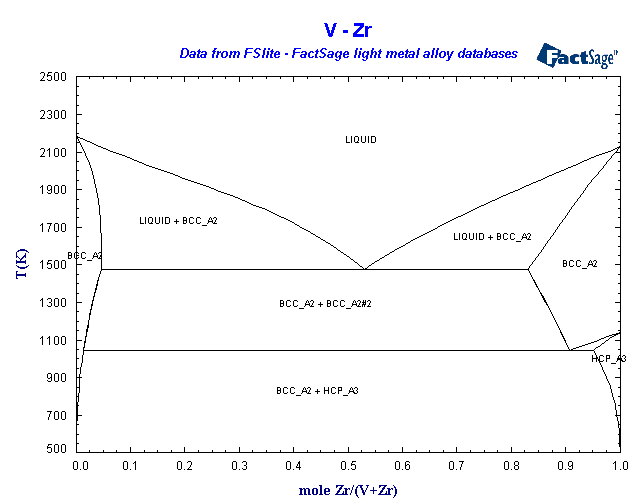

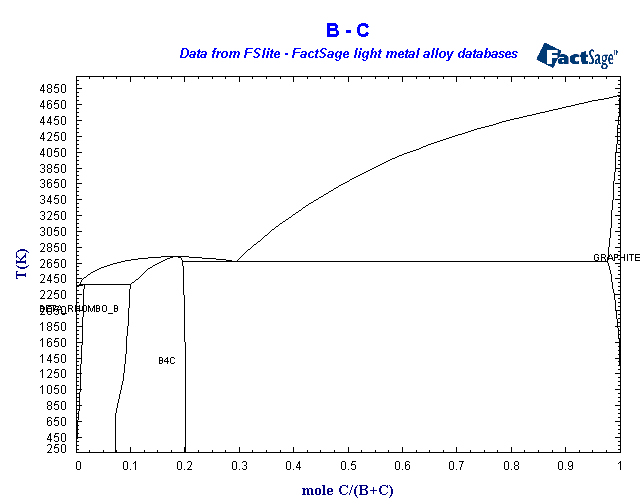

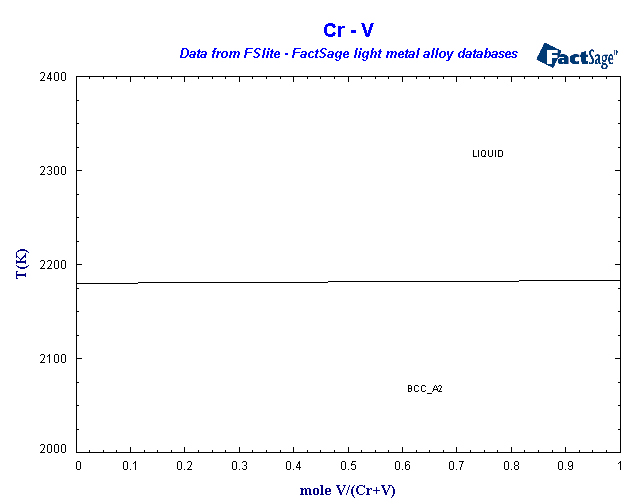

Click on the system name to view the stable phase diagram calculated with the stored parameters.

Phases accompanied by ST in parenthesis indicate a stoichiometric phase. These phases must be selected from the FSlite compound base.

(I-option) – the phase displays a miscibility gap or is an ordered phase; selection with the I-option required.

Al-B

LIQUID FCC-A1 B(S) AlB₁₂-L(ST) AlB₁₂-H(ST) AlB₂(ST)

Al-C

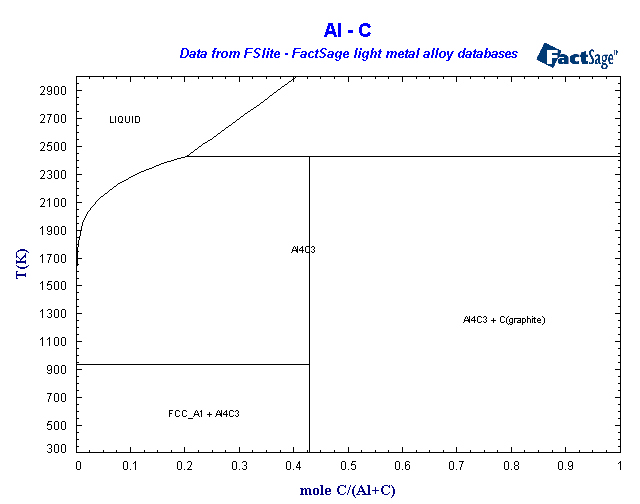

LIQUID FCC_A1 C(S) Al₄C₃(ST)

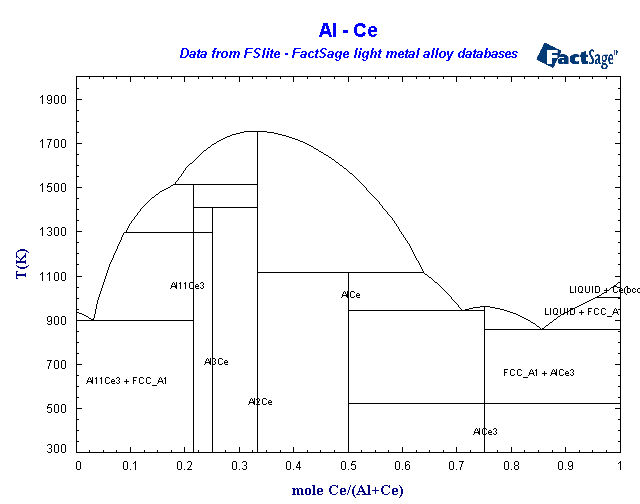

Al-Ce

LIQUID FCC_A1 BCC_A2 Al₁₁Ce₃-H(ST) Al₃Ce(ST)

Al₂Ce(ST) AlCe(ST) AlCe₃-H(ST) AlCe₃-L(ST)

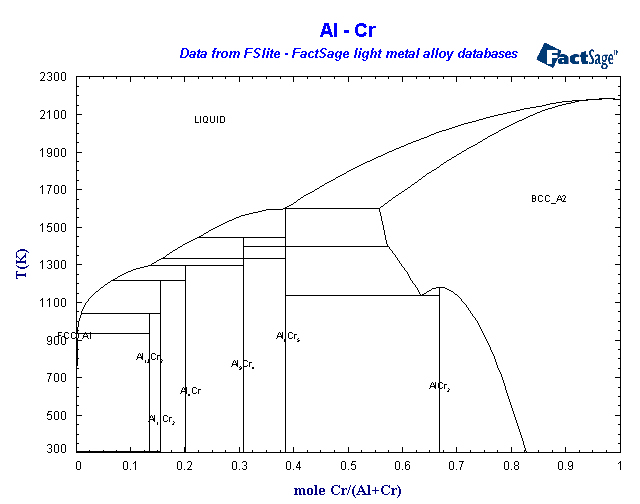

Al-Cr

LIQUID BCC_A2 FCC_A1 Al₁₁Cr₂(ST) Al₁₃Cr₂(ST)

Al₄Cr(ST) Al₈Cr₅(S) Al₈Cr₅(S2) Al₉Cr₄-H(ST) Al₉Cr₄-L(ST) AlCr₂(ST)

Al-Cu

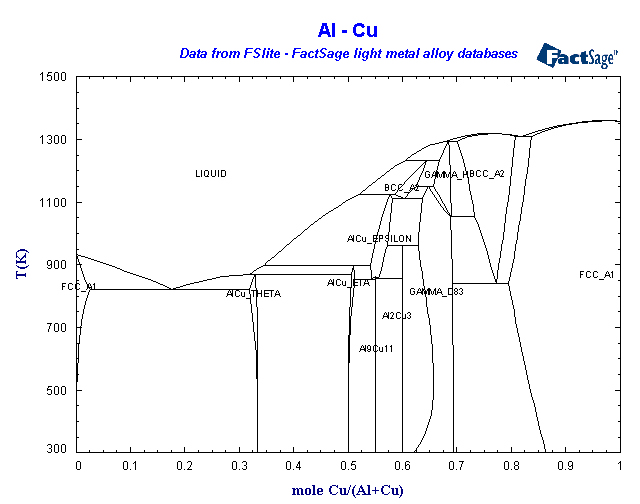

LIQUID BCC_A2 FCC_A1 AlCu-d AlCu-e AlCu-h(ST)

AlCu-q AlCu-z(ST) AlCu-g(H) AlCu-g(D8₃) or GAMMA_LIA(J)

There are two alternative descriptions of the system:

1. with gamma-D83

2. with gamma-lia, which uses a different model. Gamma-lia should be entered with the J option.

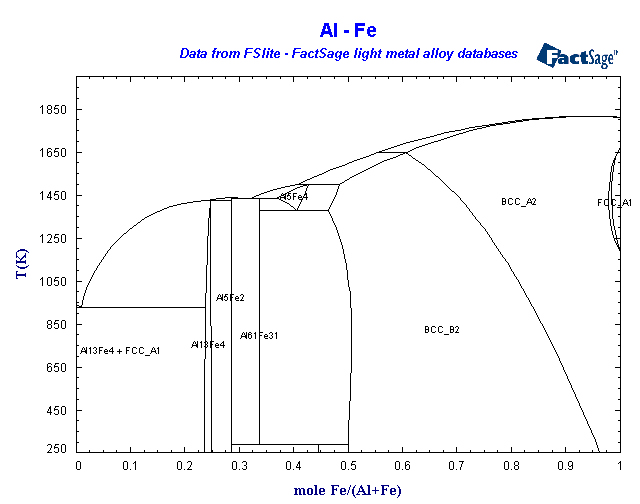

Al-Fe

LIQUID BCC_B2(I-option) FCC_A1 BCC_A2 Al₁₃Fe₄

Al₆₁Fe₃₁(ST) Al₅Fe₂(ST) Al₅Fe₄

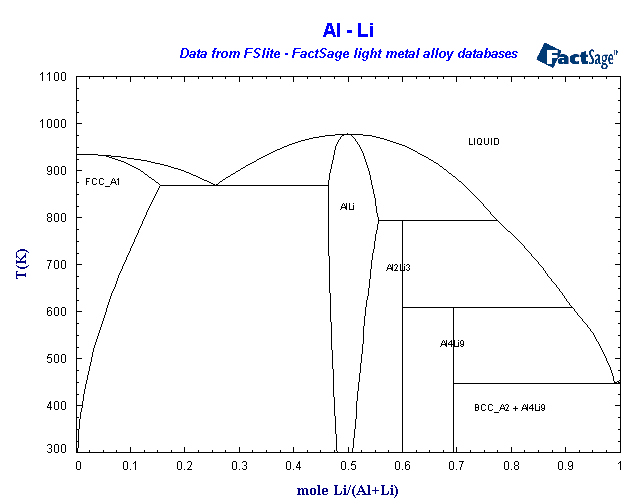

Al-Li

LIQUID FCC_A1 BCC_A2 Al₂Li₃(ST) Al₄Li₉(ST) AlLi

Al-Mg

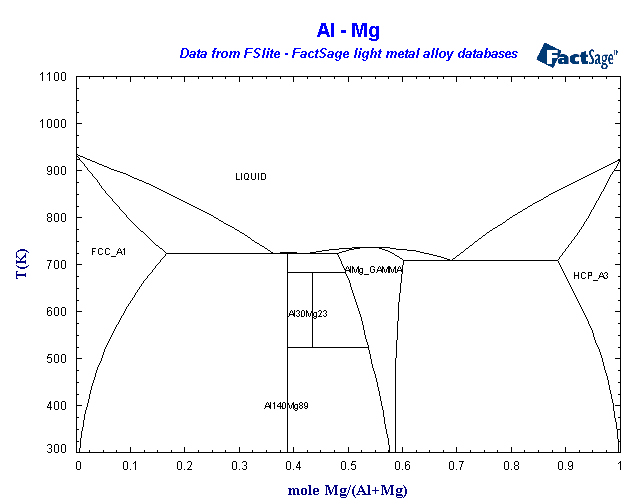

LIQUID FCC_A1 HCP_A3 Al₃₀Mg₂₃(ST) Al₁₄₀Mg₈₉(ST) AlMg-g

Al-Mn

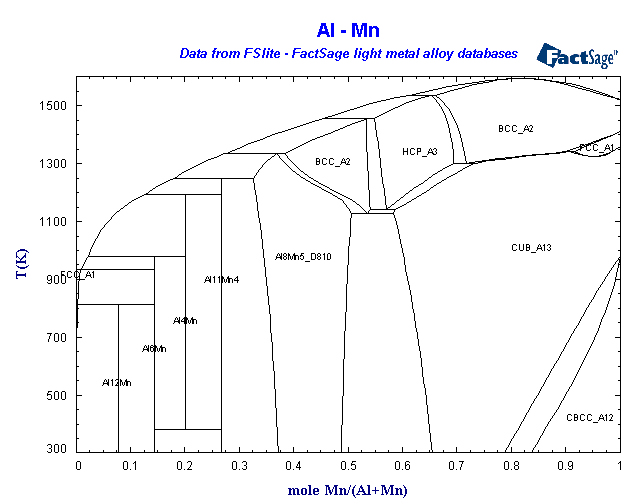

LIQUID BCC_A2 CUB_A13 FCC_A1 HCP_A3 CBCC_A12

Al₁₁Mn₄(ST) Al₁₂Mn(ST) Al₄Mn(ST) Al₆Mn(ST) Al₈Mn₅-D8₁₀

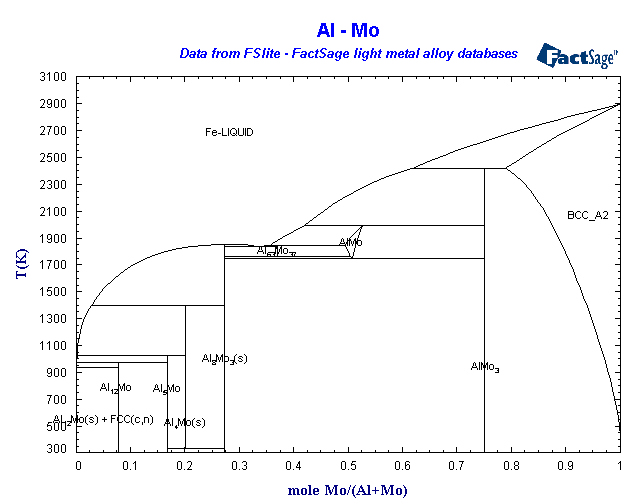

Al-Mo

LIQUID FCC_A1 BCC_A2 Al₁₂Mo(ST) Al₄Mo(ST) Al₅Mo(ST)

Al₅Mo₃(ST) Al₈Mo₃(ST) AlMo₃(ST) AlMo(I-option)

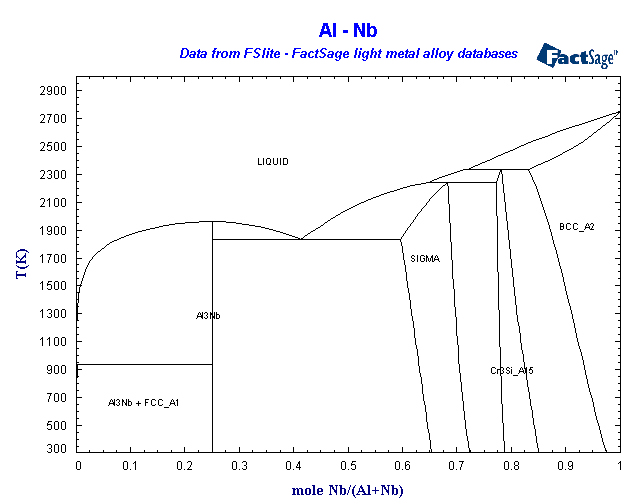

Al-Nb

LIQUID FCC_A1 BCC_A2 Al₃Nb(ST) Cr₃Si-A15 SIGMA

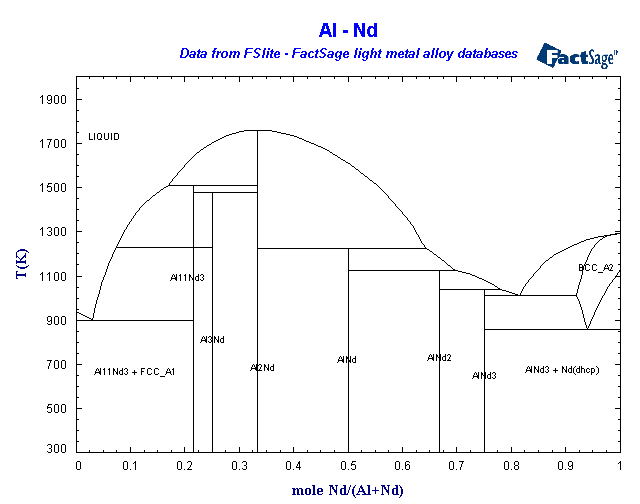

Al-Nd

LIQUID BCC_A2 FCC_A1 Nd(S) Al₁₁Nd₃-H(ST)

Al₁₁Nd₃-L(ST) Al₃Nd(ST)Al₂Nd(ST)AlNd(ST) AlNd₂(ST) AlNd₃(ST)

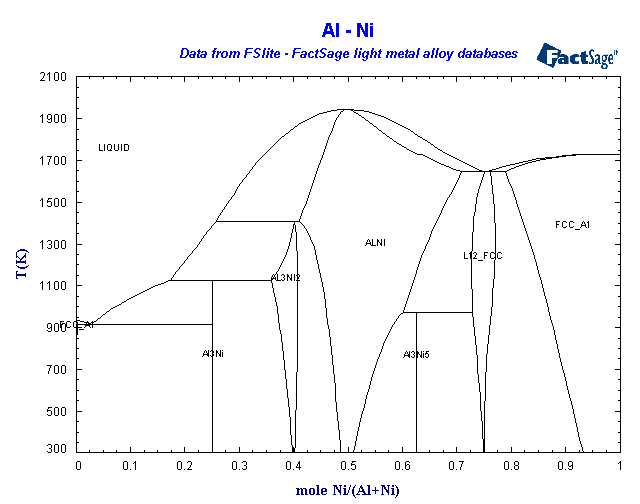

Al-Ni

LIQUID FCC_A1(I-option) AlNI(I-option) L12_FCC(I-option) Al₃Ni₂

Al₃Ni(ST) Al₃Ni₅(ST)

Al-Si

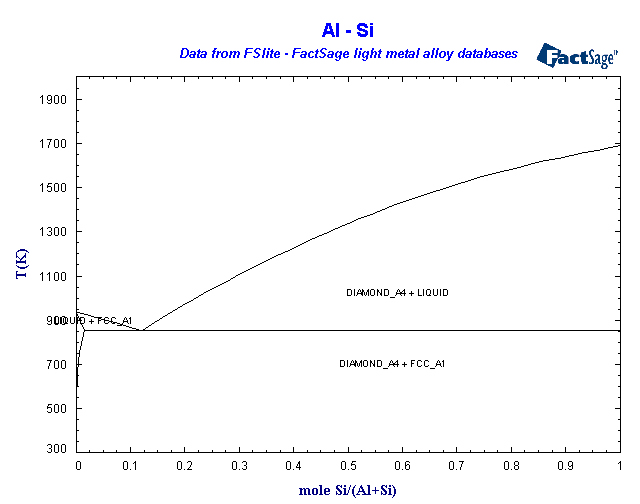

LIQUID FCC_A1 DIAMOND_A4

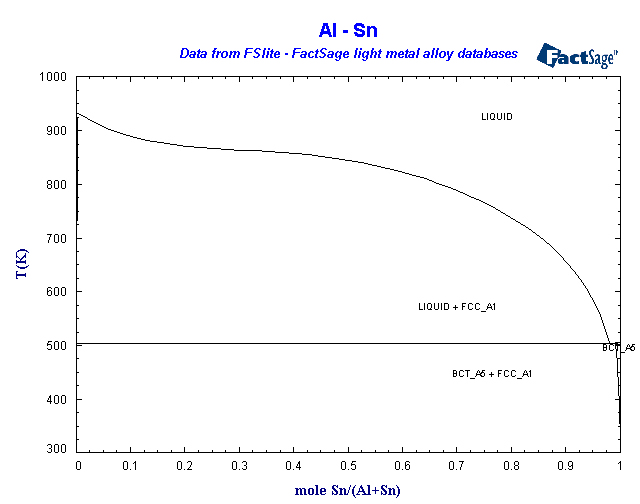

Al-Sn

LIQUID FCC_A1 BCT_A5

Al-Ta

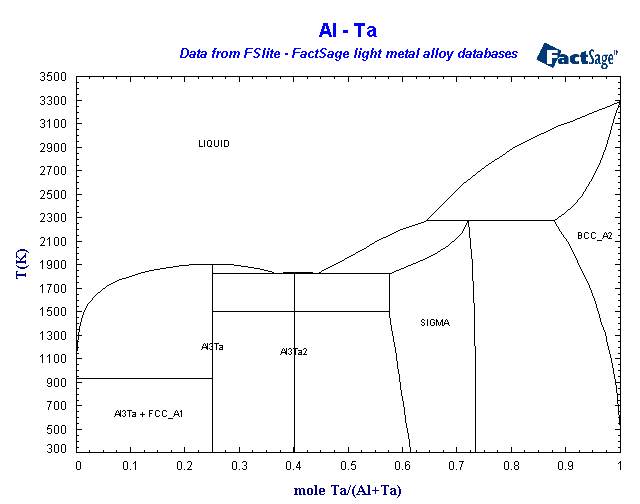

LIQUID FCC_A1 BCC_A2 Al₃Ta(ST) Al₃Ta₂-L(ST) SIGMA

Al₃Ta₂-H(ST)

Al-Ti

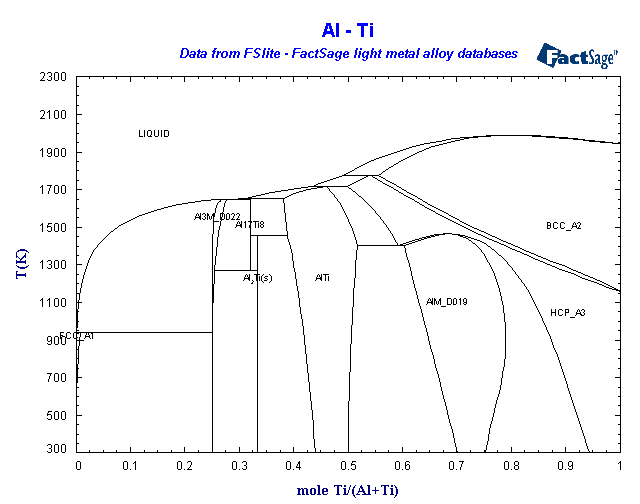

LIQUID BCC_A2 FCC_A1 HCP_A3 Al₁₇Ti₈(ST)

Al₂Ti(ST) Al3M-D0₂₂ AlTi-L1₀(I-option) AlM-D0₁₉(I-option)

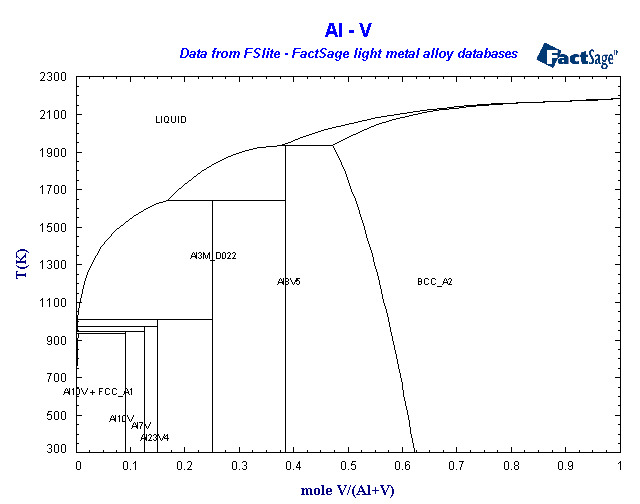

Al-V

LIQUID BCC_A2 FCC_A1 Al₁₀V(ST) Al₂₃V₄(ST)

Al3M-D0₂₂(ST) Al₇V(ST) Al₈V₅(ST)

Al-Y

LIQUID BCC_A2 FCC_A1 HCP_A3 Al₃Y(ST)

Al₂Y(ST) AlY(ST) Al₂Y₃(ST) Al₃Y₅(ST) AlY₂(ST)

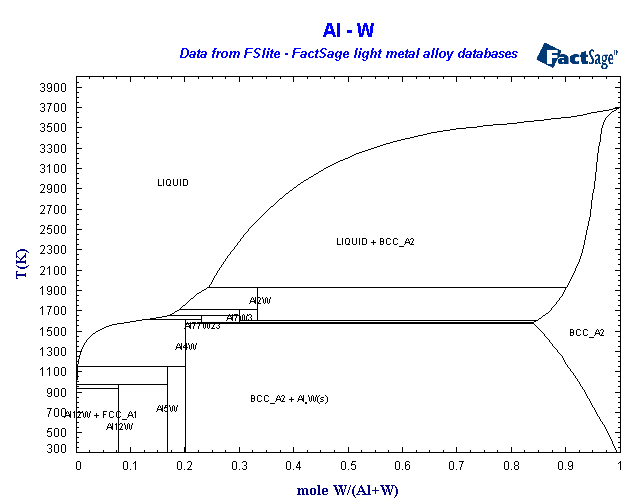

Al-W

LIQUID BCC_A2 FCC_A1 Al₁₂W(ST) Al₄W(ST) Al₅W(ST)

Al₇₇W₂₃(ST) Al₇W₃(ST) Al₂W(ST)

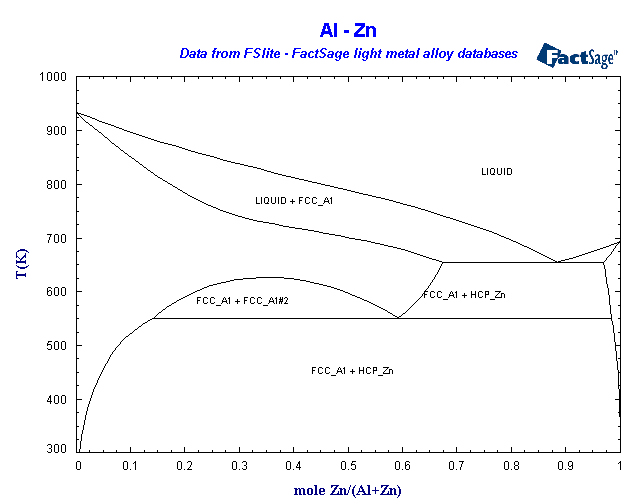

Al-Zn

LIQUID FCC_A1(I-option) HCP_Zn

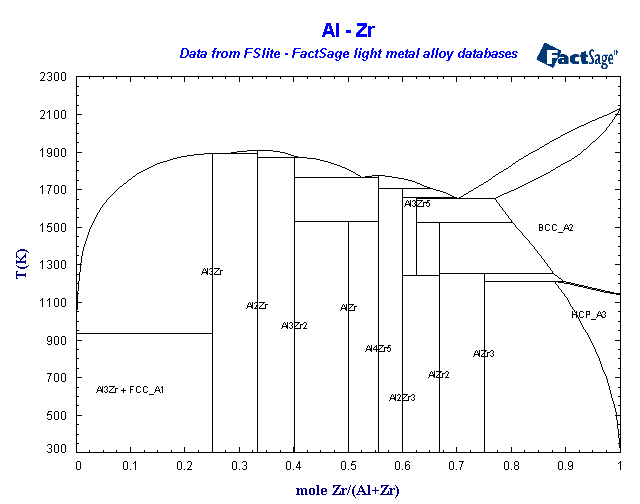

Al-Zr

LIQUID BCC_A2 FCC_A1 HCP_A3 Al₂Zr(ST) Al₂Zr₃(ST)

Al₃Zr(ST) Al₃Zr₂(ST) Al₃Zr₅(ST) Al₄Zr₅(ST) AlZr(ST) AlZr₂(ST)

AlZr₃(ST)

B-C

LIQUID C(S) b-RHOMBO-B B₄C

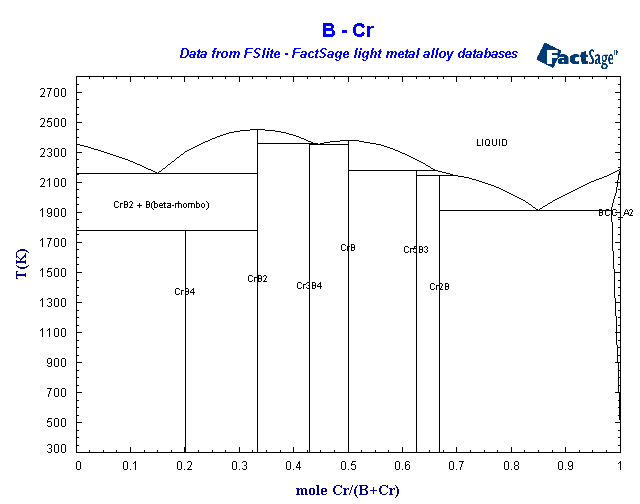

B-Cr

LIQUID BCC_A2 B(S) CrB₄(ST) CrB₂(ST) Cr₃B₄(ST)

CrB(ST) Cr₅B₃(ST) Cr₂B(ST)

B-Fe

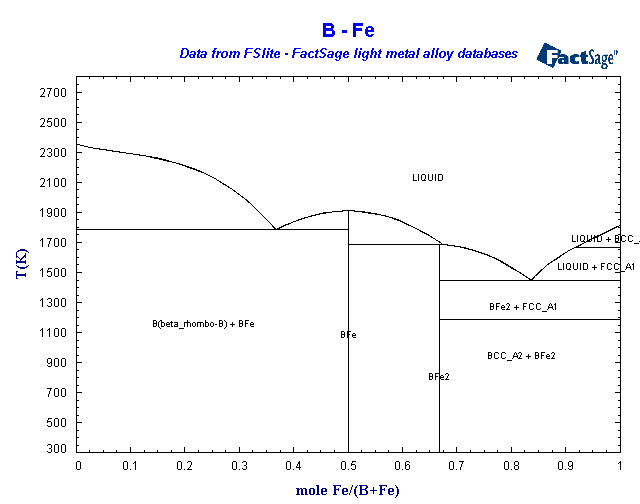

LIQUID BCC_A2 FCC_A1 B(S) FeB(ST)

Fe₂B(ST)

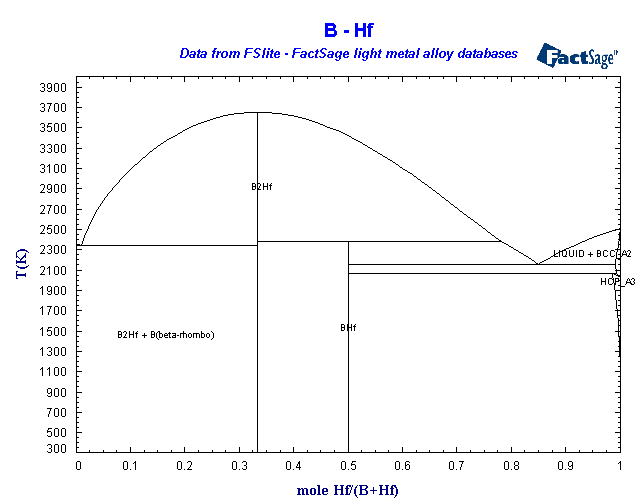

B-Hf

LIQUID BCC_A2 B(S) HCP_A3 BHf(ST)

B₂Hf(ST)

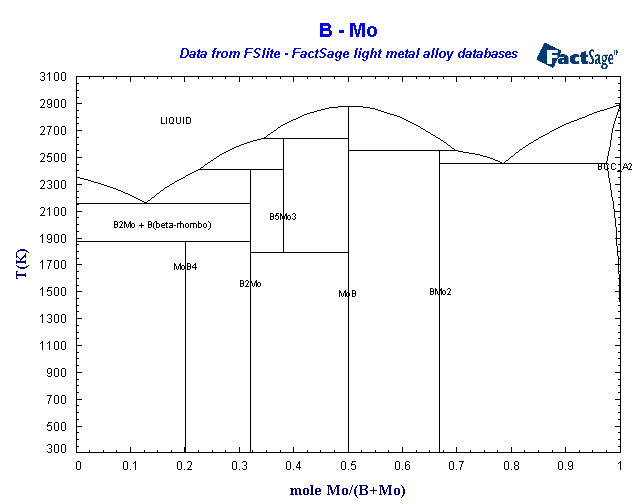

B-Mo

LIQUID BCC_A2 B(S) MoB(ST) Mo₂B₅(ST)

MoB₄(ST) Mo₂B(ST) MoB₂(ST)

B-Ni

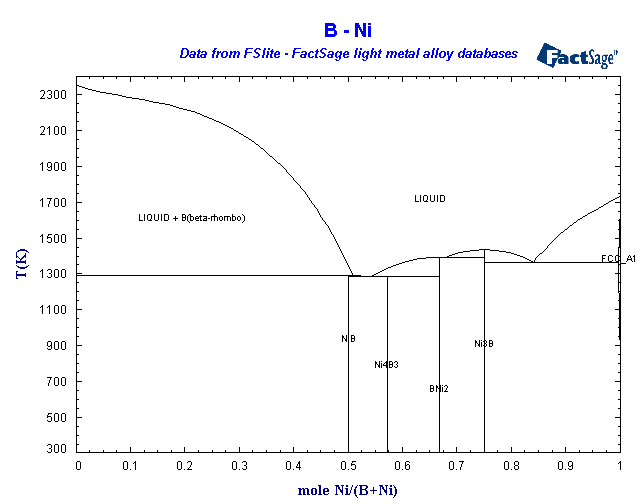

LIQUID FCC_A1 B(S) NiB(ST) Ni₂B(ST)

Ni₃B(ST) Ni₄B₃(ST)

B-Si

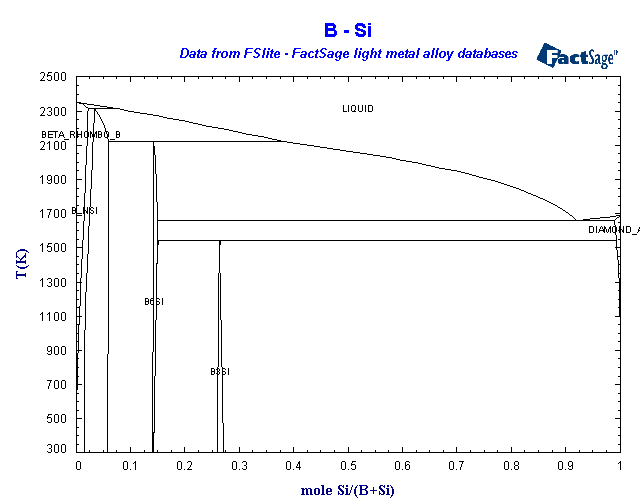

LIQUID DIAMOND_A4 b-RHOMBO-B B_nSi B₃Si B₆Si

B-Ti

LIQUID BCC_A2 HCP_A3 B(S) BTi(ST)

B₄Ti₃(ST) B₂Ti(ST)

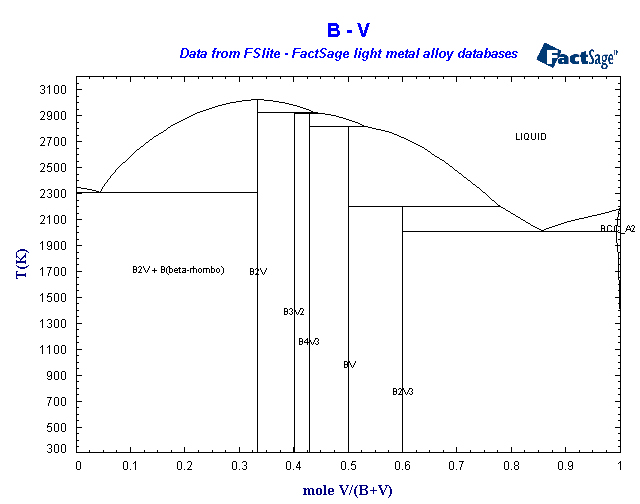

B-V

LIQUID BCC_A2 B(S) VB(ST) VB₂(ST)

V₂B₃(ST) V₃B₂(ST) V₃B₄(ST)

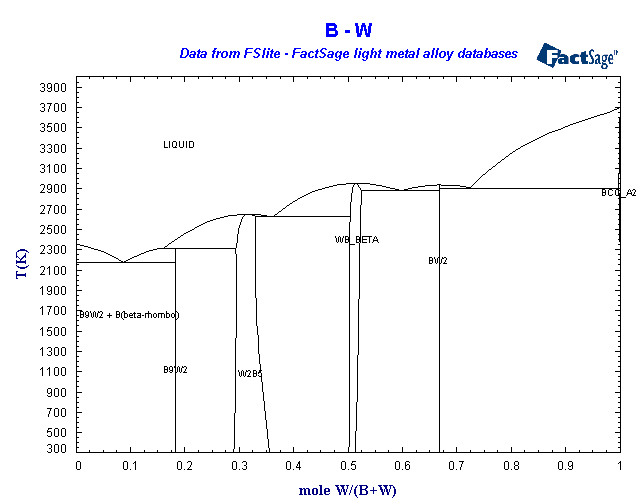

B-W

LIQUID BCC_A2 B(S) W₂B₅ WB_BETA

W₂B(ST) W₂B₉(ST)

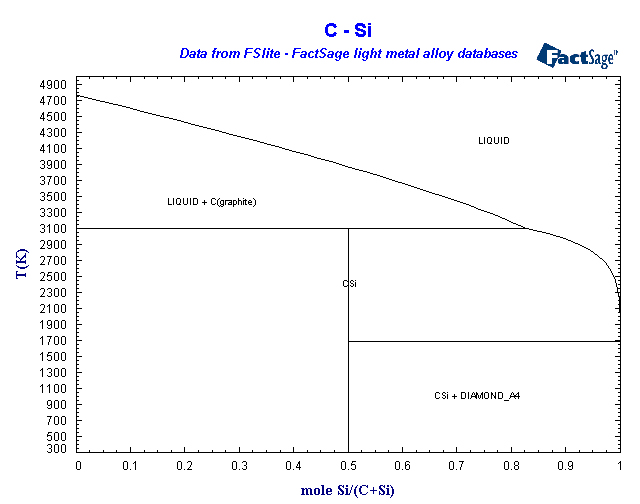

C-Si

LIQUID DIAMOND_A4 C(S) SIC(ST)

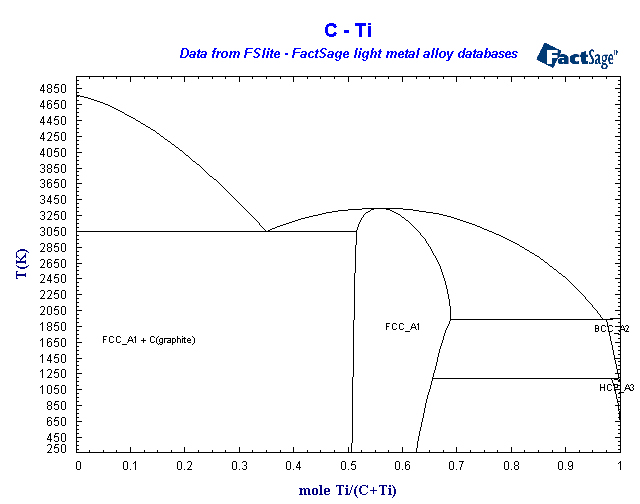

C-Ti

LIQUID BCC_A2 FCC_A1(I-option) HCP_A3 C(S)

Ce-Mg

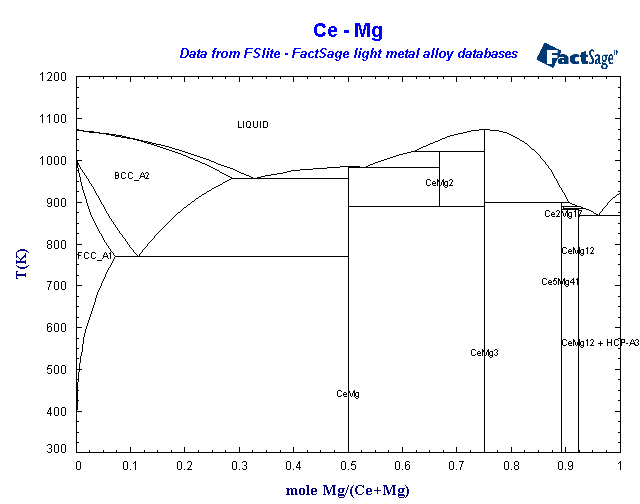

LIQUID BCC_A2 FCC_A1 HCP_A3 CeMg(ST) CeMg₂(ST)

CeMg₃(ST) Ce₅Mg₄₁(ST) Ce₂Mg₁₇(ST) CeMg₁₂(ST)

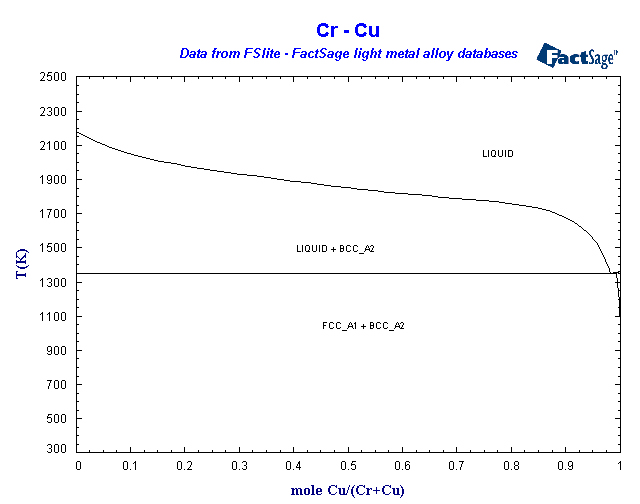

Cr-Cu

LIQUID BCC_A2 FCC_A1

Cr-Fe

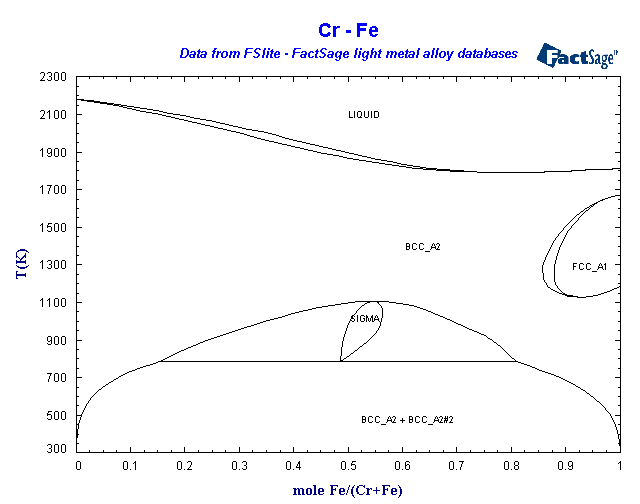

LIQUID BCC_A2(I-option) FCC_A1 SIGMA

Cr-Mg

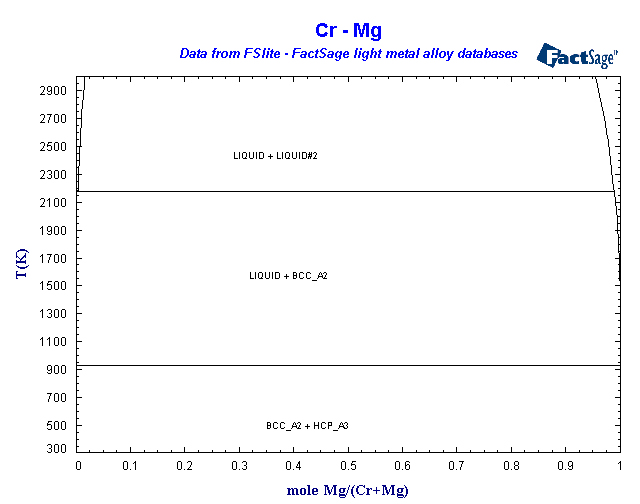

LIQUID(I-option) BCC_A2 HCP_A3

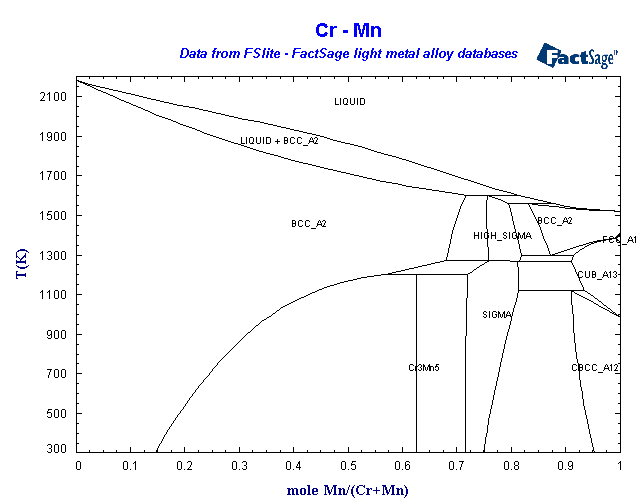

Cr-Mn

LIQUID BCC_A2 CBCC_A12 FCC_A1 HCP_A3 CUB_A13

SIGMA_L SIGMA_H Cr₃Mn₅(ST)

Cr-Nb

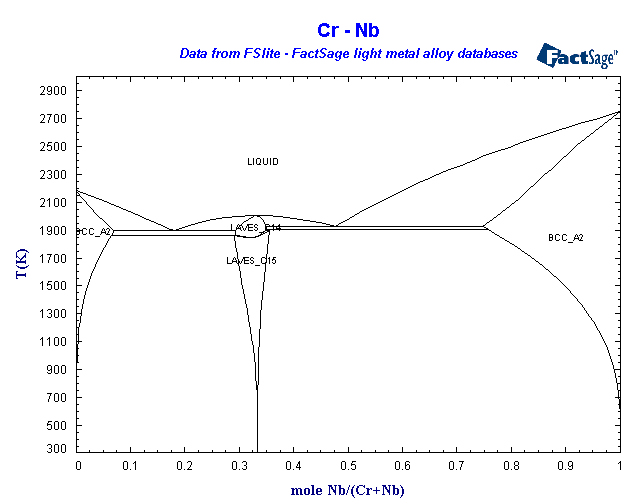

LIQUID BCC_A2(I-option) LAVES_C14 LAVES_C15

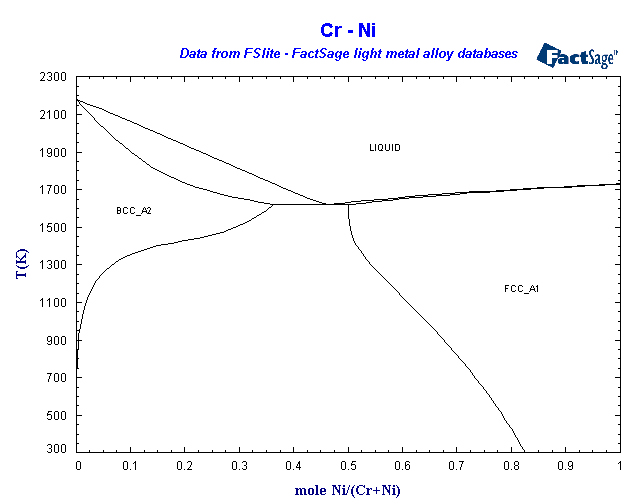

Cr-Ni

LIQUID BCC_A2 FCC_A1

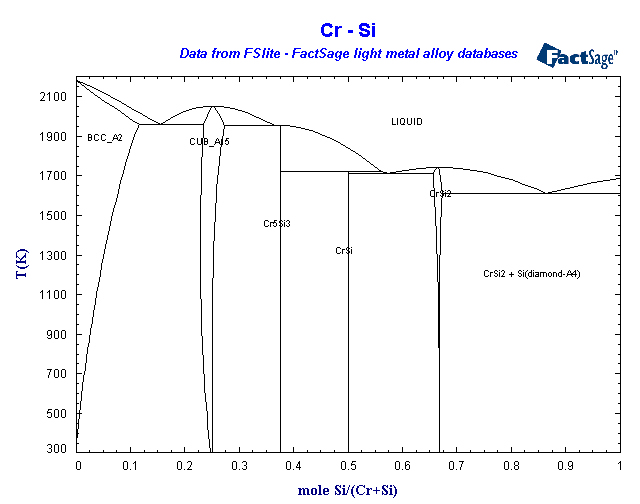

Cr-Si

LIQUID BCC_A2 Si(S) Cr₃Si-A15 Cr₅Si₃(ST)

CrSi(ST) CrSi₂

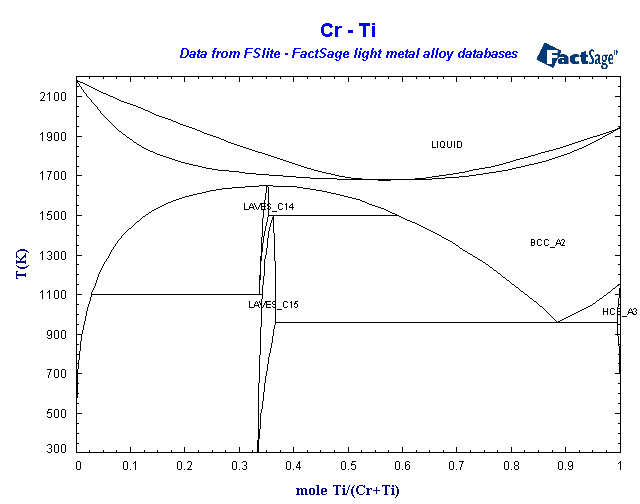

Cr-Ti

LIQUID BCC_A2 HCP_A3 LAVES_C14 LAVES_C15

Cr-V

LIQUID BCC_A2

Cr-W

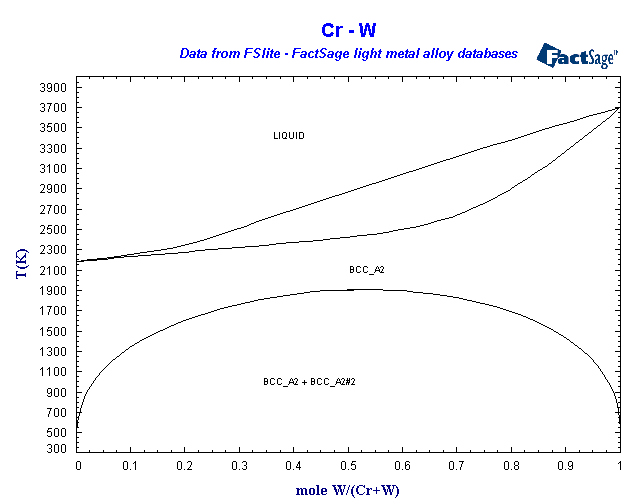

LIQUID BCC_A2(I-option)

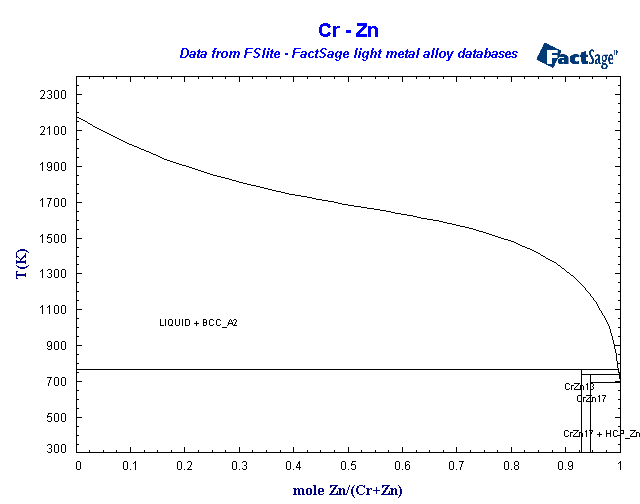

Cr-Zn

LIQUID BCC_A2 HCP_Zn CrZn₁₃(ST) CrZn₁₇(ST)

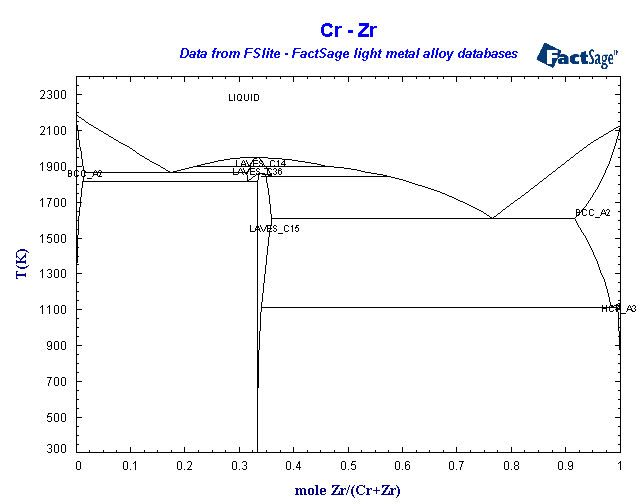

Cr-Zr

LIQUID BCC_A2 HCP_A3 LAVES_C14 LAVES_C15

LAVES_C36

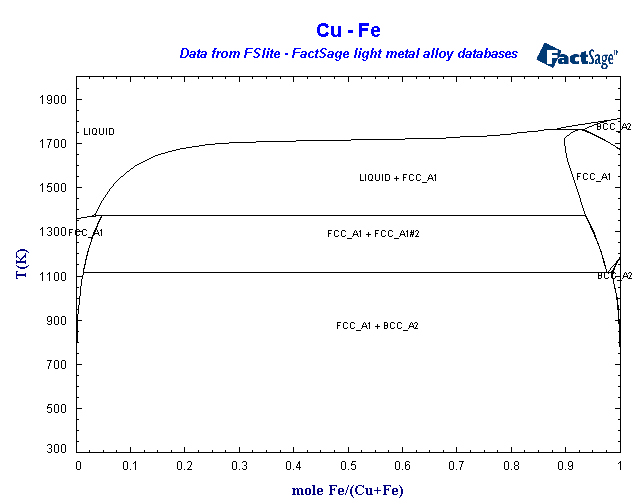

Cu-Fe

LIQUID BCC_A2 FCC_A1(I-option)

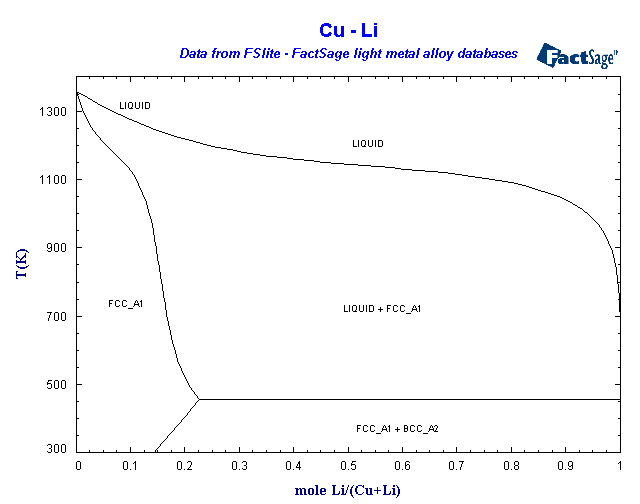

Cu-Li

LIQUID BCC_A2 FCC_A1

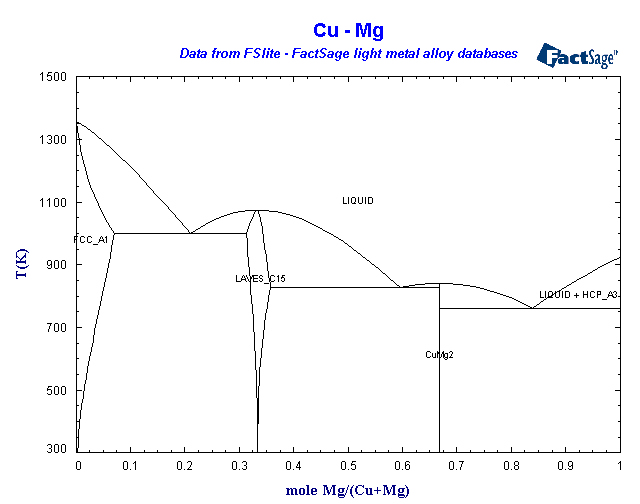

Cu-Mg

LIQUID FCC_A1 HCP_A3 LAVES_C15 CuMg₂(ST)

Cu-Mn

LIQUID FCC_A1 BCC_A2 Mn(S) Mn(S2)

Cu-Nb

LIQUID FCC_A1 BCC_A2

Cu-Ni

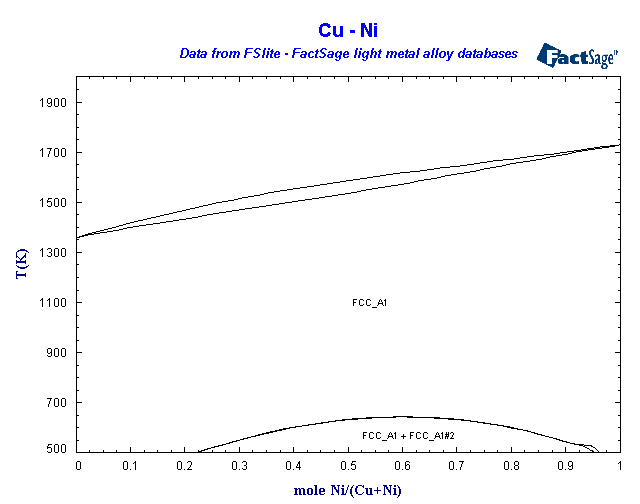

LIQUID FCC_A1(I-option)

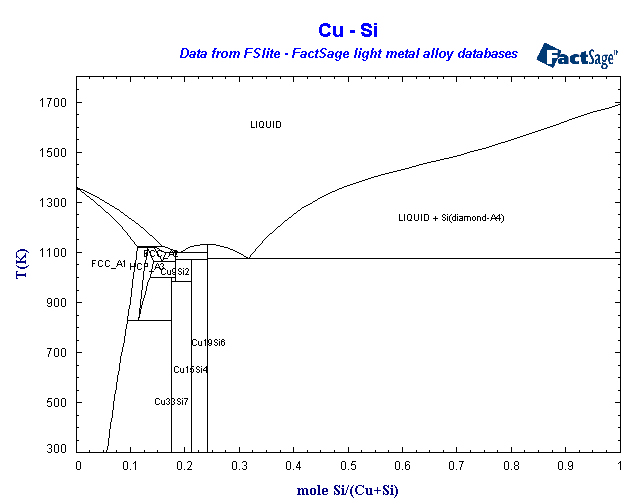

Cu-Si

LIQUID BCC_A2 FCC_A1 Si(S) HCP_A3

Cu₁₅Si₄(ST) Cu₃₃Si₇(ST) Cu₁₉Si₆(ST) Cu₉Si₂(ST)

Cu-Sn

LIQUID Sn(S) FCC_A1 BCC_A2 Cu₁₀Sn₃-z(ST)

Cu₃Sn-e(ST) Cu₄Sn-d(ST) Cu₆Sn₅-h(ST) Cu₁₂Sn₁₀-h’(ST) CuSn-g(D0₃)

Cu-Ti

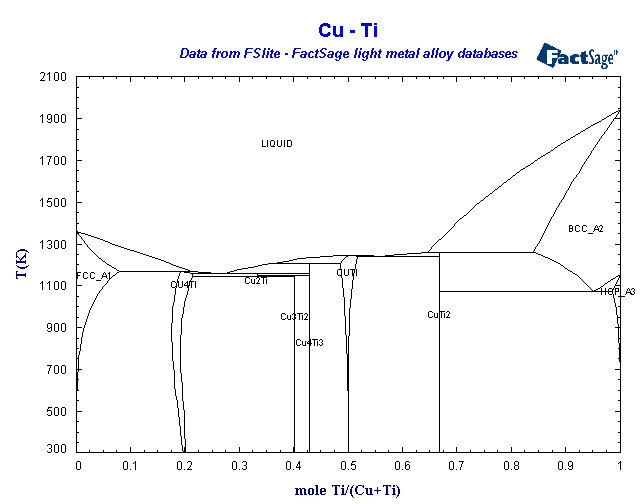

LIQUID BCC_A2 FCC_A1 HCP_A3 CuTi₂(ST) Cu₂Ti(ST)

Cu₃Ti₂(ST) Cu₄Ti₃(ST) Cu₄Ti CuTi

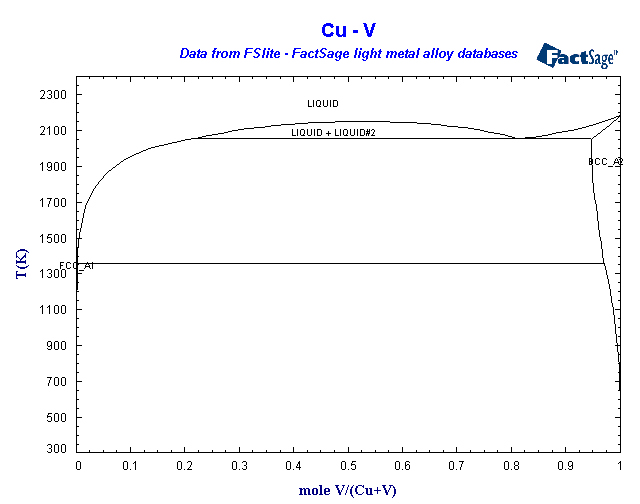

Cu-V

LIQUID(I-option) BCC_A2 FCC_A1

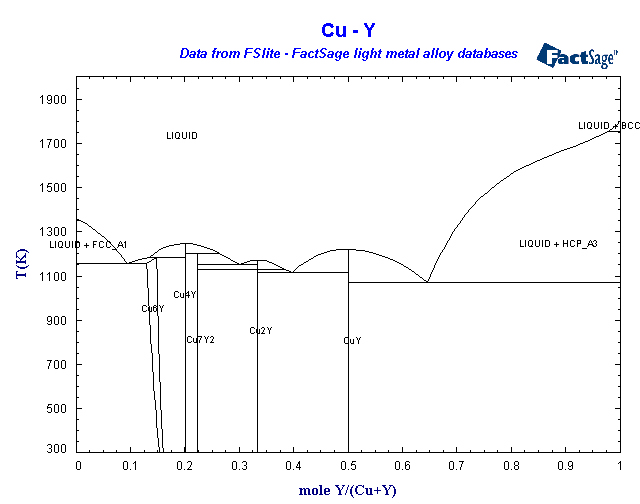

Cu-Y

LIQUID FCC_A1 HCP_A3 BCC_A2 Cu₆Y Cu₄Y(ST)

Cu₇Y₂(ST) Cu₂Y(ST) CuY(ST)

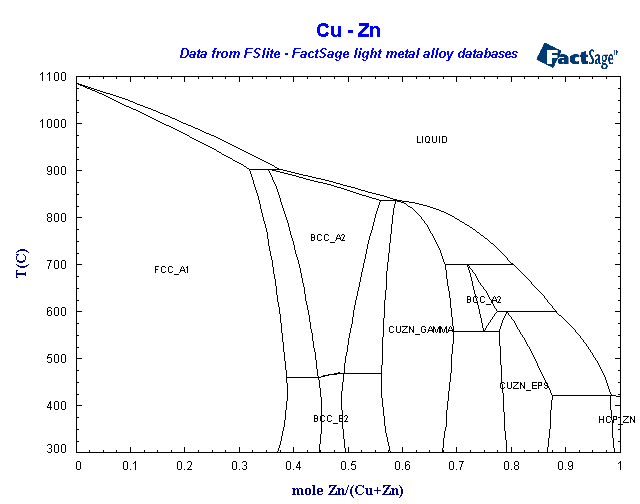

Cu-Zn

LIQUID BCC_A2 BCC_B2(I-option) HCP_A3 FCC_A1 HCP_Zn

CuZn-g (or GAMMA_LIA(J))

There are two alternative descriptions of the system:

1. with gamma-D83

2. with gamma-lia, which uses a different model. Gamma-lia should be entered with the J option.

Cu-Zr

LIQUID BCC_A2 HCP_A3 FCC_A1 Cu₅Zr(ST)

Cu₅₁Zr₁₄(ST) Cu₁₀Zr₇(ST) CuZr(ST) CuZr₂(ST) Cu₈Zr₃(ST)

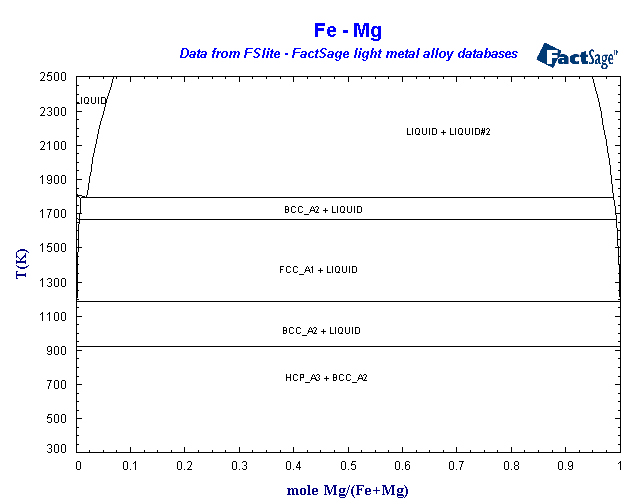

Fe-Mg

LIQUID(I-option) BCC_A2 FCC_A1 HCP_A3

Fe-Mn

LIQUID BCC_A2 CBCC_A12 CUB_A13 FCC_A1

Fe-Si

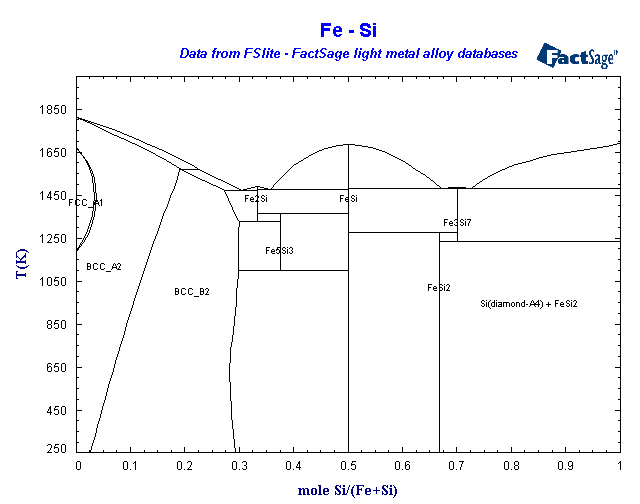

LIQUID BCC_A2 BCC_B2(I-option) FCC_A1 Si(S)

FeSi(ST) Fe₂Si(ST) Fe₅Si₃(ST) FeSi₂(ST) Fe₃Si₇(ST)

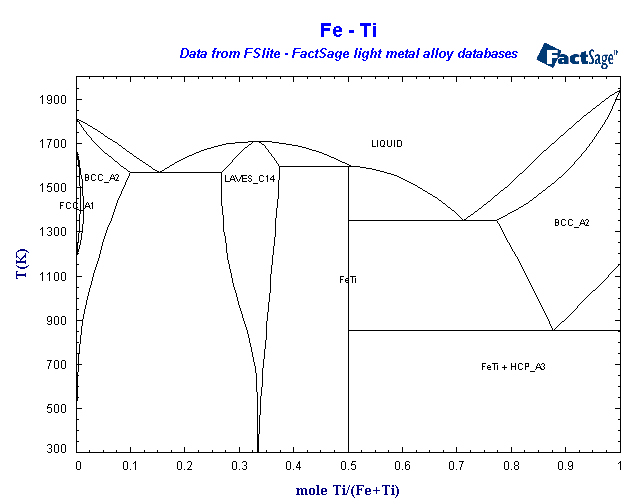

Fe-Ti

LIQUID BCC_A2 FCC_A1 HCP_A3 LAVES_C14 FeTi(ST)

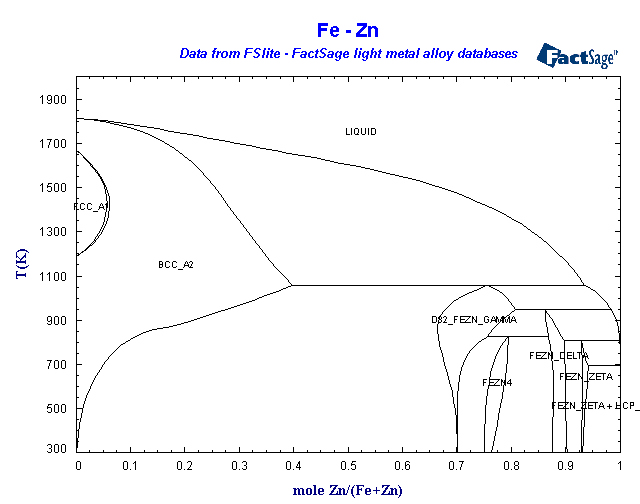

Fe-Zn

LIQUID FCC_A1 BCC_A2 HCP_ZN D82_FeZn_GAMMA

FeZe₄ FeZn_DELTA FeZn_ZETA

Hf-Ti

LIQUID HCP_A3 BCC_A2

Li-Mg

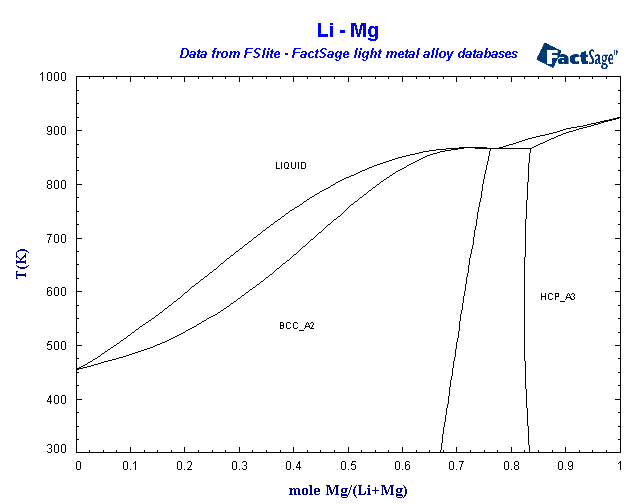

LIQUID BCC_A2 HCP_A3

Li-Zr

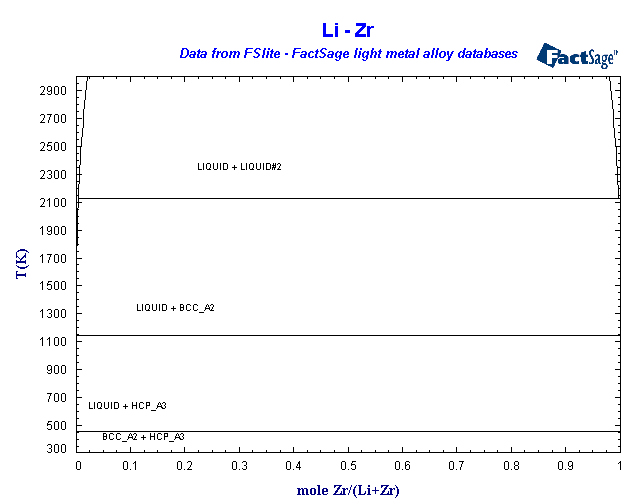

LIQUID(I-option) BCC_A2 HCP_A3

Mg-Mn

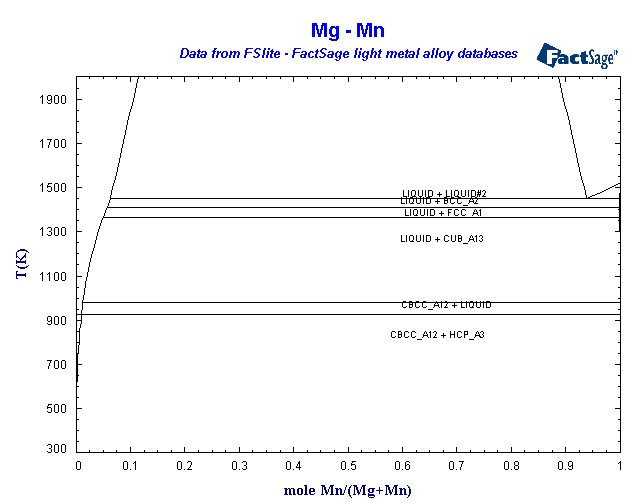

LIQUID(I-option) BCC_A2 HCP_A3 CBCC_A12 CUB-A13 FCC_A1

Mg-Ni

LIQUID FCC_A1 HCP_A3 Mg₂Ni(ST) LAVES_C36

Mg-Si

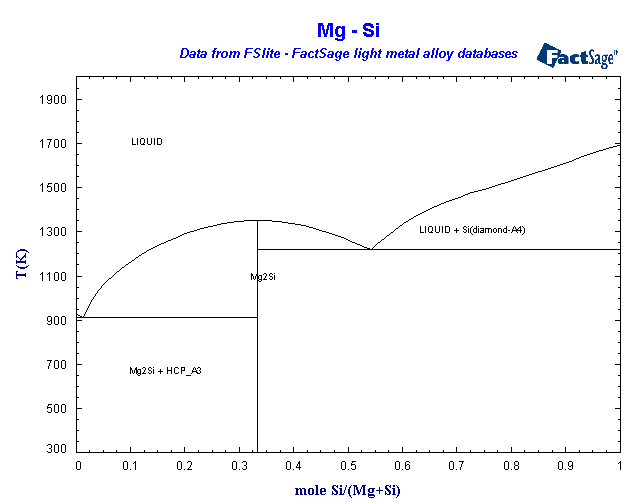

LIQUID Si(S) HCP_A3 Mg₂Si(ST)

Mg-Y

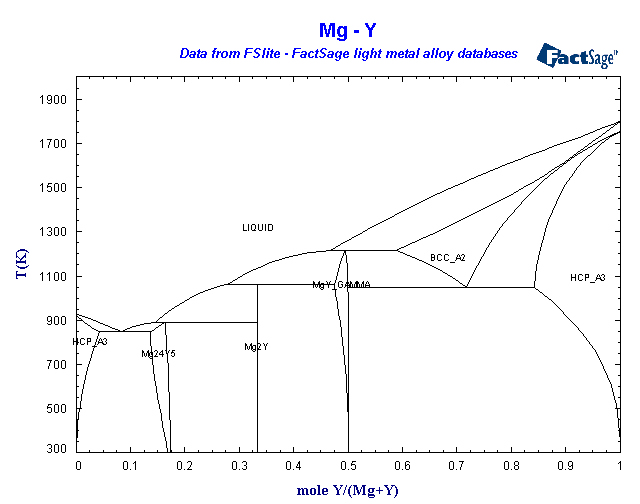

LIQUID HCP_A3 BCC_A2 MgY Mg₂₄Y₅ Mg₂Y(ST)

Mg-Zn

LIQUID HCP_Zn HCP_A3 LAVES_C14 Mg₂Zn₃Y(ST)

Mg₁₂Zn₁₃(ST) Mg₅₁Zn₂₀(ST) Mg₂Zn₁₁(ST)

Mg-Zr

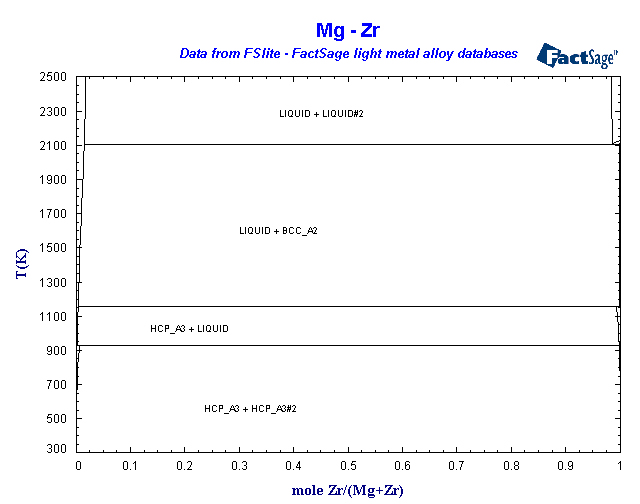

LIQUID(I-option) BCC_A2 HCP_A3(I-option)

Mn-Mo

LIQUID BCC_A2 FCC_A1 CBCC_A12 CUB_A13 HIGH-s

Mn₇Mo₆(ST)

Mn-Ni

LIQUID BCC_A2 FCC_A1 CBCC_A12 CUB_A13

Mn₂Ni(ST) Mn₃Ni(ST) MnNi(ST) MnNi₂(ST) MnNi₃(ST)

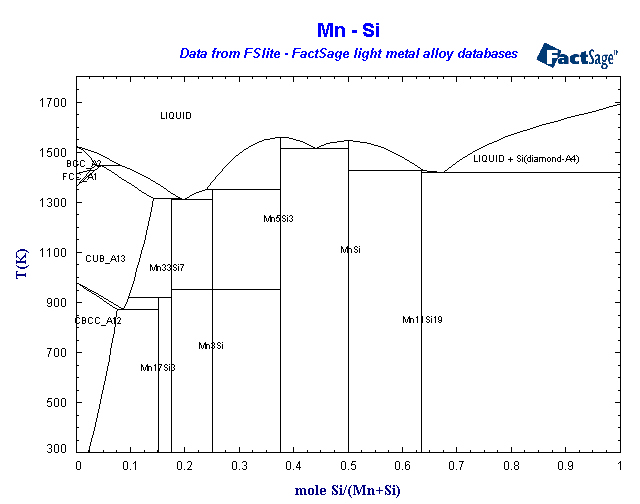

Mn-Si

LIQUID Si(S) BCC_A2 CBCC_A12 CUB_A13

FCC_A1 Mn₁₇Si₃(ST) Mn₃₃Si₇(ST) Mn₃Si(ST) Mn₅Si₃(ST)

Mn₁₁Si₁₉(ST) MnSi(ST)

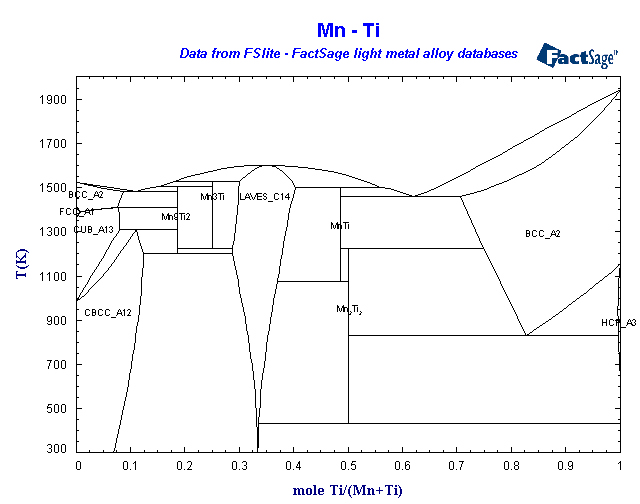

Mn-Ti

LIQUID BCC_A2 CBCC_A12 CUB_A13 FCC_A1 HCP_A3

Mn₃Ti(ST) LAVES_C14 Mn₉Ti₂(ST) MnTi(ST) Mn2Ti2(ST)

Mn-V

LIQUID BCC_A2 FCC_A1 CBCC_A12 CUB_A13 SIGMA

Mn-Y

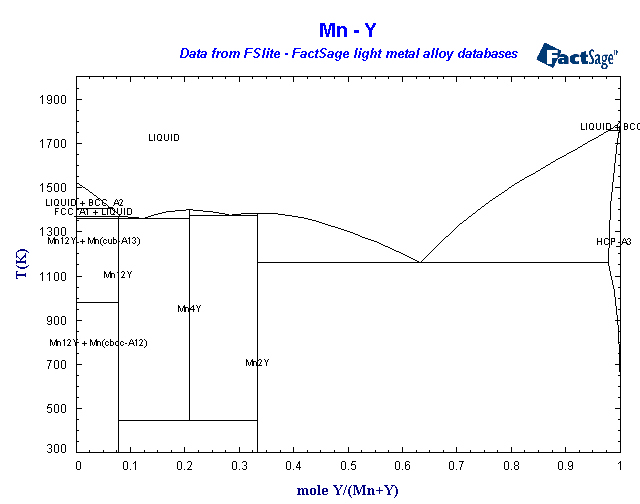

LIQUID BCC_A2 HCP_A3 Mn(S) Mn(S2) Mn(S3)

Mn₂Y(ST) Mn₁₂Y(ST) Mn₄Y(ST)

Mn-Zr

LIQUID BCC_A2 CBCC_A12 CUB_A13 FCC_A1 HCP_A3

MN2ZR

Mo-Nb

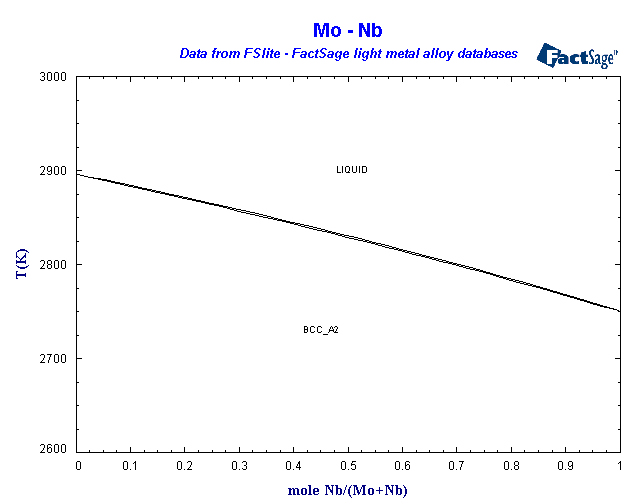

LIQUID BCC_A2

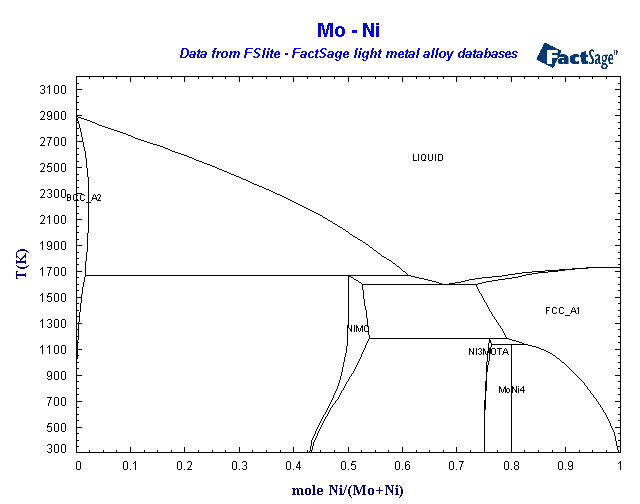

Mo-Ni

LIQUID BCC_A2 FCC_A1 NiMo Ni₃MoTa MoNi₄(ST)

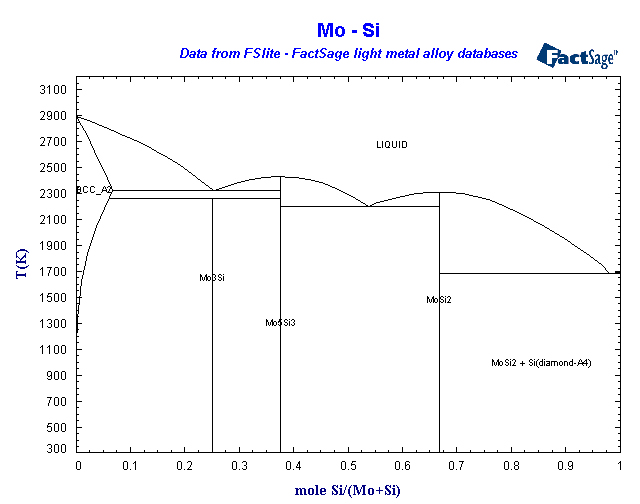

Mo-Si

LIQUID BCC_A2 MoSi₂(ST) Mo₃Si(ST) Mo₅Si₃(ST)

Si(S)

Mo-Ta

LIQUID BCC_A2

Mo-Ti

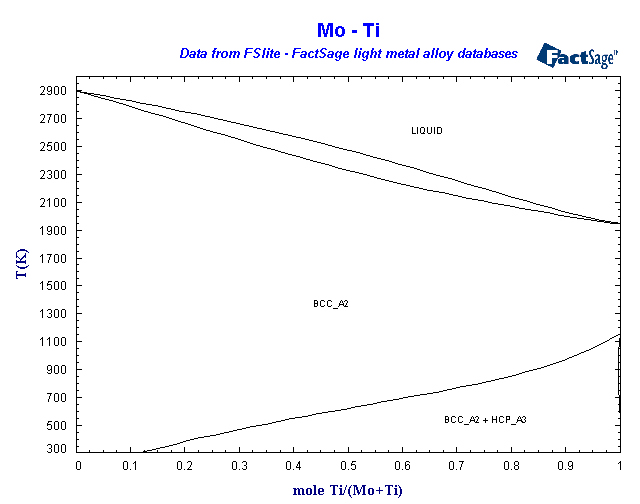

LIQUID BCC_A2 HCP_A3

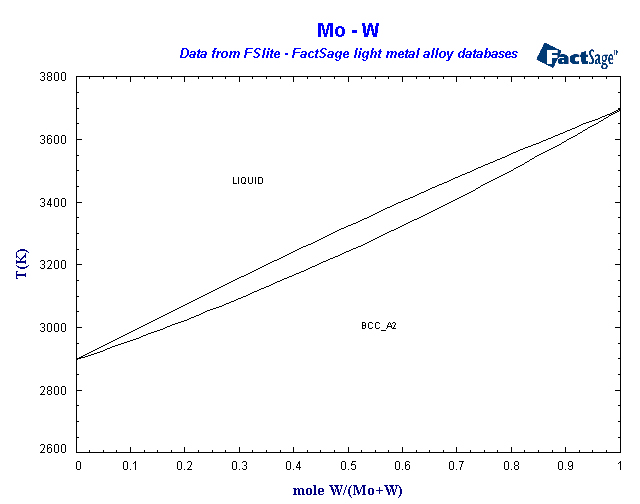

Mo-W

LIQUID BCC_A2

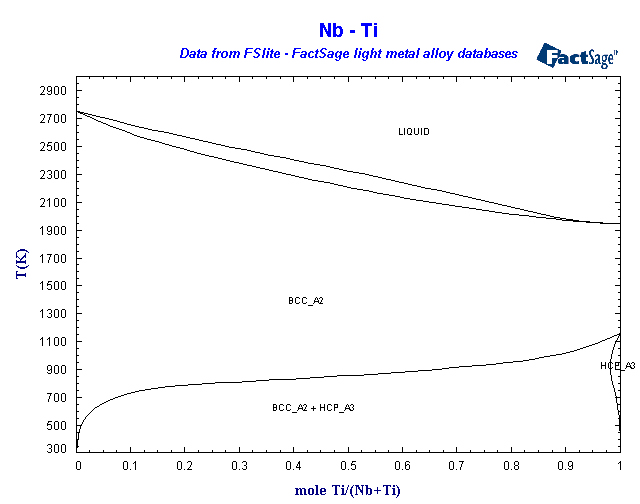

Nb-Ti

LIQUID BCC_A2 HCP_A3

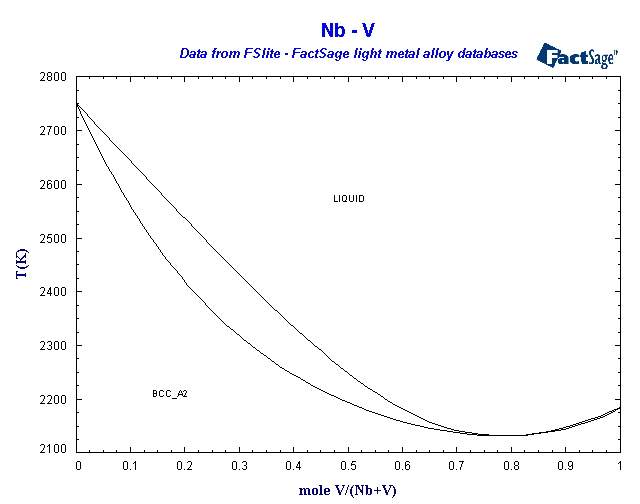

Nb-V

LIQUID BCC_A2

Nb-W

LIQUID BCC_A2

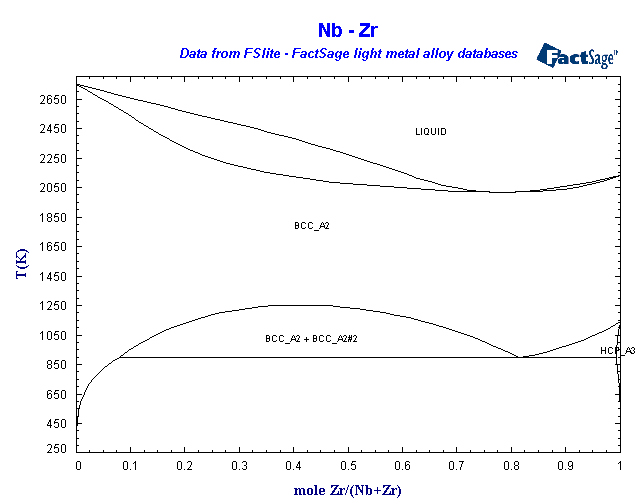

Nb-Zr

LIQUID BCC_A2(I-option) HCP_A3

Ni-Si

LIQUID FCC_A1 TETA L12_FCC(I-option) NiSi(ST)

NiSi₂(ST) Ni₂Si(ST) Ni₃Si(ST) Ni₃Si₂(ST) Ni₅Si₂(ST) Si(S)

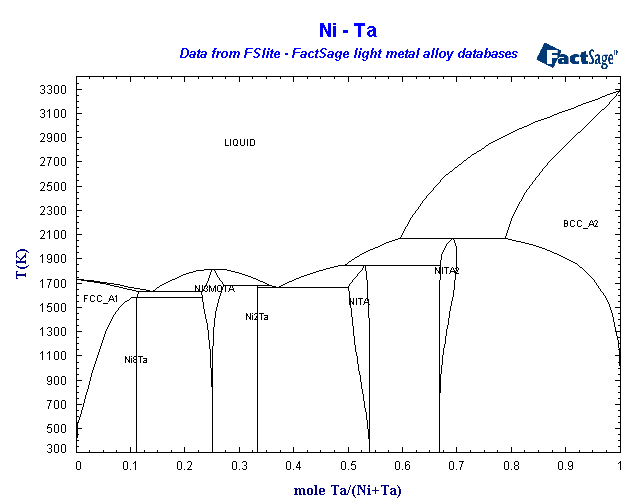

Ni-Ta

LIQUID FCC_A1 BCC_A2 Ni₃Ta NiTa NiTa₂

NI₈TA(ST) NI₂TA(ST)

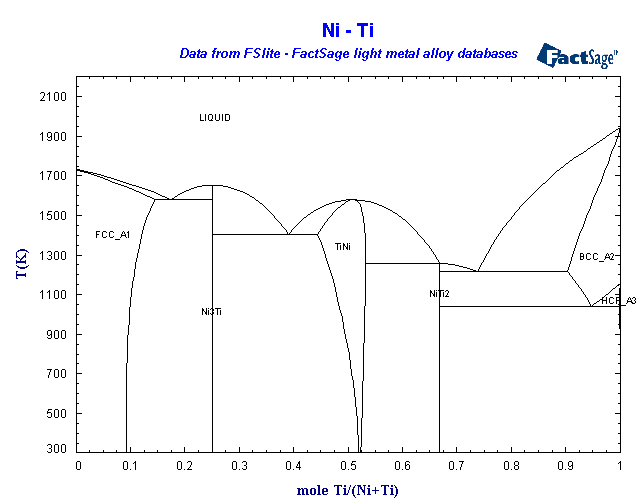

Ni-Ti

LIQUID FCC_A1 BCC_A2 HCP_A3 TiNi Ni₃Ti(ST)

NiTi₂(ST)

Ni-V

LIQUID FCC_A1 BCC_A2 SIGMA Ni₂V(ST) Ni₃V(ST)

Ni₂V₇(ST)

Ni-W

LIQUID BCC_A2 FCC_A1 Ni₄W(ST) NiW(ST) NiW₂(ST)

Ni-Y

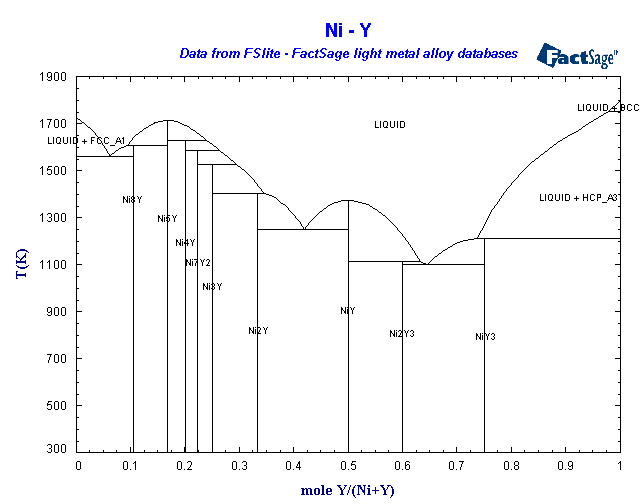

LIQUID FCC_A1 BCC_A2 HCP_A3 NiY(ST) Ni₂Y(ST)

Ni₃Y(ST) Ni₄Y(ST) Ni₅Y(ST) Ni₇Y₂(ST) Ni₁₇Y₂(ST) NiY₃(ST)

Ni₂Y₃(ST)

Ni-Zr

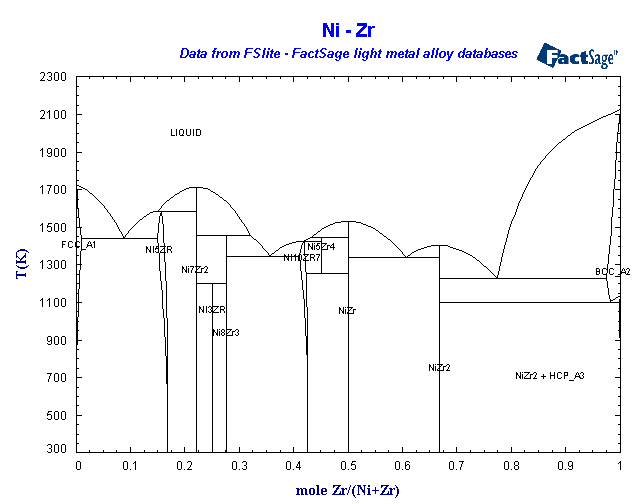

LIQUID FCC_A1 BCC_A2 HCP_A3 Ni₅Zr Ni₃Zr

Ni₁₀Zr₇ Ni₇Zr₂(ST) Ni₃Zr(ST) Ni₈Zr₃(ST) Ni₅Zr₄(ST) NiZr(ST)

NiZr₂(ST)

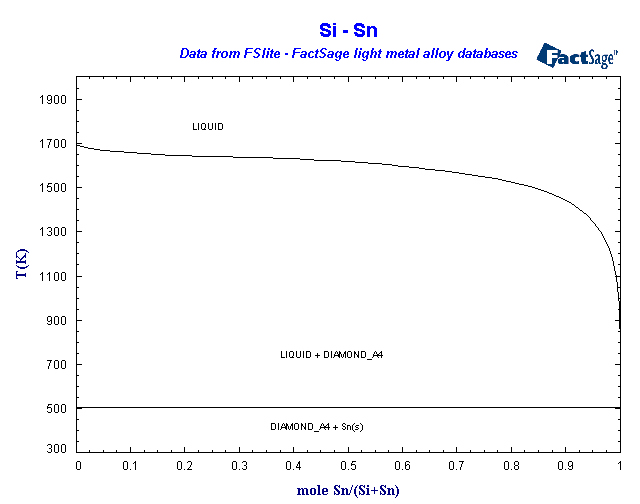

Si-Sn

LIQUID DIAMOND_A4 Sn(S)

Si-Ta – use in temperature range 300 to 3500K only

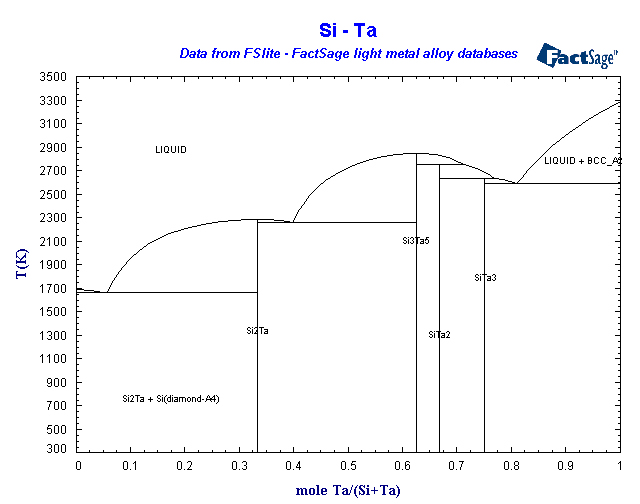

LIQUID BCC_A2 Si(S) Si₂Ta(ST) Si₃Ta₅(ST)

SiTa₂(ST) SiTa₃(ST)

Si-Ti

LIQUID BCC_A2 HCP_A3 DIAMOND_A4 Si₂Ti(ST) Si₃Ti₅(ST)

Si₄Ti₅(ST) SiTi(ST) SiTi₃(ST)

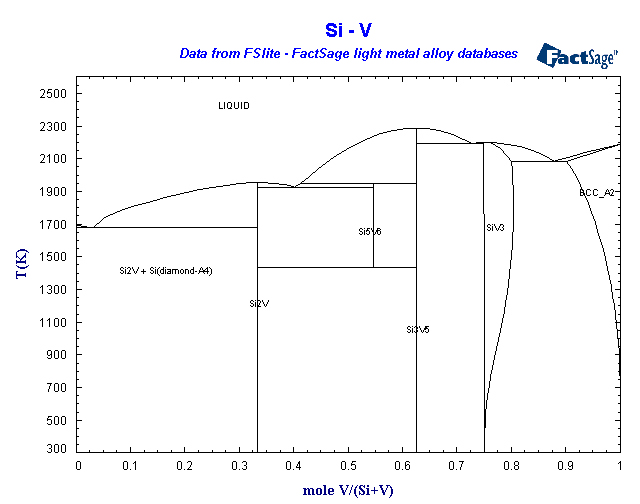

Si-V

LIQUID BCC_A2 Si(S) Si₂V(ST) Si₃V₅(ST)

Si₅V₆(ST) SiV₃

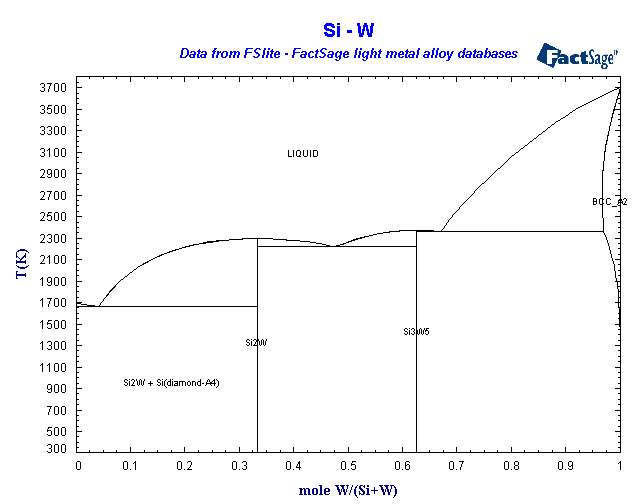

Si-W

LIQUID BCC_A2 Si(S) Si₂W(ST) Si₃W₅(ST)

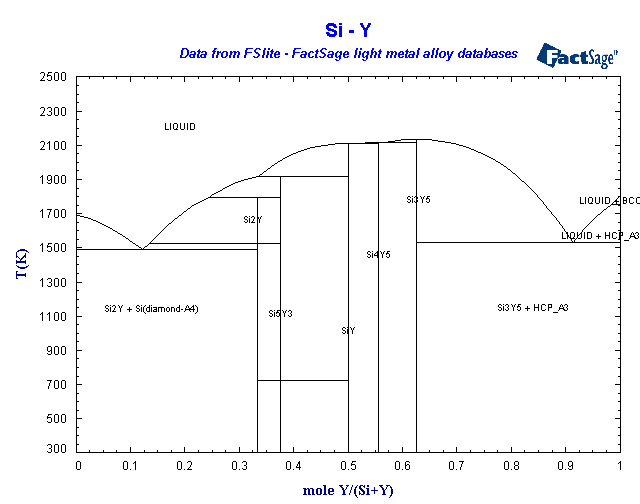

Si-Y

LIQUID BCC_A2 HCP_A3 Si(S) Si₂Y(ST)

Si₅Y₃(ST) SiY(ST) Si₃Y₅(ST) Si₄Y₅(ST)

Si-Zn

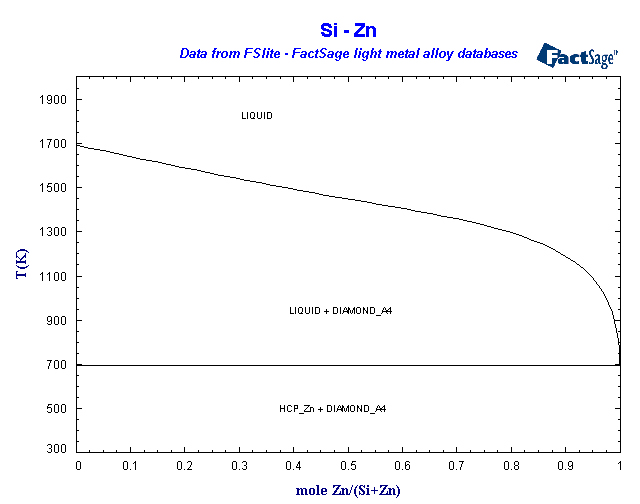

LIQUID DIAMOND_A4 HCP_Zn

Si-Zr

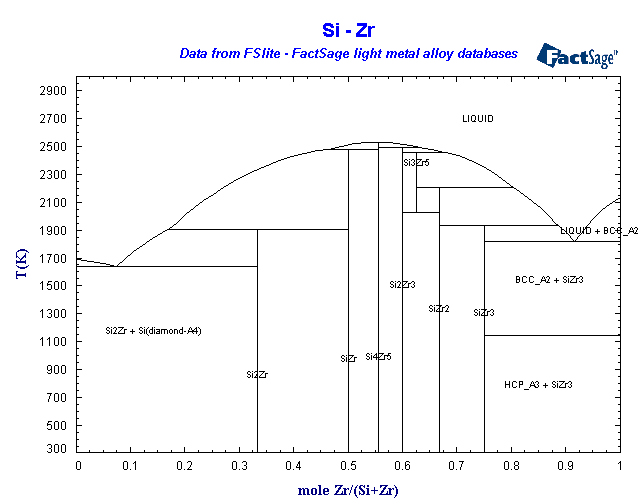

LIQUID Si(S) HCP_A3 BCC_A2 Si₂Zr(ST)

Si₂Zr₃(ST) Si₃Zr₅(ST) Si₄Zr₅(ST) SiZr(ST) SiZr₂(ST) SiZr₃(ST)

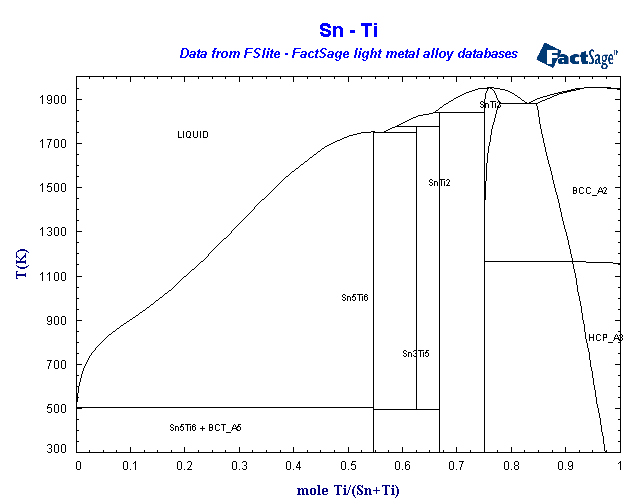

Sn-Ti

LIQUID BCT_A5 HCP_A3 BCC_A2 Sn₅Ti₆(ST) Sn₃Ti₅(ST)

SnTi₂(ST) SnTi₃

Sn-Zn

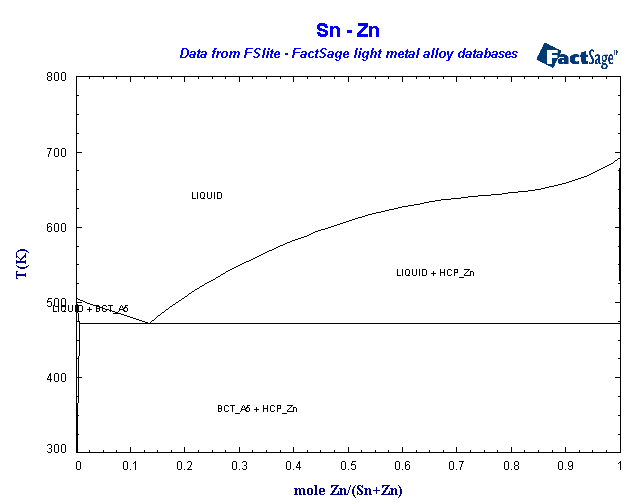

LIQUID BCT_A5 HCP_Zn

Sn-Zr

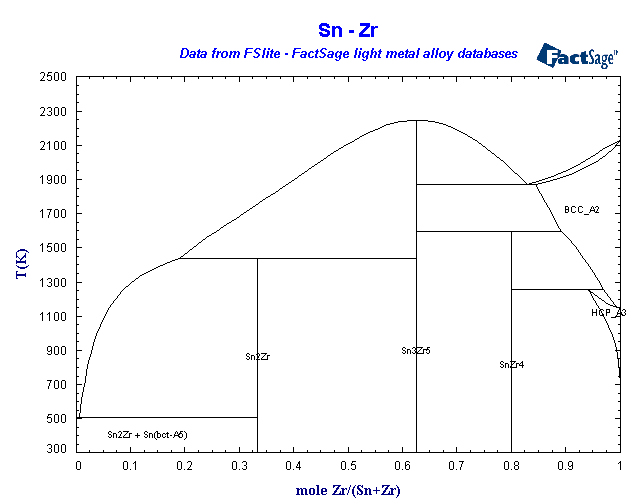

LIQUID Sn(S) HCP_A3 BCC_A2 SnZr₄(ST) Sn₃Zr₅(ST)

Sn₂Zr(ST)

Ta-Ti

LIQUID BCC_A2 HCP_A3

Ta-W

LIQUID BCC_A2

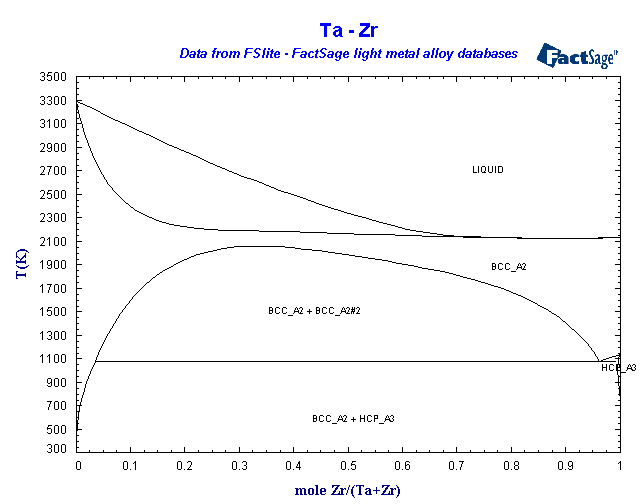

Ta-Zr

LIQUID BCC_A2(I-option) HCP_A3

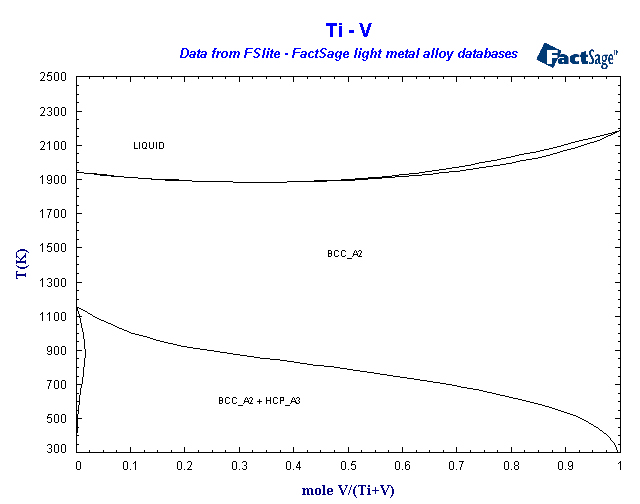

Ti-V

LIQUID BCC_A2 HCP_A3

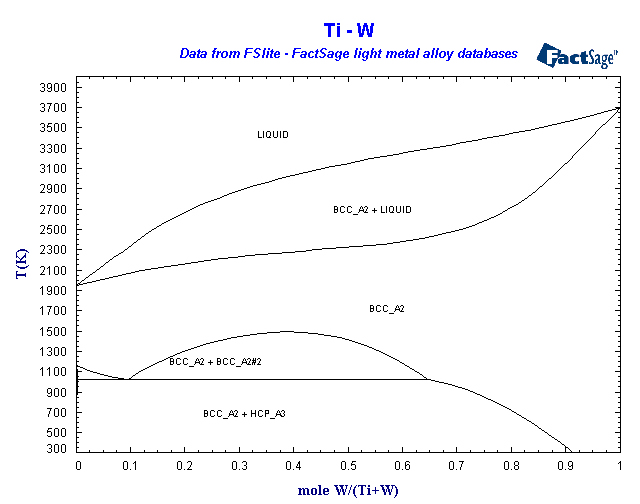

Ti-W

LIQUID BCC_A2(I-option) HCP_A3

Ti-Zr

LIQUID BCC_A2 HCP_A3

V-Zr

LIQUID BCC_A2(I-option) HCP_A3 V₂Zr(ST)

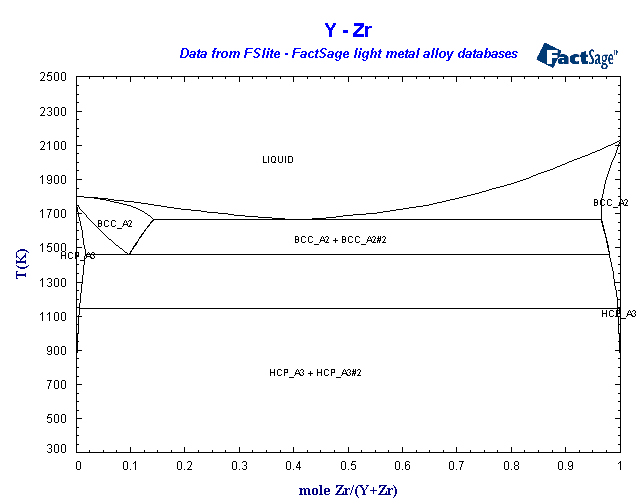

Y-Zr

LIQUID BCC_A2(I-option) HCP_A3(I-option)

Table 3: List of phases for TERNARY systems

Assessed ternary parameters are available only for those phases listed in blue below. Thermodynamic values for other ternary phases listed are obtained from the relevant binaries by application of the particular model used in the database. Some of the tabulated phases are present only in the constituent binary systems.

Beware - if some ternary phases are unknown, or have not been included in the published assessments from which the present data have been selected, incorrect phase equilibria may be calculated.

Phases accompanied by ST in parenthesis indicate a stoichiometric phase. The phase must be selected from the FSlite compound base.

(I-option) – the phase displays a miscibility gap or is an ordered phase; selection with the I-option required.

Comments in red for each system provide a rough guideline with respect to composition ranges covered by the assessed data and hence to which calculations should be restricted.

Al-C-Si

LIQUID FCC_A1 Al₄SiC₄(ST) Al₈SiC₇(ST) (Al,Si)₄C₃

C(S) DIAMOND_A4 SiC(ST)

It is recommended to restrict calculations to alloys for which x_Al > 0.5.

Al-Ce-Nd

LIQUID FCC_A1 BCC_A2 DHCP Al₁₁CeNd₃-H

Al₁₁CeNd₃-L Al₂CeNd Al₃CeNd AlCeNd AlCe₃-H(ST)

AlCe₃-L(ST) AlNd(ST) AlNd₂(ST) AlNd₃(ST)

The data cover the complete ternary composition region

Al-Cu-Li

LIQUID FCC_A1 BCC_A2 AlCu-d AlCu-e AlCu-h(ST)

AlCu-q AlCu-z(ST) AlCu-g(H) AlCu-g(D8₃) or GAMMA_LIA(J) Al₂Li₃(ST)

Al₄Li₉(ST) AL2CULI(ST) AL5CULI3(ST) AL15CU8LI2(ST) AL57CU11LI32(ST)

It is recommended to restrict calculations to alloys for which x_Al > 0.5.

Al-Cu-Mg

LIQUID FCC_A1 HCP_A3 LAVES_C14 LAVES_C15

LAVES_C36 BCC_A2 TAU Q-Phase(ST) S-Phase(ST)

V-Phase(ST) AlCu-d AlCu-e AlCu-h(ST) AlCu-q AlCu-z(ST)

AlCu-g(H) AlCu-g(D8₃) or GAMMA_LIA(J) Al₃₀Mg₂₃(ST) Al₁₄₀Mg₈₉(ST) AlMg-g

CuMg₂(ST) AL2CUMG(ST) AL7CU3MG6(ST) AL5CU6MG2(ST)

The data cover the complete ternary composition region.

Al-Cu-Mn

LIQUID FCC_A1 HCP_A3 CBCC_A12 BCC_A2 CUB_A13

Al₇CuMn₂(ST) Al₁₁Cu₅Mn₃(ST) AlCu₃Mn₂(ST) Al₈Mn₅-D8₁₀ AlCu-g(D8₃) AlCu-d

AlCu-e AlCu-h(ST) AlCu-q AlCu-z(ST) AlCu-g(H)

GAMMA_LIA(J) Al₁₁Mn₄(ST) Al₁₂Mn(ST) Al₄Mn(ST) Al₆Mn(ST)

Calculations should be restricted to alloys for which x_Al < 0.5 due to non-availability of assessed data for the phase Al₂₁Cu₂Mn₃.

Al-Cu-Si

LIQUID FCC_A1 BCC_A2 HCP_A3 DIAMOND_A4 AlCu-d

AlCu-e AlCu-h(ST) AlCu-q AlCu-z(ST) AlCu-g(H) AlCu-g(D8₃) or GAMMA_LIA(J) Cu₁₅Si₄(ST) Cu₃₃Si₇(ST) Cu₁₉Si₆(ST) Cu₉Si₂(ST)

It is recommended to restrict calculations to alloys for which x_Al > 0.6.

Al-Cu-Zn

LIQUID FCC_A1 BCC_A2(I-option) HCP_A3 ALCUZN_TAU GAMMA_H

HCP_Zn AlCu-d AlCu-e AlCu-h(ST) AlCu-q AlCu-z(ST)

AlCu-g(H) AlCu-g(D8₃) or GAMMA_LIA(J) BCC_B2(I-option)

It is recommended to restrict calculations to alloys for which x_Al > 0.6.

Al-Fe-Mn

LIQUID FCC_A1 BCC_A2 BCC_B2(I-option) CBCC_A12 CUB_A13

Al₁₃Fe₄ Al₂Fe Al₅Fe₂Al₅Fe₄ Al11Mn4 Al₆Mn

Al₄Mn Al₁₂Mn Al₈Mn₅-D8₁₀Al₆₁Fe₃₁(ST)

It is recommended to restrict calculations to alloys for which x_Mn < 0.25 and x_Fe < 0.25.

Al-Fe-Si

LIQUID FCC_A1 BCC_A2 BCC_B2 DIAMOND_A4

AlFeSi-a Al₂FeSi(ST) Al₃FeSi(ST) Al₂Fe₂Si(ST) Al₁₄Fe₃Si₃(ST)

Al₁₁Fe₃Si₆(ST) Al₁₃Fe₄FeSi(ST) Fe₂Si(ST) Fe₅Si₃(ST) FeSi₂(ST)

Fe₃Si₇(ST) Al₆₁Fe₃₁(ST) Al₅Fe₂(ST) Al₅Fe₄

The data cover the complete ternary composition region.

Al-Fe-Zn

LIQUID FCC_A1 BCC_A2(I-option) BCC_B2(I-option) HCP_A3 HCP_Zn

Al₅Fe₂Al₁₃Fe₄Al₆₁Fe₃₁(ST) Al₅Fe₄FeZn4

FeZn_DELTA FeZn_ZETA D82_FeZn_GAMMA

It is recommended to restrict calculations to alloys for which x_Al > 0.5.

Al-Li-Mg

LIQUID FCC_A1 BCC_A2 HCP_A3 AlLiMg-b Al₁₂Mg₁₇

Al₂Li₃(ST) Al₄Li₉(ST) Al₃₀Mg₂₃(ST) Al₁₄₀Mg₈₉(ST) AlMg-g AlLi Al₅₃Li₃₃Mg₁₄(ST)

The data cover the complete ternary composition region.

Al-Mg-Mn

LIQUID(I-option) FCC_A1 BCC_A2 HCP_A3 CBCC_A12 CUB_A13

Al₁₈Mg₃Mn₂(ST) Al₃₀Mg₂₃(ST) Al₁₄₀Mg₈₉(ST) AlMg-g Al₁₁Mn₄(ST) Al₁₂Mn(ST)

Al₄Mn(ST) Al₆Mn(ST) Al₈Mn₅-D8₁₀

It is recommended to restrict calculations to alloys for which x_Al > 0.9.

Al-Mg-Si

LIQUID FCC_A1 HCP_A3 DIAMOND_A4 Al₃₀Mg₂₃(ST)

Al₁₄₀Mg₈₉(ST) AlMg-g Mg₂Si(ST)

The data cover the complete ternary composition region.

Al-Mg-Zn

LIQUID FCC_A1 HCP_A3 HCP_Zn TAU V-PHA

AlMg-g AlMg-b LAVES_C14 Mg₂Zn₃ Mg₁₂Zn₁₃(ST)

Mg₅₁Zn₂₀(ST) Mg₂Zn₁₁

The data cover the complete ternary composition region.

Al-Mn-Si

LIQUID FCC_A1 BCC_A2 CUB_A13 CBCC_A12 HCP_A3

DIAMOND_A4 Al₈Mn₅-D8₁₀AlMnSi-a AlMnSi-b Al₂MnSi₃(ST) Al₁₁Mn₄(ST)

Al₁₂Mn(ST) Al₄Mn(ST) Al₆Mn(ST) Mn₁₇Si₃(ST) Mn₃₃Si₇(ST) Mn₃Si(ST)

Mn₅Si₃(ST) Mn₁₁Si₁₉(ST)

It is recommended to restrict calculations to alloys for which x_Si< 0.2 and x_Mn < 0.05.

Al-Mo-Ti

LIQUID BCC_A2(I-option) FCC_A1 HCP_A3 BCC_B2(I-option) AlTi-L1₀

AlM-D0₁₉ Al3M-D0₂₂Al₁₂Mo(ST) Al₄Mo(ST) Al₅Mo(ST) Al₅Mo₃(ST)

Al₈Mo₃(ST) AlMo₃(ST) AlMo

It is recommended to restrict calculations to alloys for which x_Al > 0.7.

Al-Nb-Ti

LIQUID BCC_A2(I-option) FCC_A1 HCP_A3 BCC_B2(I-option) AlTi-L1₀

AlM-D0₁₉(I-option) Al3M-D0₂₂ SIGMA AlNb₃-A15 Al₃Nb(ST) Cr₃Si-A15

Al₁₇Ti₈(ST) Al₂Ti(ST) AlTi-L1₀(I-option)

The data cover the complete ternary composition region.

Al-Si-Zn

LIQUID FCC_A1(I-option) HCP_Zn DIAMOND_A4

The data cover the complete ternary composition region.

Al-Sn-Zn

LIQUID FCC_A1(I-option) HCP_Zn BCT_A5 HCP_A3

The data cover the complete ternary composition region.

Al-Sn-Zr

LIQUID FCC_A1 BCC_A2 BCT_A5 HCP_A3

AlSn₂Zr₅(ST) Al₂Zr(ST) Al₂Zr₃(ST) Al₃Zr(ST) Al₃Zr₂(ST) Al₃Zr₅(ST)

Al₄Zr₅(ST) AlZr(ST) AlZr₂(ST) AlZr₃(ST) SnZr₄(ST) Sn₃Zr₅(ST)

Sn₂Zr(ST)

It is recommended to restrict calculations to alloys for which x_Al > 0.75.

Al-Ta-Ti

LIQUID BCC_A2(I-option) FCC_A1 HCP_A3 BCC_B2(I-option) Al3M-D0₂₂

SIGMA Al₃Ta(ST) Al₃Ta₂-L(ST) Al₃Ta₂-H(ST) Al₁₇Ti₈(ST) Al₂Ti(ST)

AlTi-L1₀(I-option) AlM-D0₁₉(I-option)

The data cover the complete ternary composition region.

Al-Ti-V

LIQUID BCC_A2 FCC_A1 BCC_B2(I-option) HCP_A3 Al3M-D0₂₂

AlTi-L1₀(I-option) AlM-D0₁₉(I-option)Al₁₇Ti₈(ST) Al₂Ti(ST) Al₁₀V(ST) Al₂₃V₄(ST)

Al₇V(ST) Al₈V₅(ST)

The data cover the complete ternary composition region.

Al-Ti-W

LIQUID BCC_A2(I-option) FCC_A1 HCP_A3 BCC_B2(I-option) Al₁₇Ti₈(ST)

Al₂Ti(ST) Al3M-D0₂₂ AlTi-L1₀(I-option) AlM-D0₁₉(I-option)Al₁₂W(ST) Al₄W(ST)

Al₅W(ST) Al₇₇W₂₃(ST) Al₇W₃(ST) Al₂W(ST)

The data cover the complete ternary composition region.

B-C-Hf

LIQUID BCC_A2 HCP_A3 b-RHOMBO-B GRAPHITE B₄C

BHf(ST) B₂Hf(ST)

The data provide a reasonable representation of the complete ternary composition region.

B-Hf-Ti

LIQUID BCC_A2 HCP_A3 b-RHOMBO-B B₂M B₄M₃

The data cover the complete ternary composition region.

Cr-Cu-Zr

LIQUID FCC_A1 BCC_A2 HCP_A3 LAVES_C14

LAVES_C15 LAVES_C36 Cu₅Zr(ST) Cu₅₁Zr₁₄(ST) Cu₁₀Zr₇(ST) CuZr(ST)

CuZr₂(ST) Cu₈Zr₃(ST)

The data cover the complete ternary composition region: caution - no ternary compound information

Cu-Mg-Ni

LIQUID FCC_A1(I-option) HCP_A3 LAVES_C15 LAVES_C36 CuMg₂(ST) Mg₂Ni(ST)

It is recommended to restrict calculations to alloys for which x_Mg > 0.6.

Cu-Mg-Si

LIQUID FCC_A1 BCC_A2 HCP_A3 LAVES_C15 CuMg₂(ST)

Cu₃Mg₂Si(ST) Cu₁₆Mg₆Si₇(ST) DIAMOND_A4(ST) Cu₁₅Si₄(ST) Cu₃₃Si₇(ST) Cu₁₉Si₆(ST)

Cu₉Si₂(ST) Mg₂Si(ST)

The data cover the complete ternary composition region.

Cu-Mg-Y

LIQUID FCC_A1 BCC_A2 HCP_A3 LAVES_C15 CuMg₂(ST)

Cu₆Y Cu₄Y(ST) Cu₇Y₂(ST) Cu₂Y(ST) CuY(ST) MgY

Mg₂₄Y₅ Mg₂Y(ST)

The data cover the complete ternary composition region, but use with caution

Cu-Mg-Zn

LIQUID FCC_A1 BCC_A2(I-option) BCC_B2(I-option) HCP_A3 HCP_Zn

LAVES_C14 LAVES_C15 LAVES_C36 CuZn-g MgZn Mg₂Zn₃

Mg₂Zn₁₁CuMg₂(ST) Mg₂Zn₃ Mg₁₂Zn₁₃(ST) Mg₅₁Zn₂₀(ST)

Mg₂Zn₁₁(ST)

The data cover the complete ternary composition region.

Cu-Sn-Zn

LIQUID FCC_A1 BCC_A2 HCP_ZN BCT_A5 HCP_A3

CuZn-g Cu₁₀Sn₃-z(ST) Cu₃Sn-e(ST) Cu₄₁Sn-d(ST) Cu₆Sn₅-h(ST)

CuSn-g(D0₃) Cu₁₂Sn₁₀-h’(ST)

The data cover the complete ternary composition region: caution - no ternary compound information

Table 4: List of phases for QUATERNARY systems

Assessed quaternary parameters are available only for those phases listed in blue below.

Thermodynamic values for other quaternary phases listed are obtained from the relevant binaries and ternaries by application of the particular model used in the database. Some of the tabulated phases are present only in the constituent binary and ternary systems.

Beware - if some ternary or quaternary phases are unknown, or have not been included in the published assessments from which the present data have been selected, incorrect phase equilibria may be calculated.

Phases accompanied by ST in parenthesis indicate a stoichiometric phase. The phase must be selected from the FSlite compound base.

(I-option) – the phase displays a miscibility gap or is an ordered phase; selection with the I-option required.

Al-Cu-Mg-Zn

LIQUID FCC_A1 BCC_A2(I-option) HCP_A3 HCP_Zn AlMgZn-t

AlMg-b AlMg-e AlMg-g AlCu-d AlCu-e AlCu-h(ST)

AlCu-q AlCu-z(ST) AlCu-g(H) AlCu-g(D8₃) LAVES_C15

Q-Phase(ST) S-Phase(ST) V-Phase(ST) Al₃₀Mg₂₃(ST) Al₁₄₀Mg₈₉(ST) CuMg₂(ST)

AlCuZn_TAU GAMMA_H BCC_B2(I-option) Mg₂Zn₃Y(ST) Mg₁₂Zn₁₃(ST)

Mg₅₁Zn₂₀(ST) Mg₂Zn₁₁(ST) LAVES_C14 LAVES_C15 LAVES_C36 CuZn-g

MgZn Mg₅₁Zn₂₀(ST) Mg₂Zn₁₁(ST)

The data cover the complete quaternary composition region.

Al-Fe-Mg-Si

LIQUID(I-option) FCC_A1 BCC_A2 HCP_A3 DIAMOND_A4

BCC_B2(I-option) Al₈FeMg₃Si₆(ST) Al₁₃Fe₄Al₆₁Fe₃₁(ST) Al₅Fe₂(ST) Al₅Fe₄

Al₃₀Mg₂₃(ST) Al₁₄₀Mg₈₉(ST) AlMg-g AlFeSi-a AlFeSi-b(ST)

AlFeSi-d(ST) AlFeSi-g(ST) AlFeSi-t₁(ST) AlFeSi-t₃(ST)Mg₂Si(ST) FeSi(ST)

Fe₂Si(ST) Fe₅Si₃(ST) FeSi₂(ST) Fe₃Si₇(ST) Al₁₃Fe₄Al₆₁Fe₃₁(ST)

Al₅Fe₂(ST)

The data cover the complete quaternary composition region.

Al-Fe-Mn-Si

LIQUID FCC_A1 BCC_A2 HCP_A3 DIAMOND_A4 CUB_A13

Al₉₆Fe₁₀Mn₁₄Si₁₈(ST) BCC_B2(I-option) CBCC_A12 Al₁₃Fe₄ Al₂Fe

Al₅Fe₂(ST)Al₅Fe₄ Al₆Mn(ST) Al₄Mn(ST) Al₈Mn₅-D8₁₀Al₆₁Fe₃₁(ST)

AlFeSi-a AlFeSi-b(ST) AlFeSi-d(ST) AlFeSi-g(ST) AlFeSi-t₁(ST)

AlFeSi-t₃(ST)FeSi(ST) Fe₂Si(ST) Fe₅Si₃(ST) FeSi₂(ST) Fe₃Si₇(ST)

AlMnSi-a AlMnSi-b AlMnSi-d(ST) Al₁₁Mn₄(ST) Al₁₂Mn(ST) Mn₁₇Si₃(ST)

Mn₃₃Si₇(ST) Mn₃Si(ST) Mn₅Si₃(ST) Mn₁₁Si₁₉(ST)

It is recommended to restrict calculations to alloys for which x_Si< 0.2, x_Fe< 0.1 and xMn < 0.05.
