SGTE BINARY free binary alloy database

List of systems and phases

The following tables summarise the contents of the SGTE BINARY free binary alloy database in terms of the systems and phases it includes. The listings assist in phase selection for particular calculations by providing

- A LIST OF all the unary AND binary SYSTEMS WHICH HAVE BEEN ASSESSED

- A LIST OF ALL ASSESSED phases IN EACH OF THE SYSTEMS

- ASSiSTANCE WITH PHASE SELECTION

The third table lists the literature references associated with each binary system.

Phase diagrams have been calculated for all the binary systems using the assessed parameters contained in the database. The diagram for a particular binary system can be viewed by clicking on the system as listed in Table 2 below. The diagrams contain the names of the stable phases in each system and thus provide guidance in phase selection.

(N.B. While most of the calculated binary phase diagrams will be identical to those calculated using the new SGTE (revised 2004) Solution Database, there may be some small differences in one or two systems due to inclusion of updated assessments for certain binary systems in the BINARY database).

Please note that this database is intended for calculation of phase equilibria in BINARY systems only. The database does not contain any ternary model parameters. The database can NOT be used for calculations in ternary and higher-order systems, as this will almost certainly result in totally incorrect results.

The phases listed for the binary systems may be solution phases or stoichiometric intermetallic compound phases (ST).

Use of the FactSage module VIEW DATA with the BINARY compound and solution databases allows inspection of a phase listing for a defined combination of elements.

When searching for a particular system in the present three lists, use alphabetical order of the elements.

Table 1: List of phases for UNARY systems

LIQUID FCC_A1

LIQUID BCC_A2 DHCP FCC_A1

LIQUID RHOMBOHEDRAL_A7

LIQUID FCC_A1

LIQUID BETA_RHOMBO_B

LIQUID BCC_A2

LIQUID BCC_A2 HCP_A3

LIQUID RHOMBOHEDRAL_A7

LIQUID GRAPHITE

LIQUID FCC_A1 BCC_A2

LIQUID HCP_A3

LIQUID BCC_A2 FCC_A1

LIQUID FCC_A1 HCP_A3

LIQUID BCC_A2

LIQUID FCC_A1

LIQUID HCP_A3 BCC_A2

LIQUID HCP_A3

LIQUID BCC_A2

LIQUID BCC_A2 FCC_A1

LIQUID ORTHORHOMBIC_CMCA

LIQUID BCC_A2 HCP_A3

LIQUID DIAMOND_A4

IONIC H2_GAS

LIQUID BCC_A2 HCP_A3

LIQUID RHOMBOHEDRAL_A10

LIQUID HCP_A3

LIQUID TETRAGONAL_A6

LIQUID FCC_A1

LIQUID BCC_A2

LIQUID BCC_A2 DHCP FCC_A1

LIQUID BCC_A2

LIQUID HCP_A3

LIQUID BCC_A2 CBCC_A12 CUB_A13 FCC_A1

LIQUID BCC_A2

LIQUID BCC_A2 DHCP

LIQUID FCC_A1

LIQUID BCC_A2 ORTHO_AC TETRAG_AD

IONIC O2_GAS

LIQUID HCP_A3

LIQUID RED_P

LIQUID BCC_A2 BCT_A5

LIQUID FCC_A1

LIQUID BCC_A2 DHCP

LIQUID FCC_A1

LIQUID BCC_A2 FCC_A1 ORTHORHOMBIC

LIQUID BCC_A2

LIQUID HCP_A3

LIQUID FCC_A1

LIQUID HCP_A3

LIQUID FCC_A1 FC_ORTHORHOMBIC MONOCLINIC BCC_A2

LIQUID RHOMBOHEDRAL_A7

LIQUID BCC_A2 HCP_A3

LIQUID HEXAGONAL_A8

LIQUID DIAMOND_A4

LIQUID BCC_A2 RHOMBOHEDRAL_A7

LIQUID BCT_A5

LIQUID FCC_A1

LIQUID BCC_A2

LIQUID BCC_A2 HCP_A3

LIQUID HCP_A3

LIQUID HEXAGONAL_A8

LIQUID BCC_A2 FCC_A1

LIQUID BCC_A2 HCP_A3

LIQUID HCP_A3

LIQUID BCC_A2 ORTHORHOMBIC_A20 TETRAGONAL_U

LIQUID BCC_A2

LIQUID BCC_A2 HCP_A3

LIQUID BCC_A2 FCC_A1

LIQUID HCP_ZN

LIQUID BCC_A2

==================================================================================

Table 2: List of phases for BINARY systems

Complete assessments are available for the systems listed below.

Click on the system name to view the stable phase diagram calculated with the stored parameters.

Phases accompanied by ST in parenthesis indicate a stoichiometric phase. These phases must be selected from the BINARY compound base.

(I-option) – the phase displays a miscibility gap or is an ordered phase; selection with the I-option required.

(J-option) – the phase displays 2 miscibility gaps or special ordering effects and must be selected with the J-option.

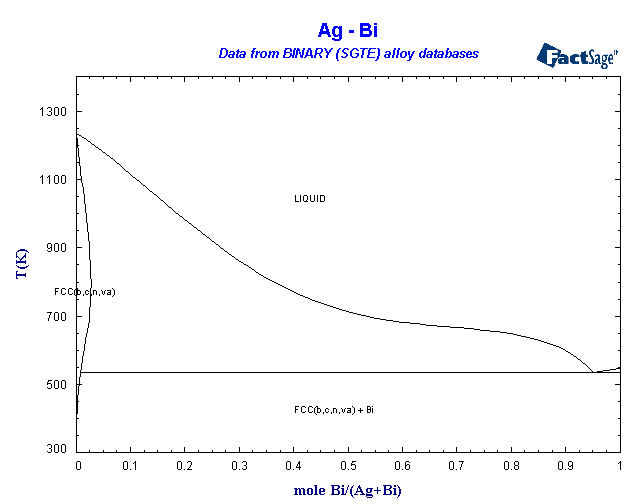

Ag-Bi

LIQUID FCC_A1 RHOMBOHEDRAL_A7(ST)

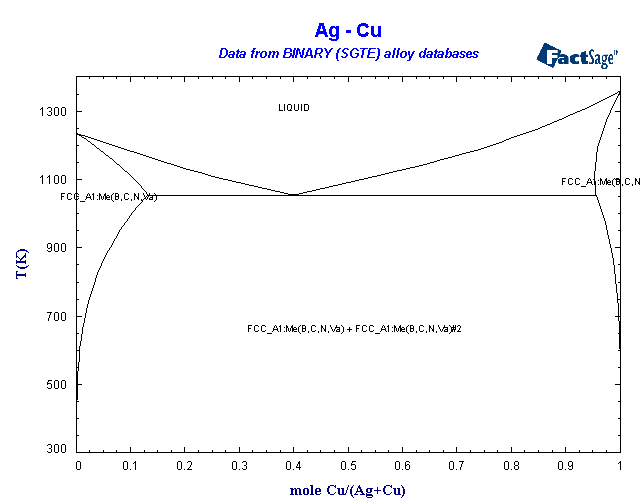

Ag-Cu

LIQUID FCC_A1(I-option)

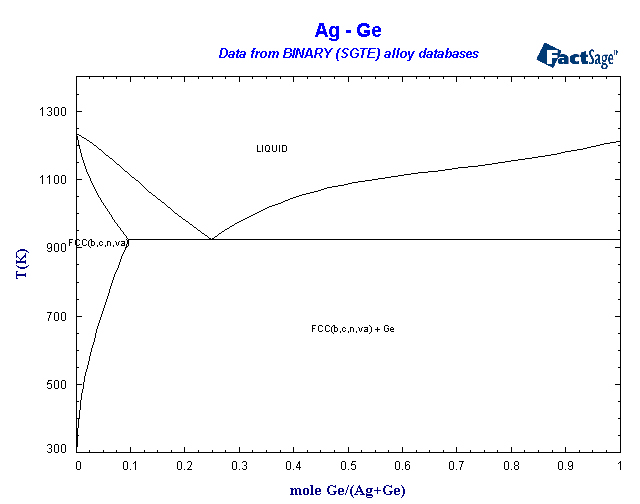

Ag-Ge

LIQUID FCC_A1 DIAMOND_A4(ST)

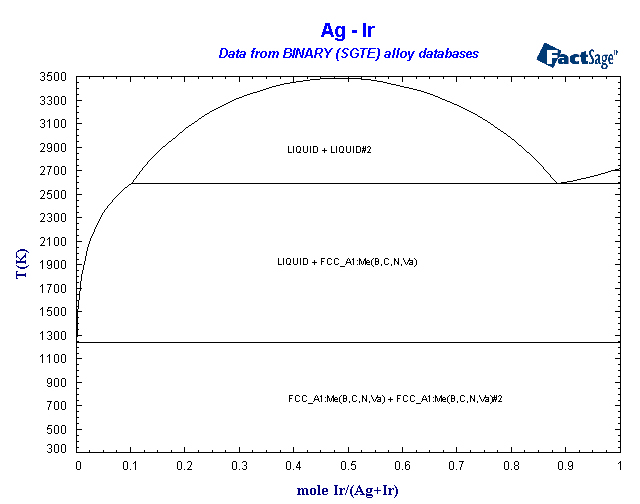

Ag-Ir

LIQUID(J-option) FCC_A1(J-option)

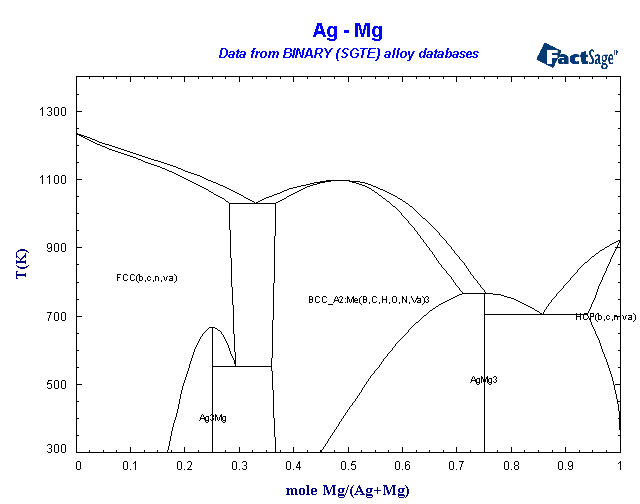

Ag-Mg

LIQUID FCC_A1 BCC_A2 HCP_A3 AGMG3(ST)

AG3MG(ST)

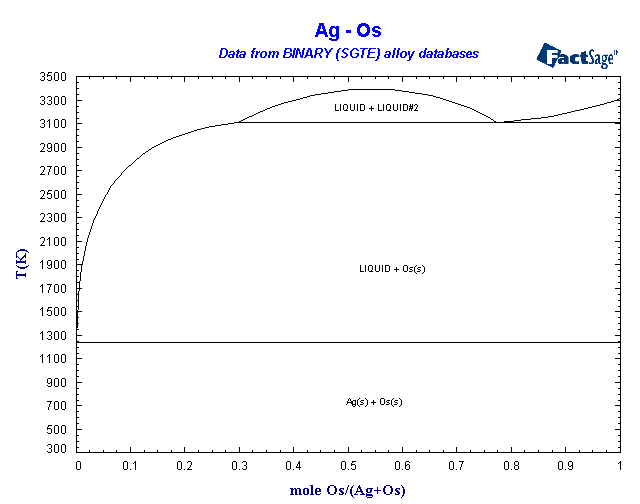

Ag-Os

LIQUID(I-option) FCC_A1 HCP_A3

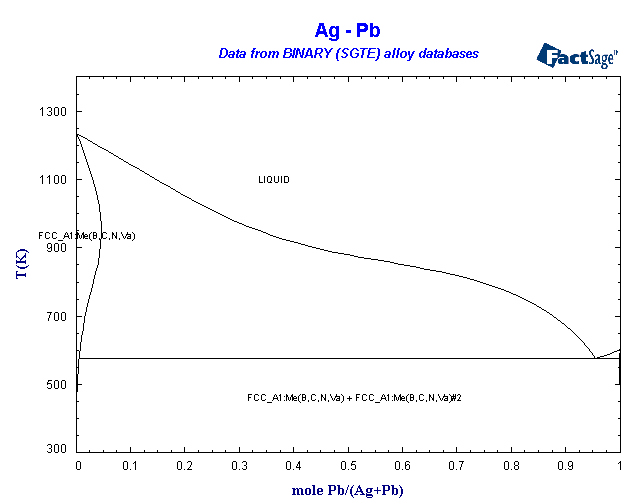

Ag-Pb

LIQUID FCC_A1(I-option)

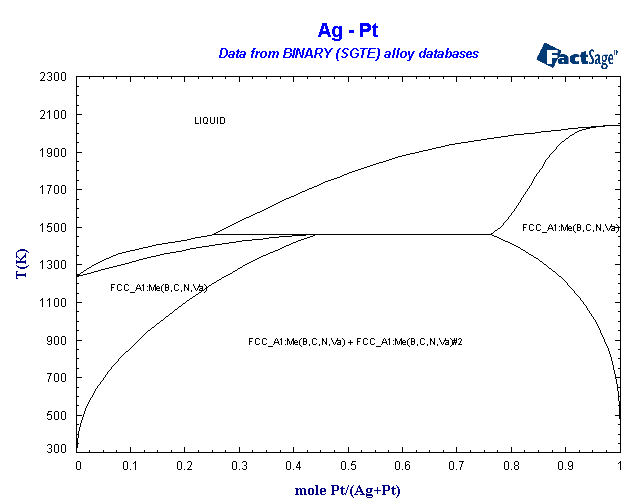

Ag-Pt

LIQUID FCC_A1(I-option)

Ag-Sb

LIQUID FCC_A1 HCP_A3 RHOMBOHEDRAL_A7(ST)

AgSb_ORTHO

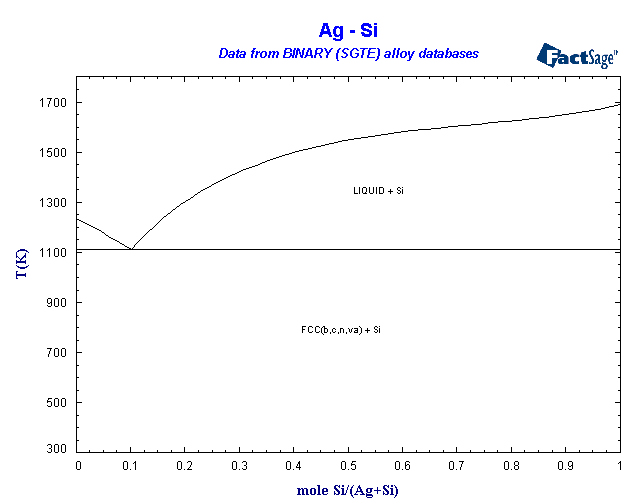

Ag-Si

LIQUID FCC_A1 DIAMOND_A4(ST)

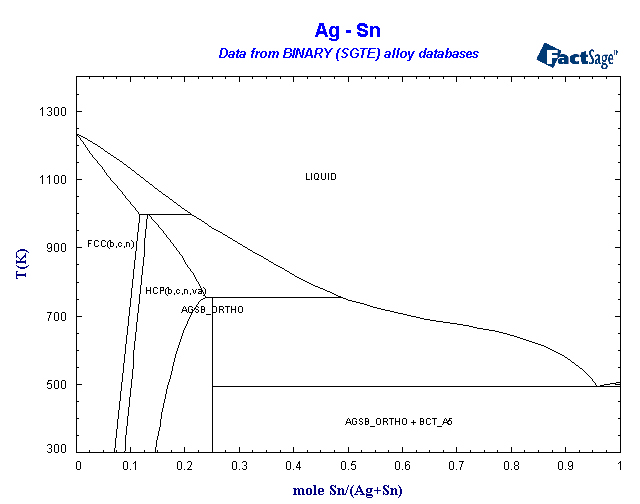

Ag-Sn

LIQUID FCC_A1 HCP_A3 BCT_A5 AgSb_ORTHO

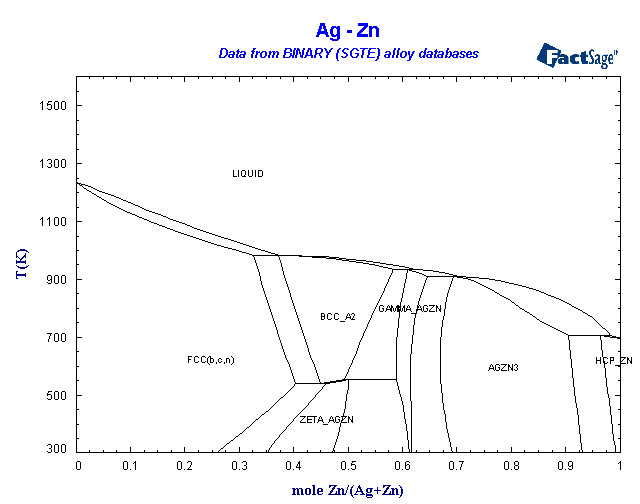

Ag-Zn

LIQUID FCC_A1 HCP_ZN BCC_A2 AgZn3

AGZN_ZETA AGZN_GAMMA

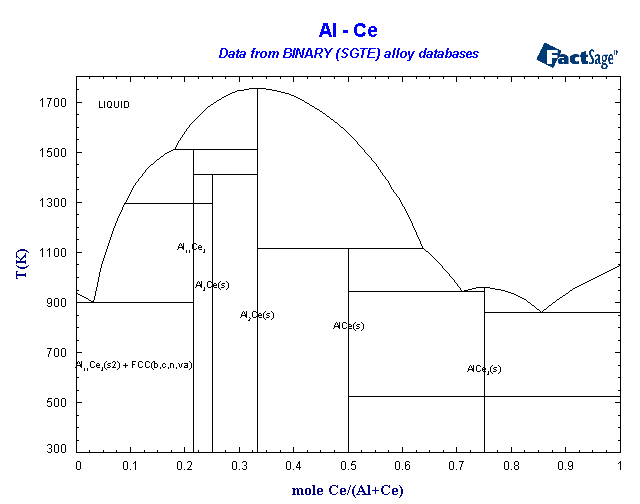

Al-Ce

LIQUID FCC_A1 BCC_A2 AL11CE3-H(ST) AL3CE(ST)

AL2CE(ST) ALCE(ST) ALCE3-H(ST) ALCE3-L(ST)

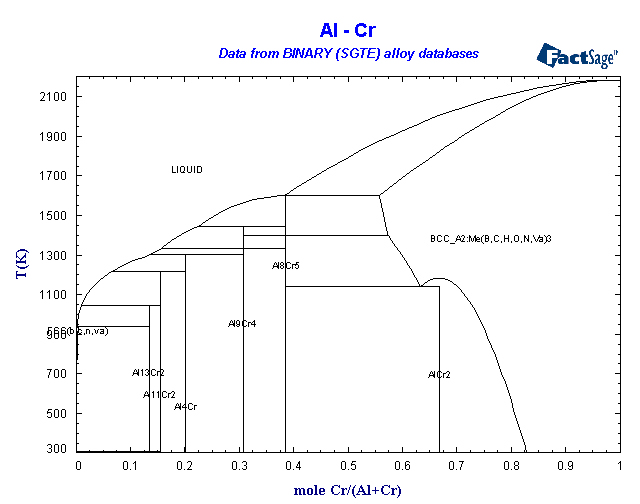

Al-Cr

LIQUID BCC_A2 FCC_A1 AL11CR2(ST) AL13CR2(ST)

AL4CR(ST) AL8CR5(ST) AL9CR4_H(ST) AL9CR4_L(ST) ALCR2(ST)

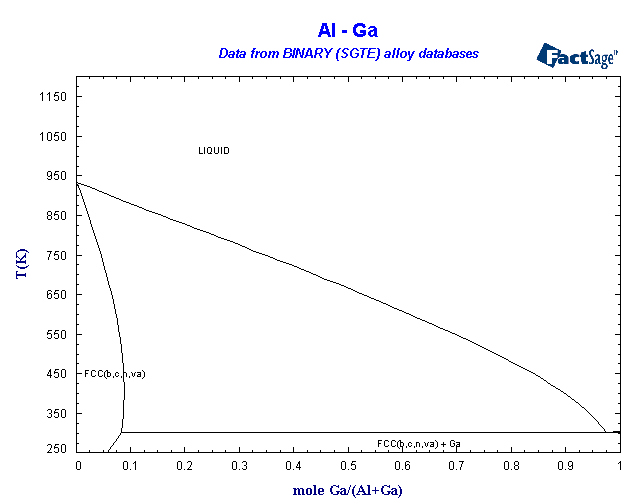

Al-Ga

LIQUID FCC_A1 ORTHORHOMBIC_CMCA(ST)

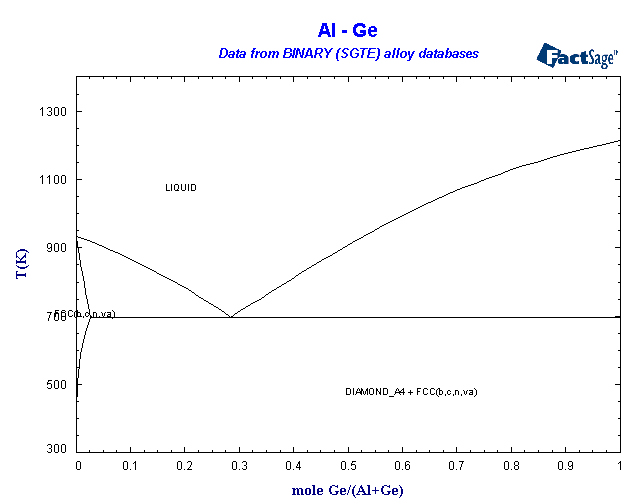

Al-Ge

LIQUID FCC_A1 DIAMOND_A4

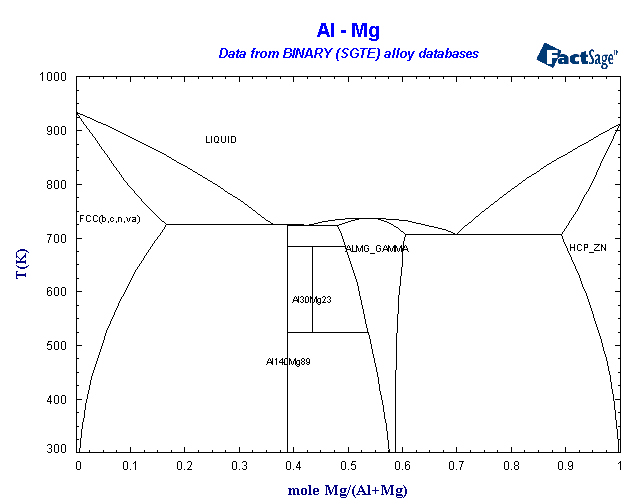

Al-Mg

LIQUID FCC_A1 HCP_A3 ALMG_GAMMA

AL140MG89(ST) AL30MG23(ST)

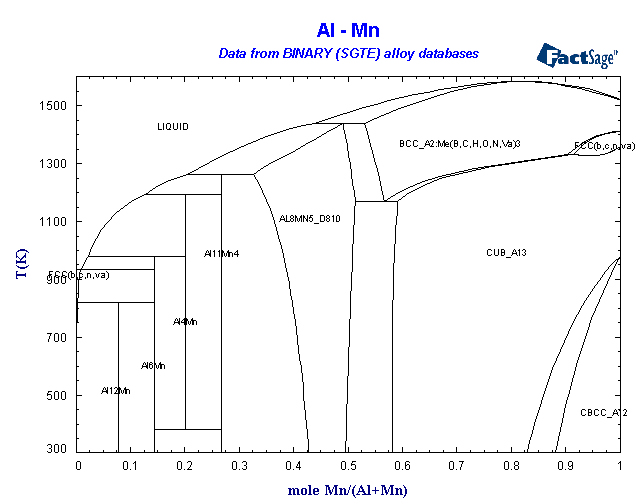

Al-Mn

LIQUID BCC_A2 FCC_A1 CBCC_A12 CUB_A13

AL11MN4(ST) AL12MN(ST) AL4MN(ST) AL6MN(ST) AL8MN5_D810

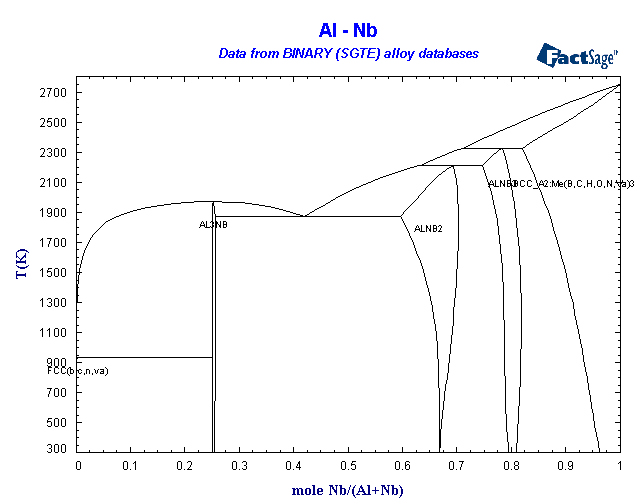

Al-Nb

LIQUID FCC_A1 BCC_A2 ALNB2 ALNB3

AL3NB2

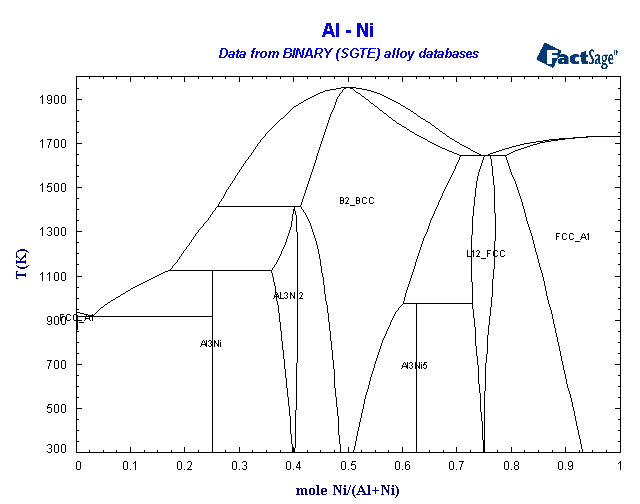

Al-Ni

LIQUID FCC_A1 B2_BCC L12_FCC(I-option) AL3NI2

AL3NI5(ST) AL3NI(ST)

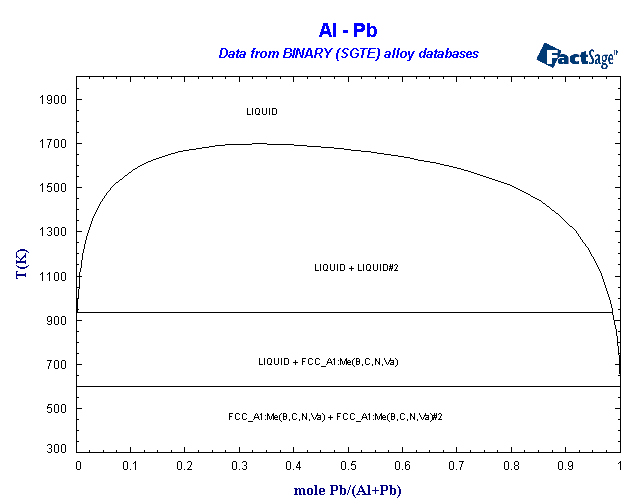

Al-Pb

LIQUID(I-option) FCC_A1(I-option)

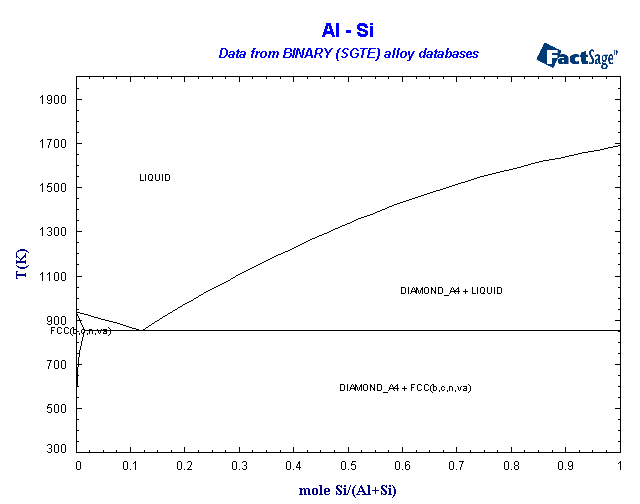

Al-Si

LIQUID FCC_A1 DIAMOND_A4

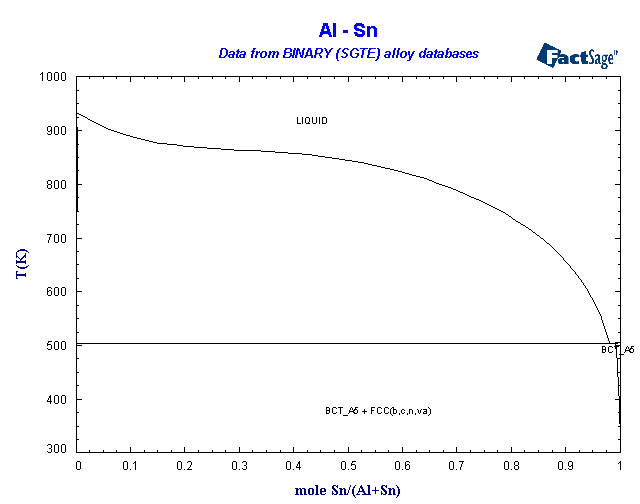

Al-Sn

LIQUID FCC_A1 BCT_A5

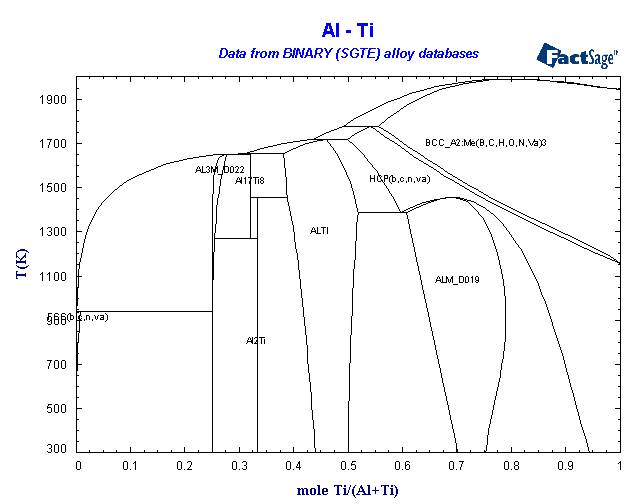

Al-Ti

LIQUID BCC_A2 FCC_A1 HCP_A3 ALM_D019(I-option)

AL2TI(ST) AL3M_DO22 AL17TI8(ST) ALTI(I-option)

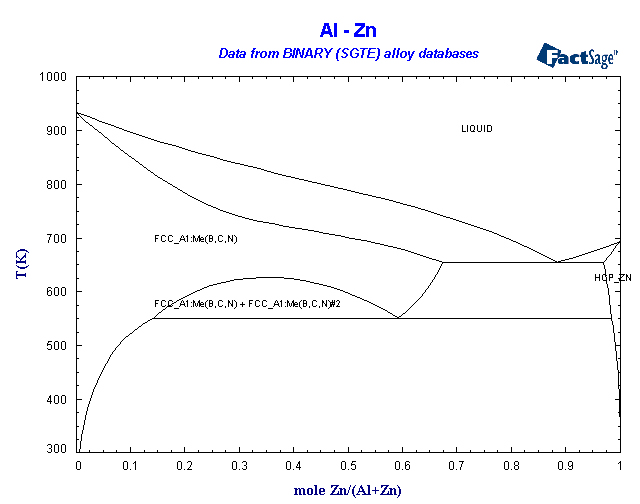

Al-Zn

LIQUID FCC_A1(I-option) HCP_ZN

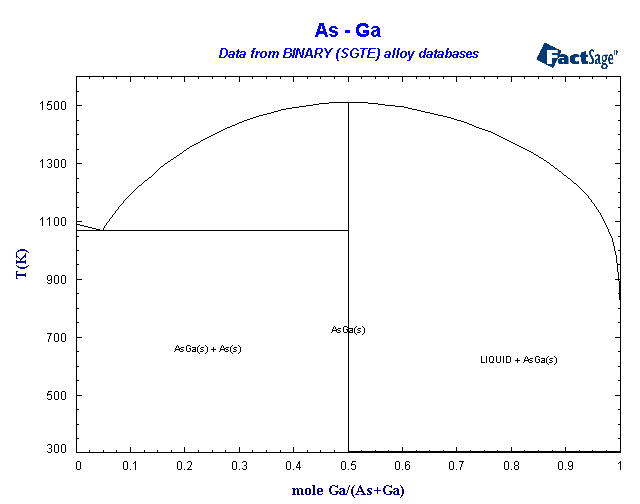

As-Ga

LIQUID RHOMBOHEDRAL_A7(ST) ORTHORHOMBIC_CMCA(ST)

ASGA(ST)

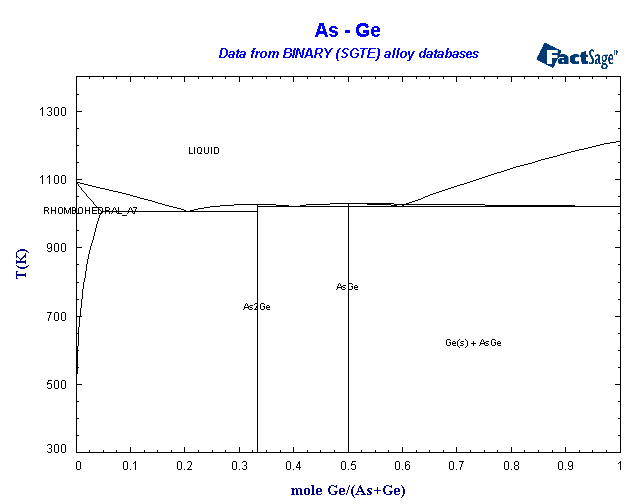

As-Ge

LIQUID RHOMBOHEDRAL_A7 DIAMOND_A4(ST)

AS2GE(ST) ASGE(ST)

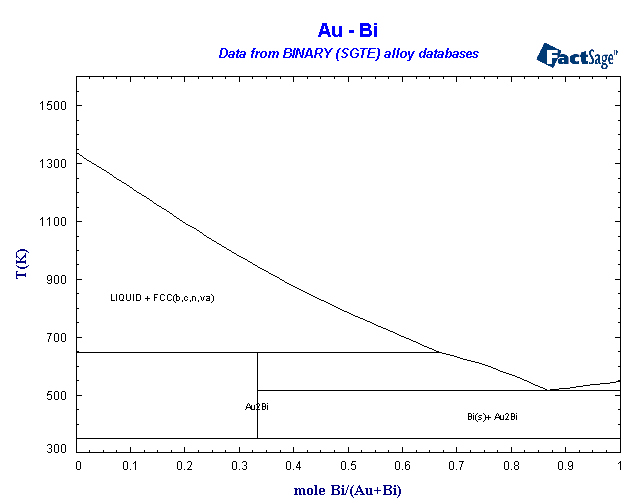

Au-Bi

LIQUID FCC_A1 RHOMBOHEDRAL_A7(ST) AU2BI(ST)

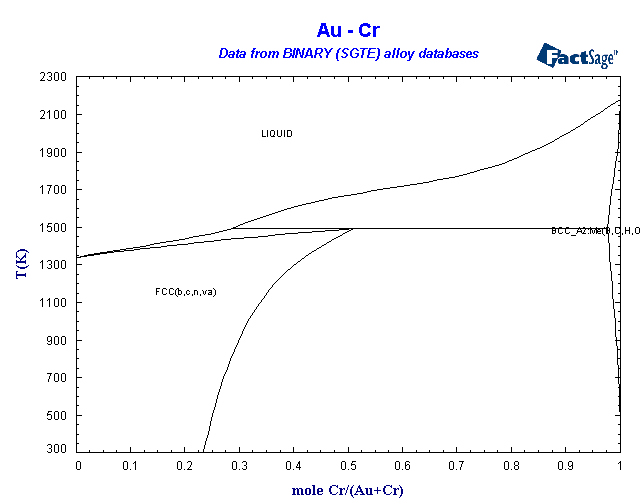

Au-Cr

LIQUID FCC_A1 BCC_A2

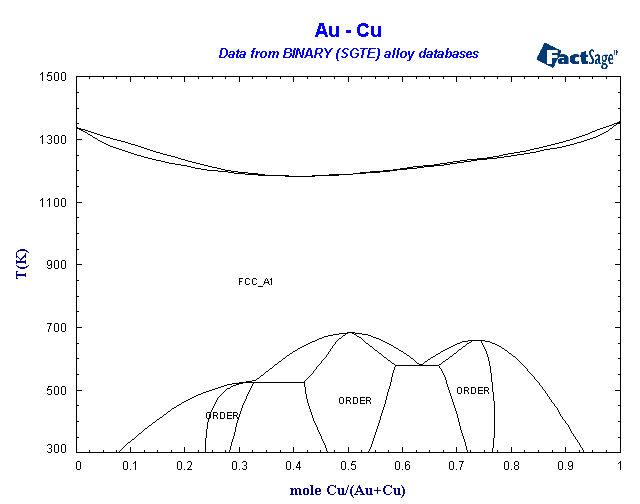

Au-Cu

LIQUID FCC_A1(AU,CU) ORDER(J-option)

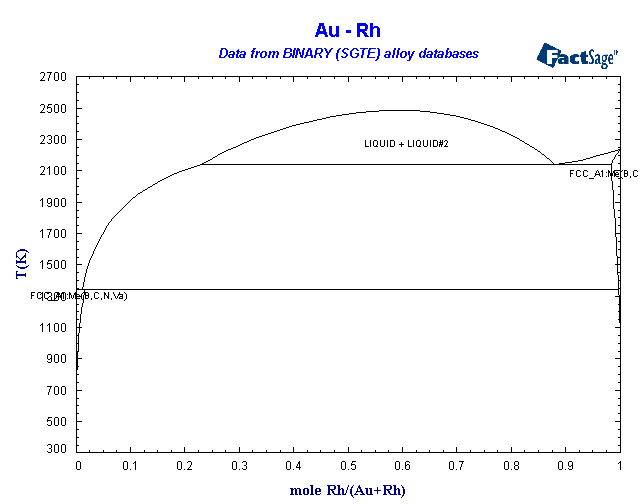

Au-Rh

LIQUID(I-option) FCC_A1(I-option)

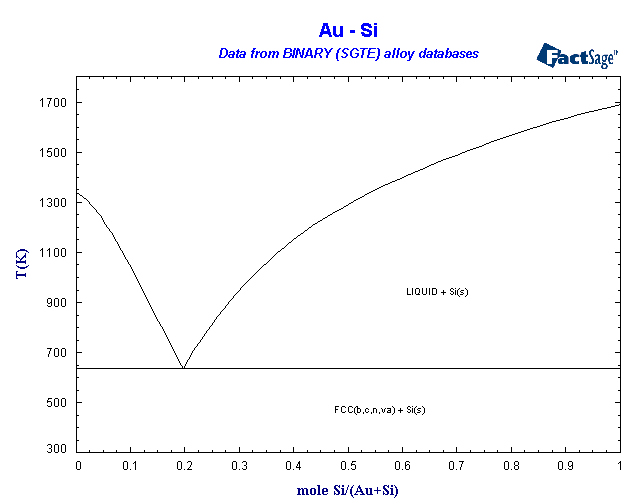

Au-Si

LIQUID FCC_A1 DIAMOND_A4(ST)

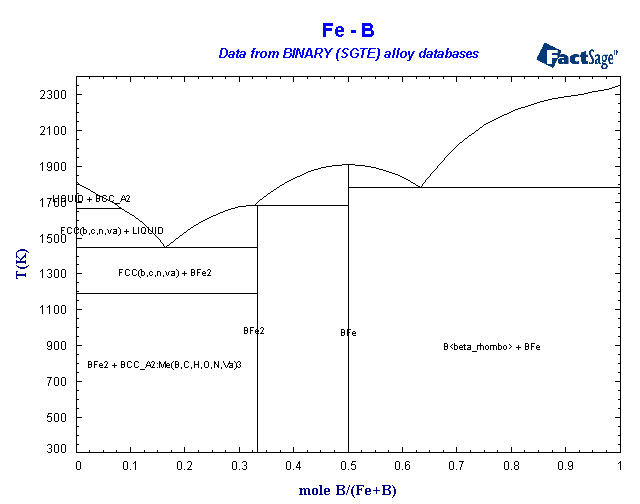

B-Fe

LIQUID BCC_A2 FCC_A1 BETA_RHOMBO_B(ST)

BFE(ST) BFE2(ST)

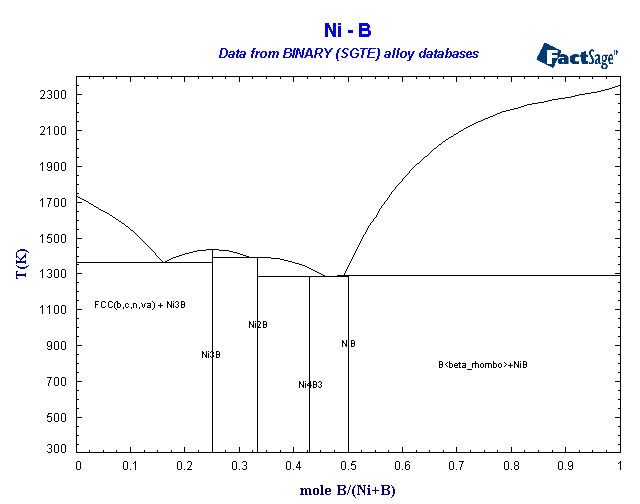

B-Ni

LIQUID FCC_A1 BETA_RHOMBO_B(ST) NI3B(ST)

NI4B3(ST) NIB(ST) NI2B(ST)

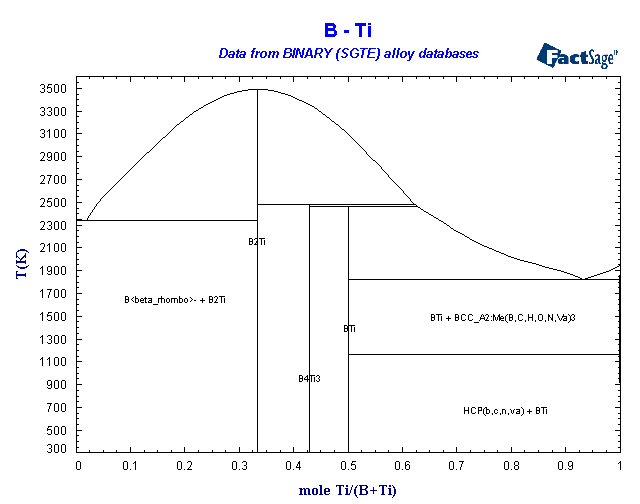

B-Ti

LIQUID BCC_A2 HCP_A3 BETA_RHOMBO_B(ST)

BTI(ST) B2TI(ST) B4TI3(ST)

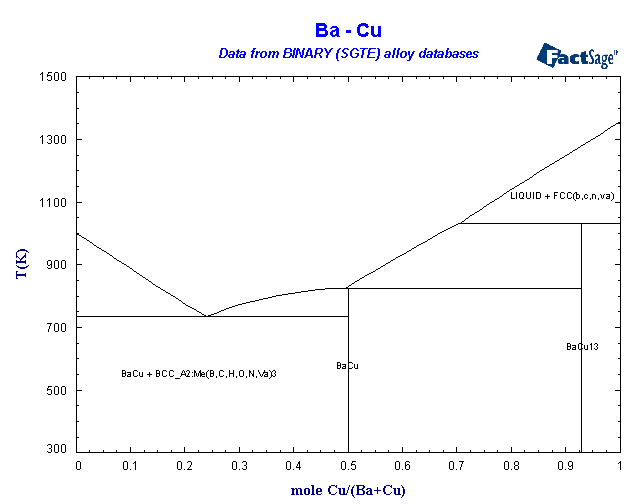

Ba-Cu

LIQUID FCC_A1 BCC_A2 BACU(ST) BACU13(ST)

Ba-Y

LIQUID(I-option) HCP_A3(ST) BCC_A2 FCC_A1

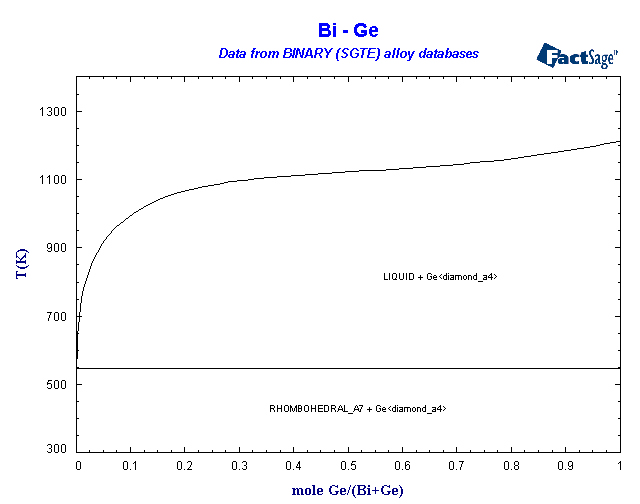

Bi-Ge

LIQUID RHOMBOHEDRAL_A7 DIAMOND_A4(ST)

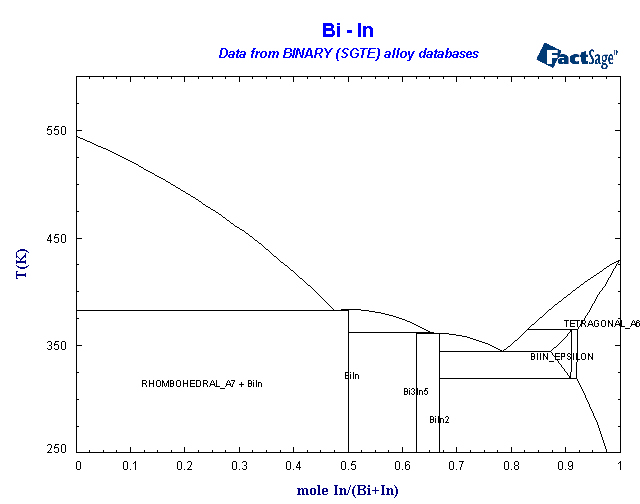

Bi-In

LIQUID TETRAGONAL_A6 RHOMBOHEDRAL_A7

BIIN(ST) BIIN2(ST) BI3IN5(ST) BIIN_EPSILON

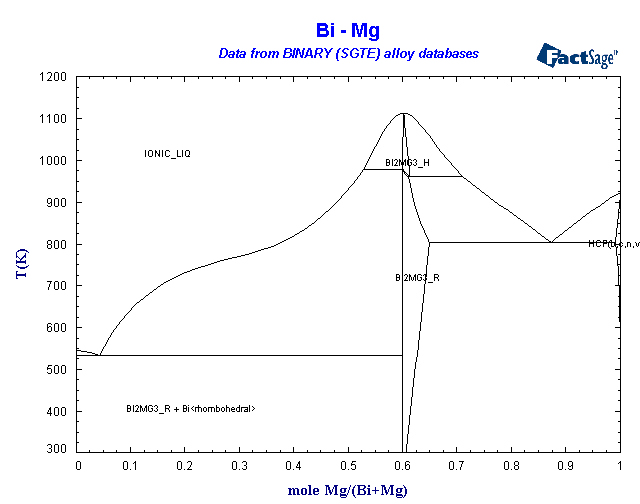

Bi-Mg

IONIC RHOMBOHEDRAL_A7(ST) HCP_A3 BI2MG3-R

BI2MG3-H

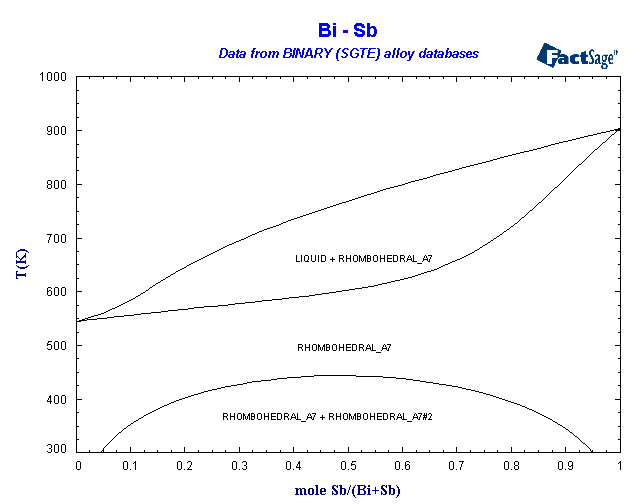

Bi-Sb

LIQUID RHOMBOHEDRAL_A7(I-option)

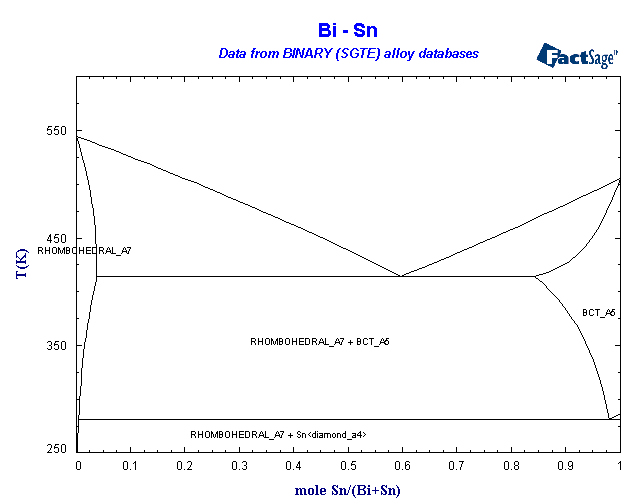

Bi-Sn

LIQUID BCT_A5 RHOMBOHEDRAL_A7 DIAMOND_A4(ST)

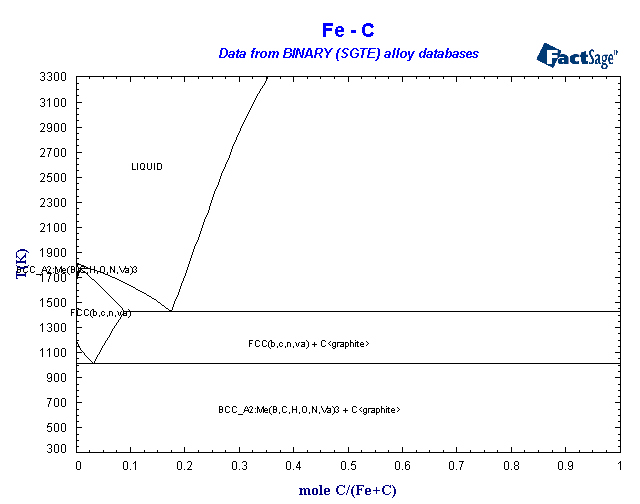

C-Fe

LIQUID BCC_A2 FCC_A1 GRAPHITE(ST)

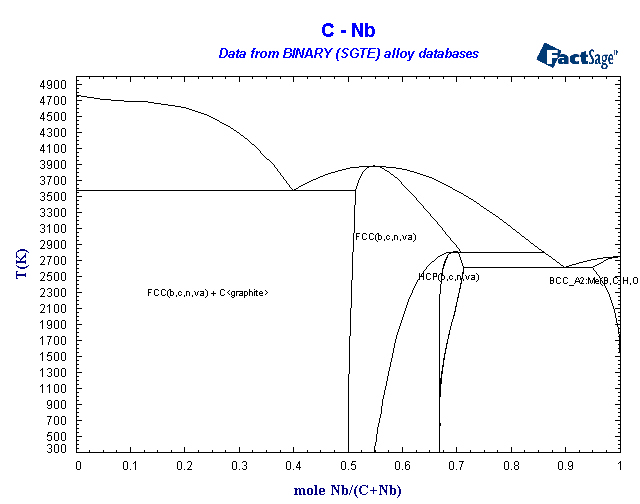

C-Nb

LIQUID BCC_A2 FCC_A1 HCP_A3 GRAPHITE(ST)

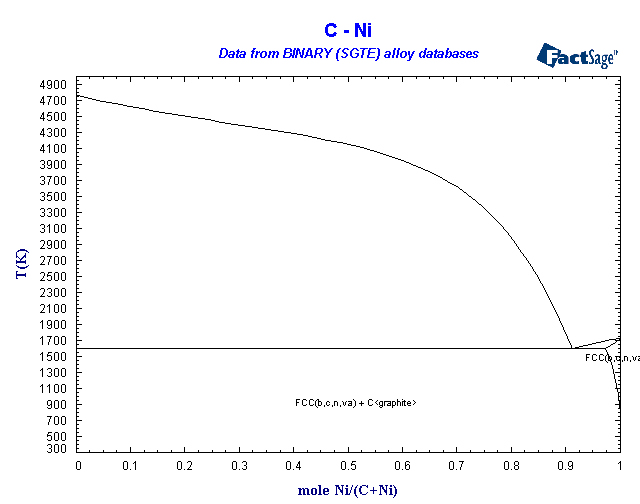

C-Ni

LIQUID FCC_A1 GRAPHITE(ST)

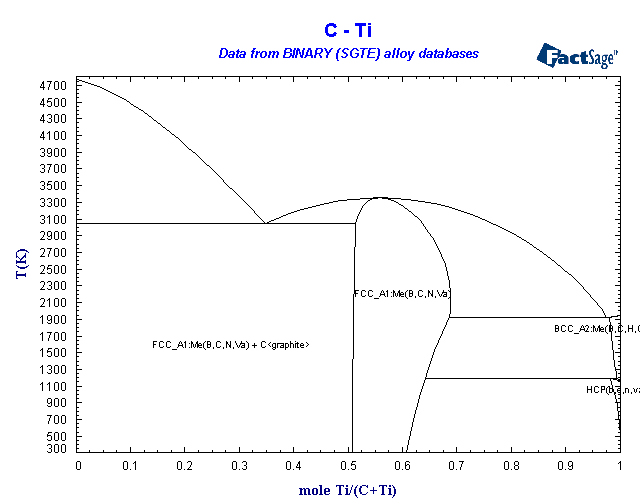

C-Ti

LIQUID BCC_A2 FCC_A1(I-option) HCP_A3 GRAPHITE(ST)

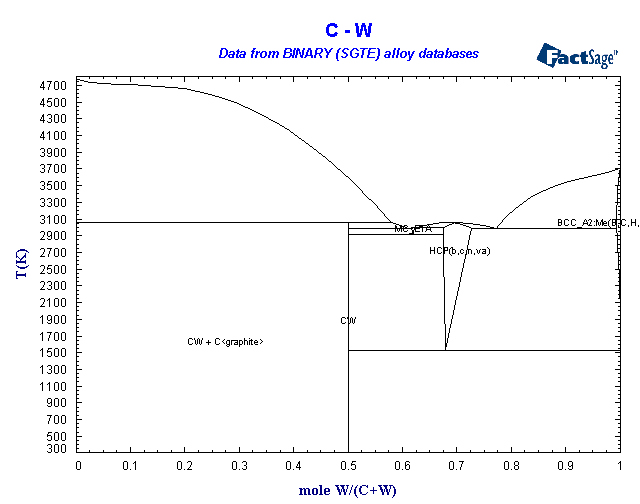

C-W

LIQUID BCC_A2 HCP_A3 GRAPHITE(ST)

MC_ETA CW(ST)

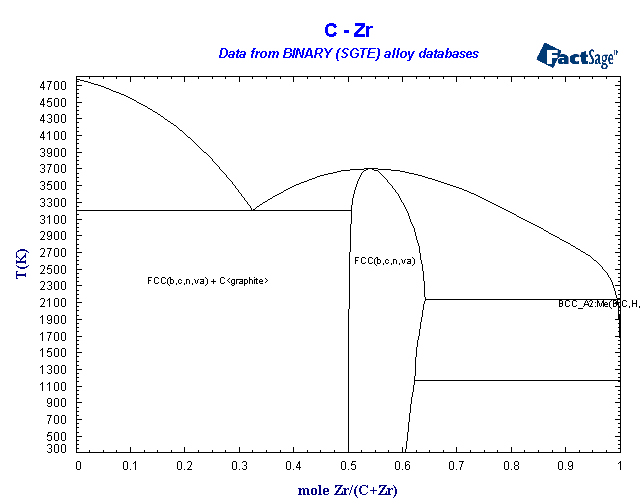

C-Zr

LIQUID FCC_A1 BCC_A2 GRAPHITE(ST)

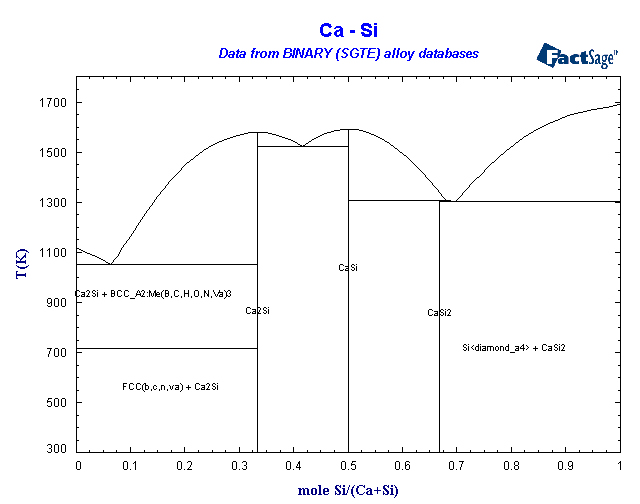

Ca-Si

LIQUID BCC_A2 FCC_A1 DIAMOND_A4(ST)

CA2SI(ST) CASI(ST) CASI2(ST)

Cd-In

LIQUID TETRAGONAL_A6 HCP_A3 CD3IN(ST)

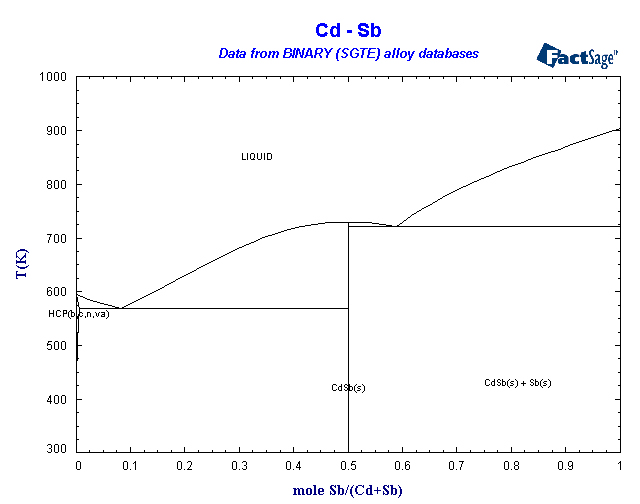

Cd-Sb

LIQUID HCP_A3 RHOMBOHEDRAL_A7(ST) CDSB(ST)

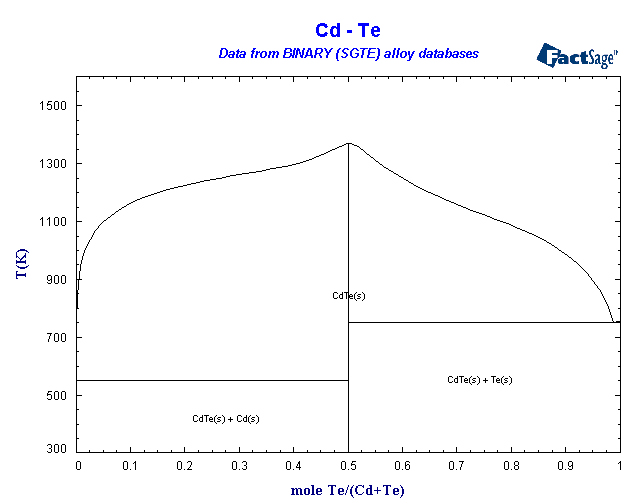

Cd-Te

LIQUID RHOMBOHEDRAL_A7(ST) HEXAGONAL_A8(ST)

CDTE(ST)

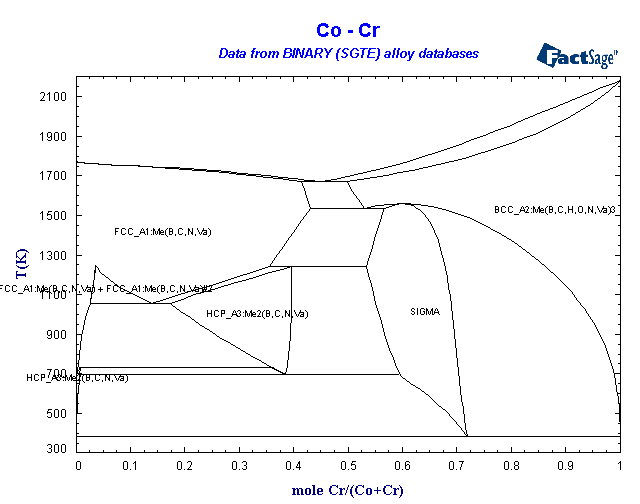

Co-Cr

LIQUID BCC_A2 FCC_A1(I-option) HCP_A3(I-option) SIGMA

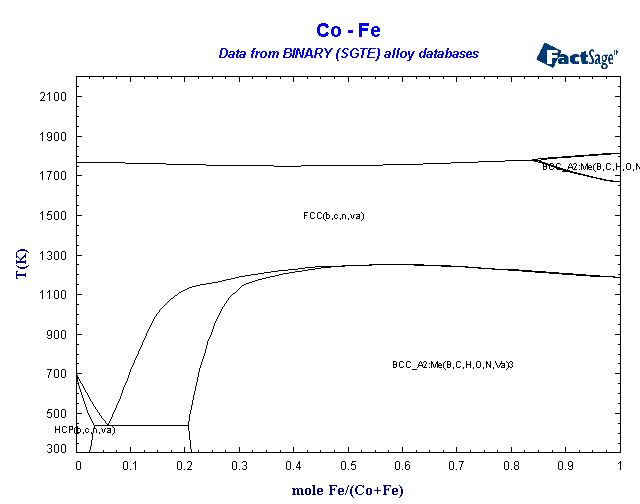

Co-Fe

LIQUID BCC_A2 FCC_A1 HCP_A3

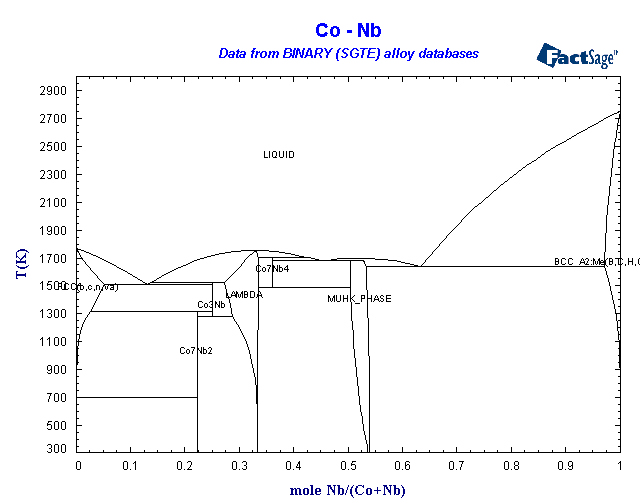

Co-Nb

LIQUID BCC_A2 FCC_A1 HCP_A3 MUHK_PHASE

LAMBDA CO7NB2(ST) CO3NB(ST) CO7NB4(ST)

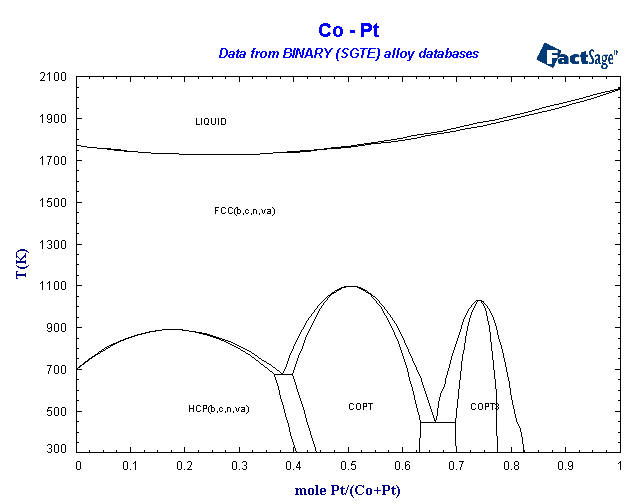

Co-Pt

LIQUID FCC_A1 HCP_A3 COPT COPT3

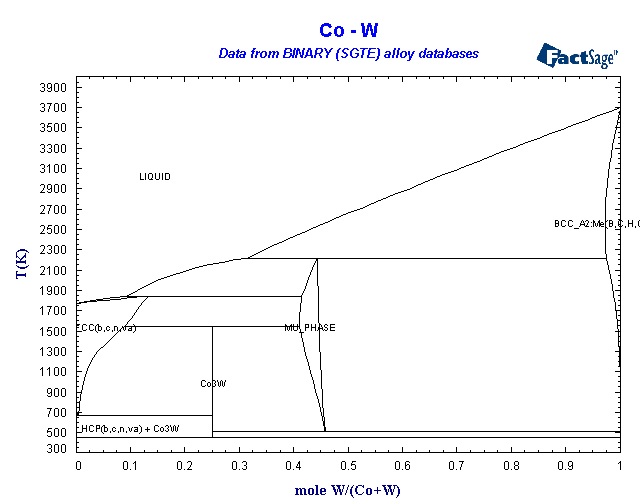

Co-W

LIQUID BCC_ A2 HCP_A3 FCC_A1 CO3W(ST)

MU_PHASE

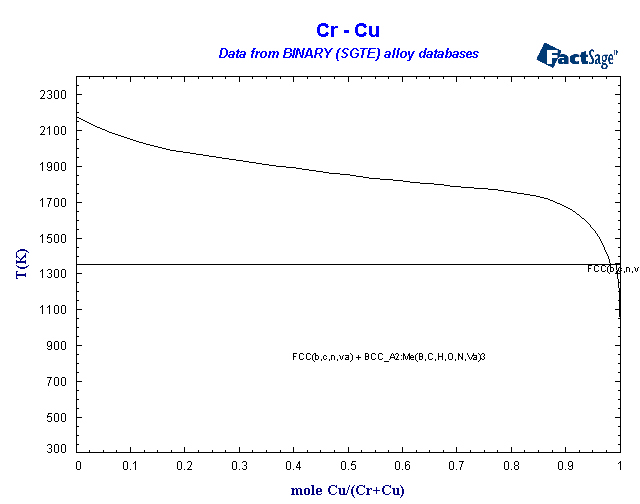

Cr-Cu

LIQUID BCC_A2 FCC_A1

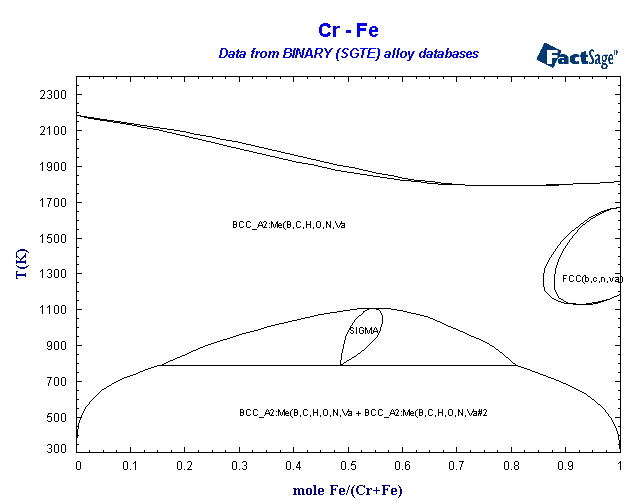

Cr-Fe

LIQUID BCC_A2(I-option) FCC_A1 SIGMA

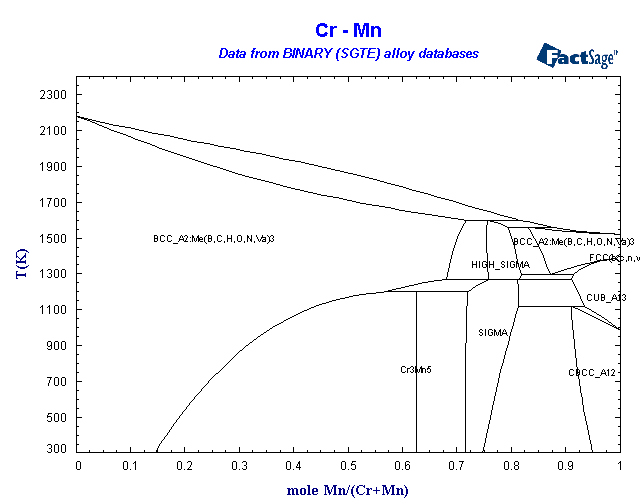

Cr-Mn

LIQUID BCC_A2 CBCC_A12 CUB_A13 FCC_A1

HIGH_SIGMA SIGMA CR3MN5(ST)

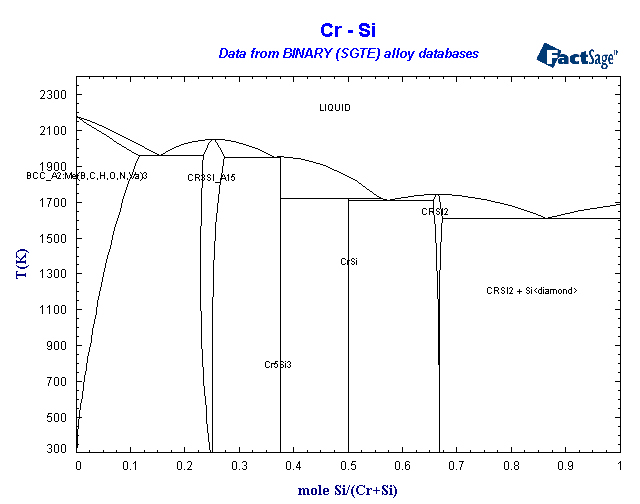

Cr-Si

LIQUID BCC_A2 DIAMOND_A4(ST) CR3SI

CRSI2 CR5SI3(ST) CRSI(ST)

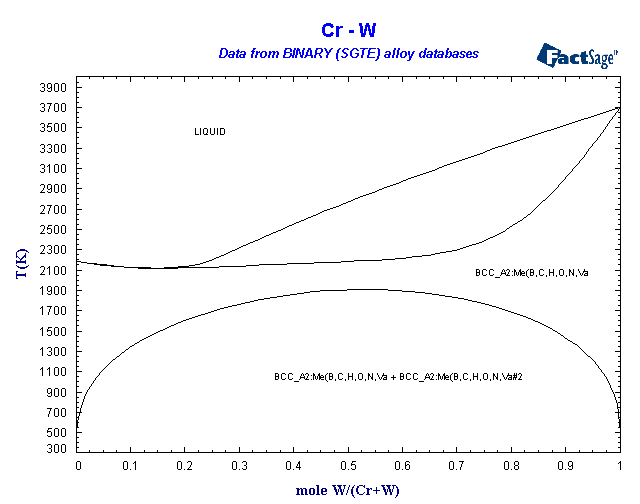

Cr-W

LIQUID BCC_A2(I-option)

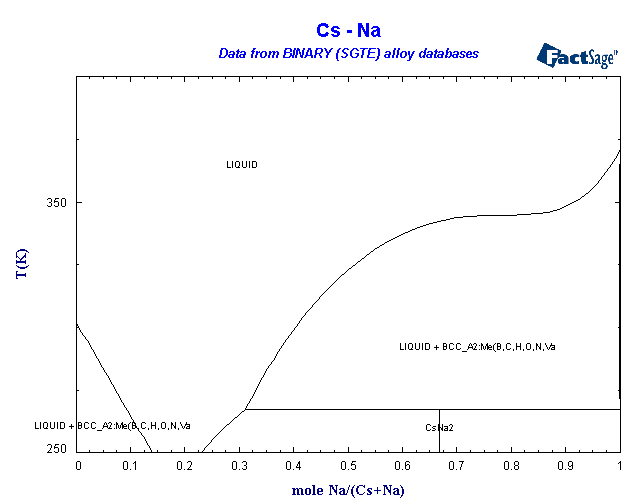

Cs-Na

LIQUID BCC_A2(I-option) CSNA2(ST)

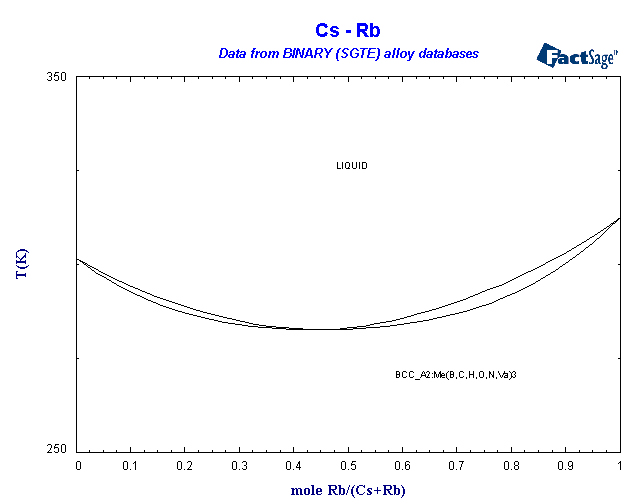

Cs-Rb

LIQUID BCC_A2

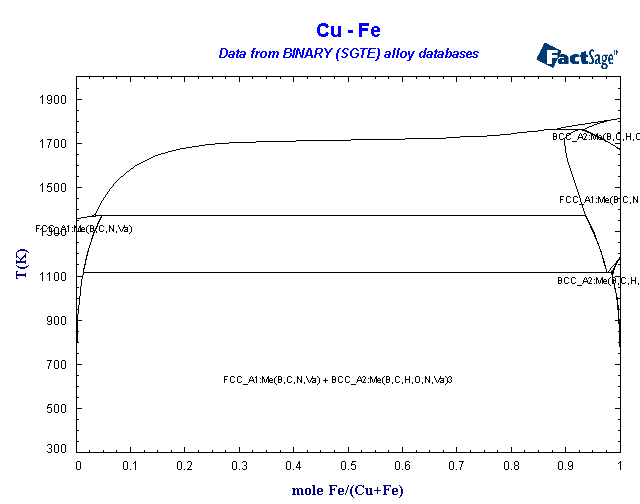

Cu-Fe

LIQUID BCC_A2 FCC_A1(I-option)

Cu-Mg

LIQUID FCC_A1 HCP_A3 LAVES_C15 CUMG2(ST)

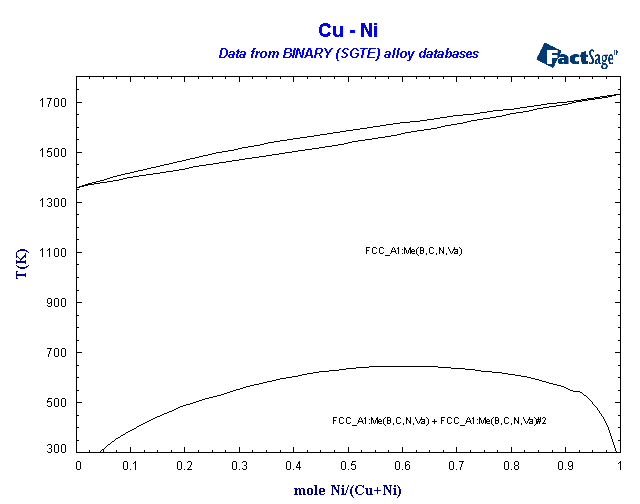

Cu-Ni

LIQUID FCC_A1(I-option)

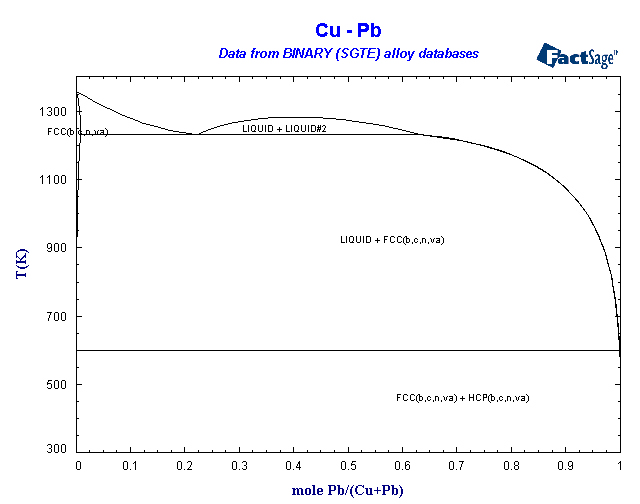

Cu-Pb

LIQUID(I-option) FCC_A1 HCP_A3

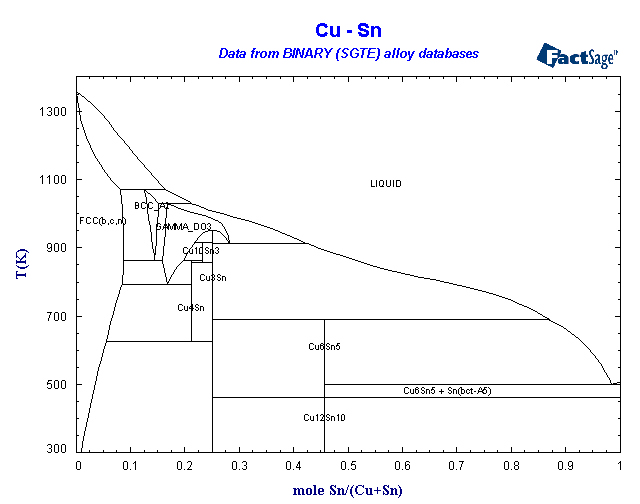

Cu-Sn

LIQUID FCC_A1 BCC_A2 GAMMA_D03

CU6SN5(ST) CU12SN10(ST) CU3SN(ST) CU4SN(ST)

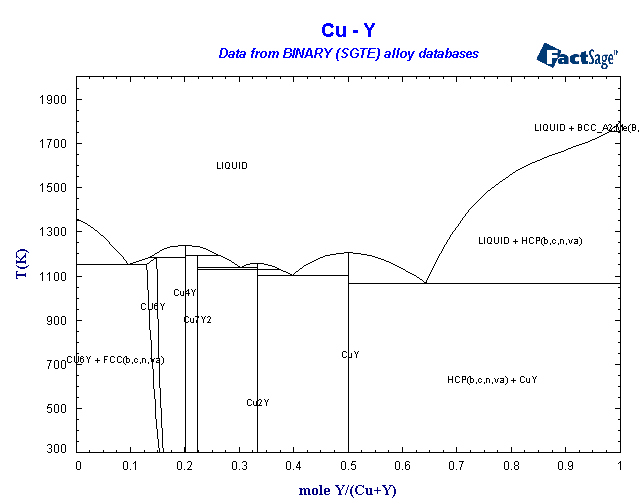

Cu-Y

LIQUID BCC_A2 FCC_A1 HCP_A3

CU6Y CUY(ST) CU2Y(ST) CU4Y(ST) CU7Y2(ST)

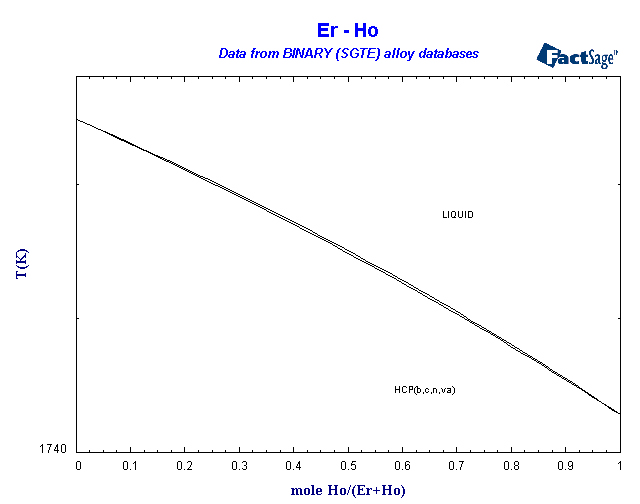

Er-Ho

LIQUID HCP_A3

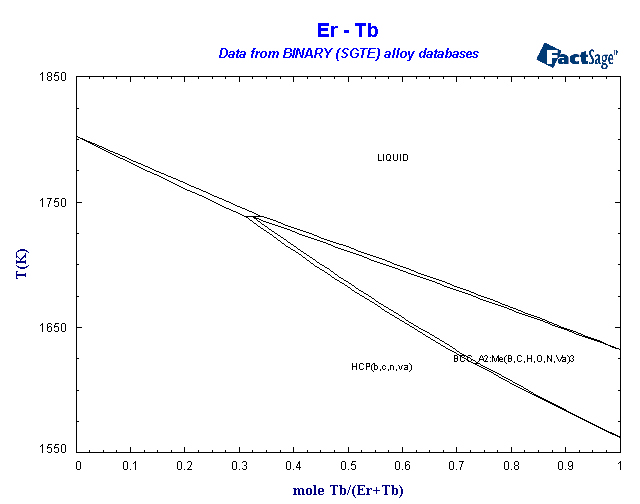

Er-Tb

LIQUID BCC_A2 HCP_A3

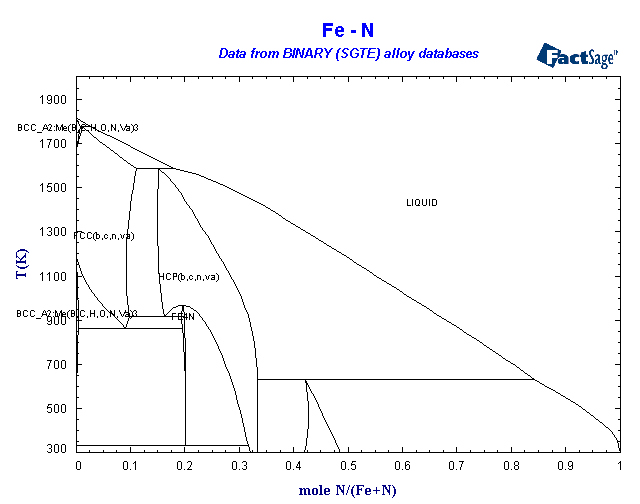

Fe-N

LIQUID BCC_A2 FCC_A1 HCP_A3 FE4N

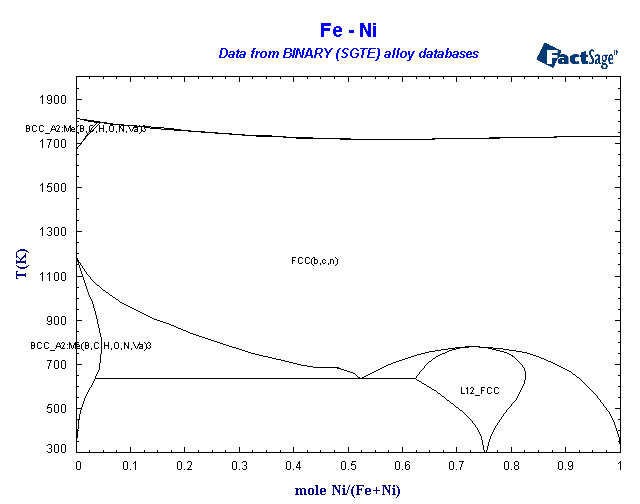

Fe-Ni

LIQUID BCC_A2 FCC_A1 L12_FCC(I-option)

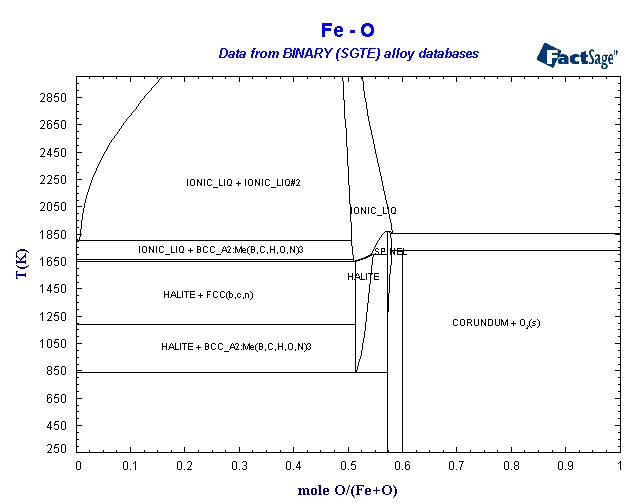

Fe-O

IONIC BCC_A2 FCC_A1 O2_GAS(ST) SPINEL

CORUNDUM HALITE

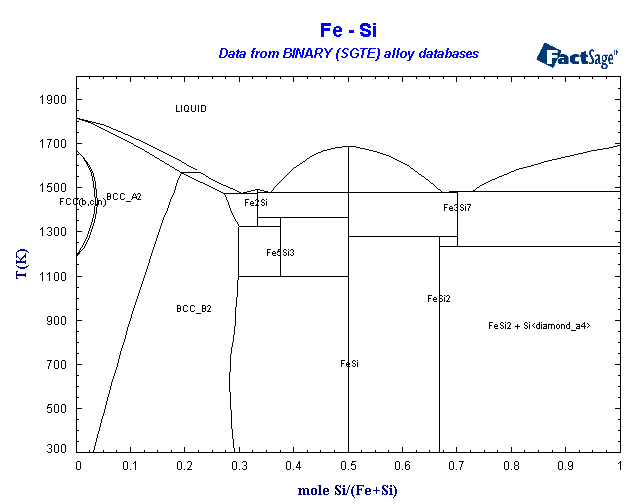

Fe-Si

LIQUID BCC_A2 FCC_A1 B2_BCC(I-option) DIAMOND_A4(ST)

FESI(ST) FE2SI(ST) FE5SI3(ST) FESI2ST) FE3SI7(ST)

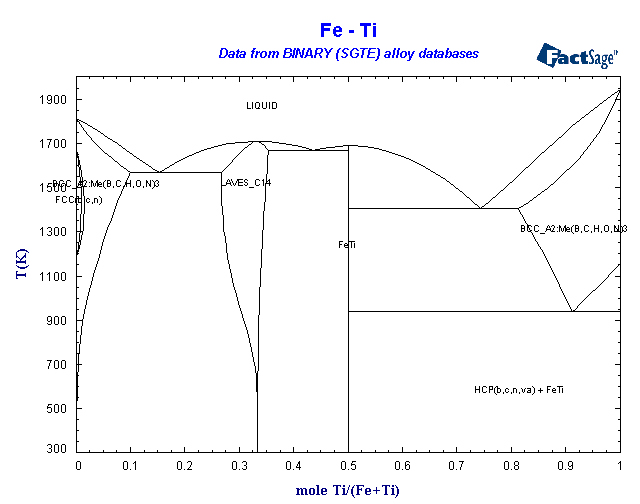

Fe-Ti

LIQUID BCC_A2 HCP_A3 FCC_A1 LAVES_C14

FETI(ST)

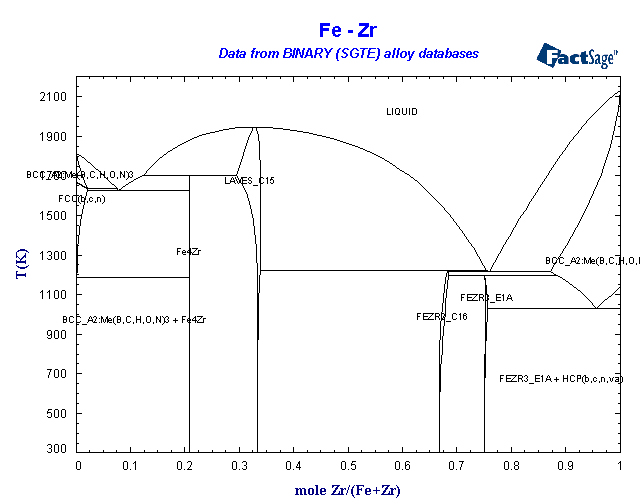

Fe-Zr

LIQUID BCC_A2 FCC_A1 HCP_A3 LAVES_C15

FEZR2 FEZR3 FE4ZR(ST)

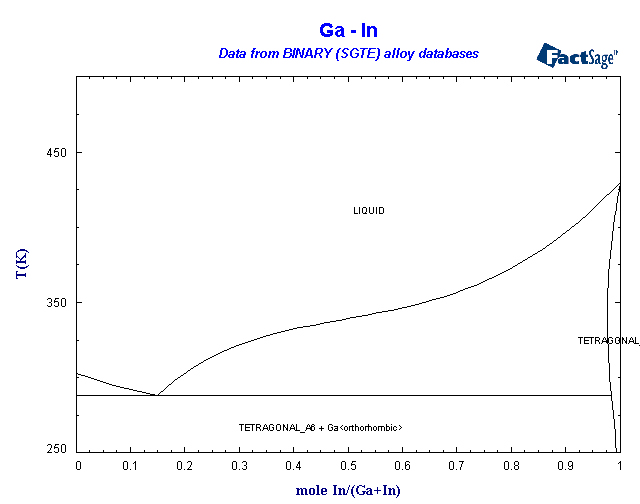

Ga-In

LIQUID TETRAGONAL_A6 ORTHORHOMBIC_CMCA

Ga-Zn

LIQUID HCP_ZN ORTHORHOMBIC_CMCA

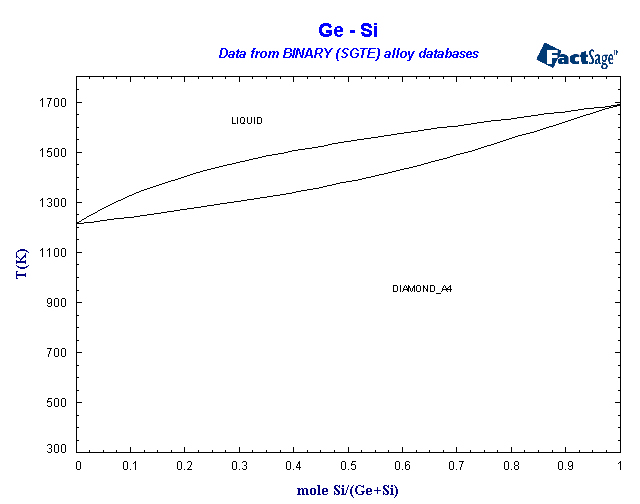

Ge-Si

LIQUID DIAMOND_A4

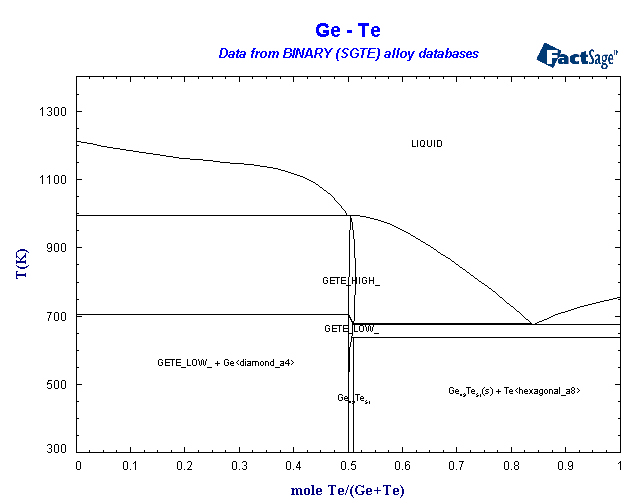

Ge-Te

LIQUID DIAMOND_A4(ST) HEXAGONAL_A8(ST)

GETE_LOW GETE_HIGH GE49TE51(ST)

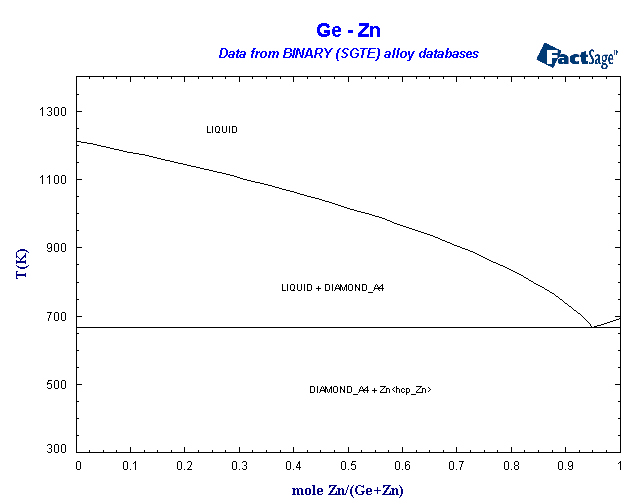

Ge-Zn

LIQUID DIAMOND_A4 HCP_ZN(ST)

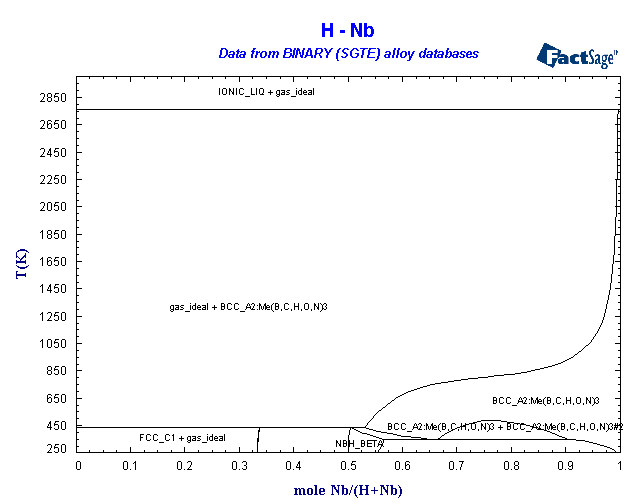

H-Nb

IONIC BCC_A2(I-option) FCC_C1 H2_GAS(ST) NBH_BETA

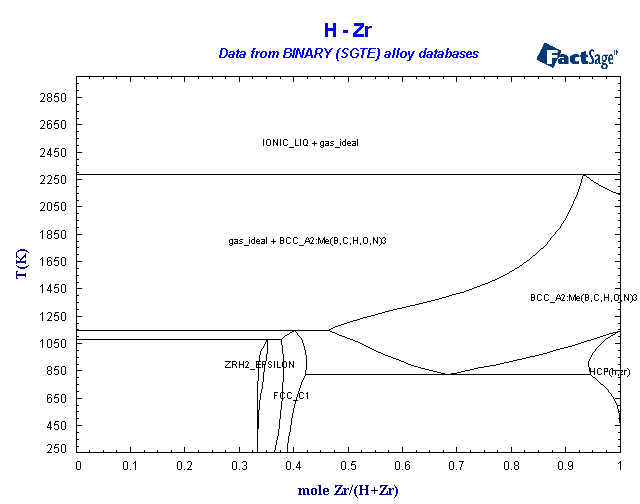

H-Zr

IONIC BCC_A2 FCC_C1 HCP_A3(H,ZR) H2_GAS(ST)

ZRH2_EPSILON

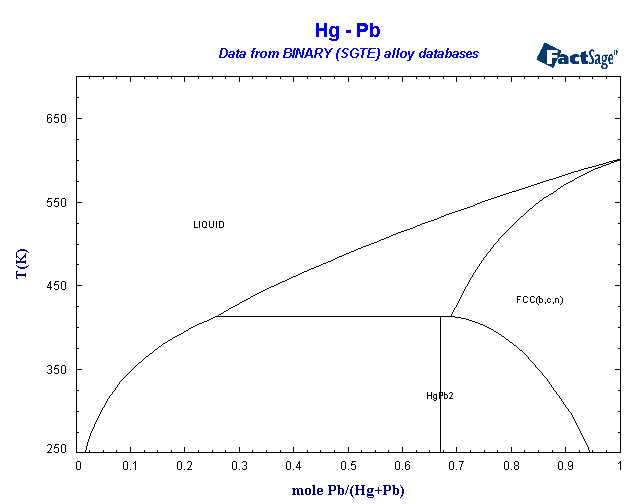

Hg-Pb

LIQUID FCC_A1 RHOMBO_A10 HGPB2(ST)

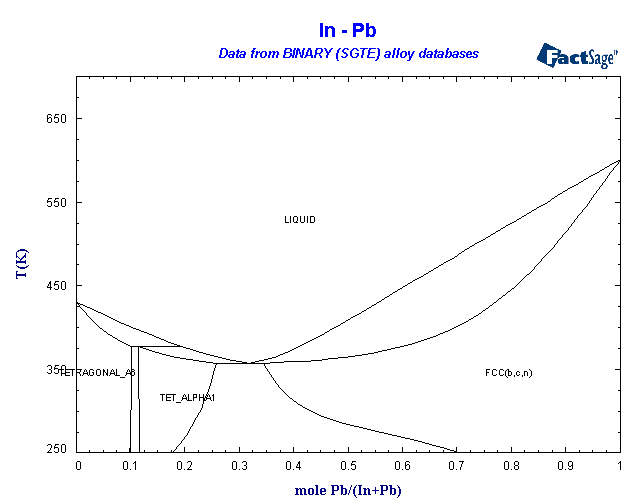

In-Pb

LIQUID FCC_A1 TETRAGONAL_A6 TET_ALPHA

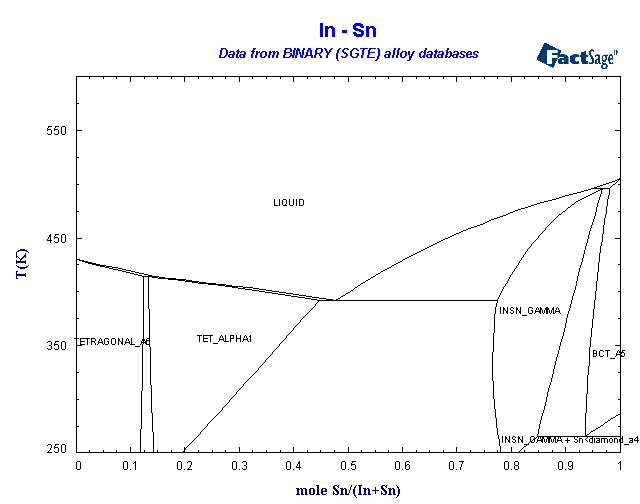

In-Sn

LIQUID TETRAGONAL_A6 BCT_A5 DIAMOND_A4(ST)

TET_ALPHA INSN_GAMMA

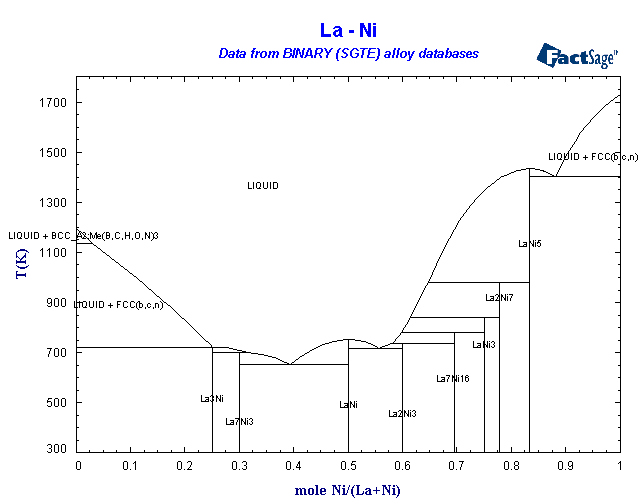

La-Ni

LIQUID FCC_A1 BCC_A2 LA2Ni3(ST) LA3Ni(ST)

LA7NI3(ST) LANI(ST) LA2NI7(ST) LA7NI16(ST) LANI5(ST)

LANI3(ST)

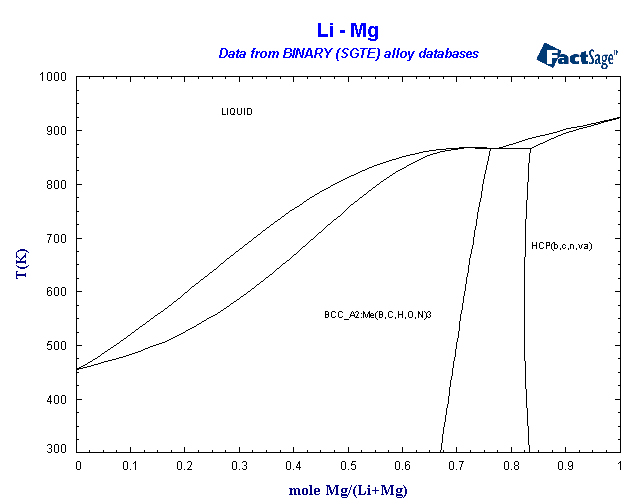

Li-Mg

LIQUID BCC_A2 HCP_A3

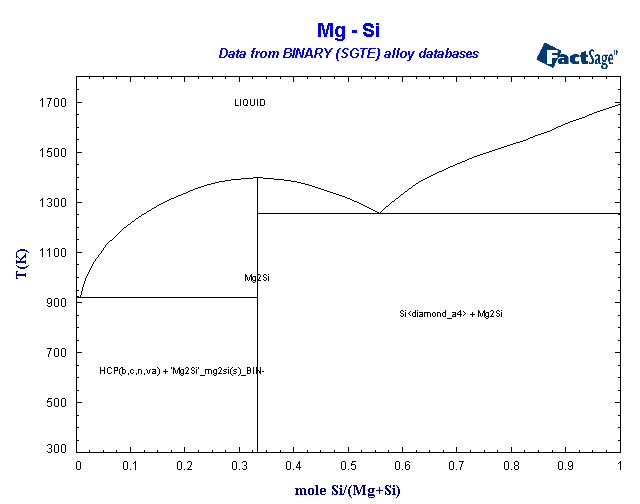

Mg-Si

LIQUID DIAMOND_A4(ST) HCP_A3 MG2SI(ST)

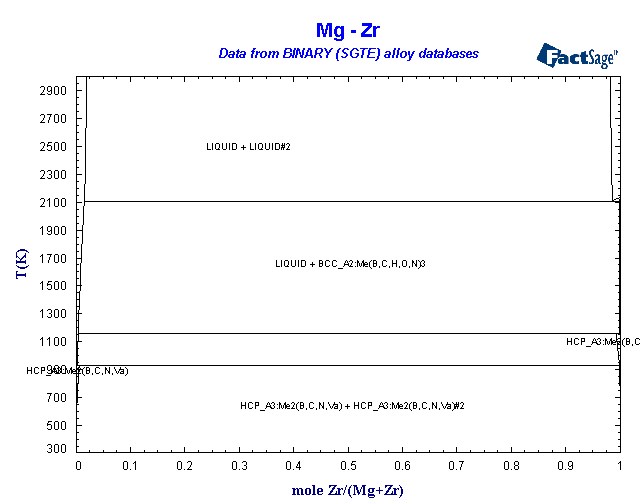

Mg-Zr

LIQUID BCC_A2 FCC_A1 HCP_A3(I-option)

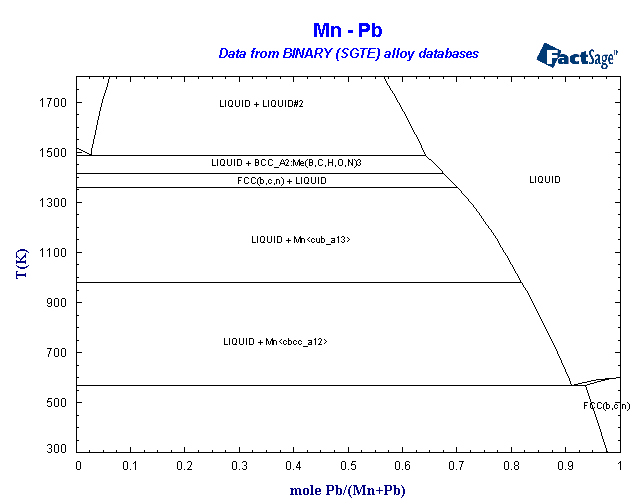

Mn-Pb

LIQUID(I-option) FCC_A1 CUB_A13 CBCC_A12 BCC_A2

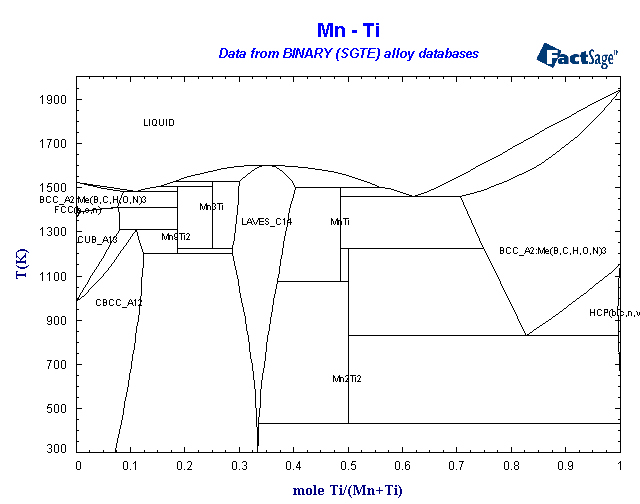

Mn-Ti

LIQUID BCC_A2 CBCC_A12 CUB_A13 FCC_A1 HCP_A3

MN9TI2(ST) MN3TI(ST) MN2TI2(ST) MNTI(ST) LAVES_C14

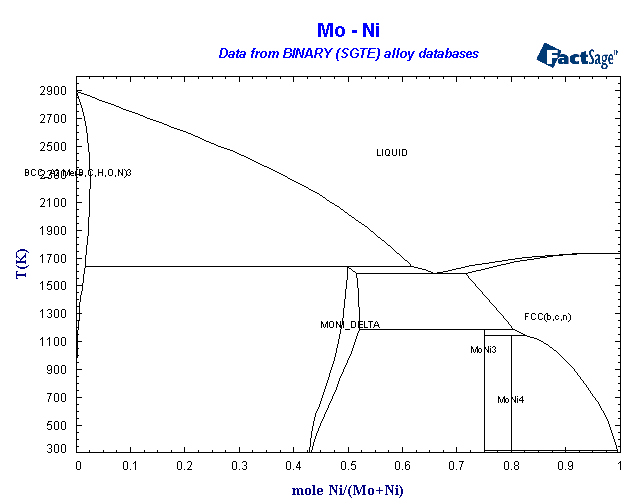

Mo-Ni

LIQUID BCC_A2 FCC_A1 MONI_DELTA MONI4(ST)

MONI3(ST)

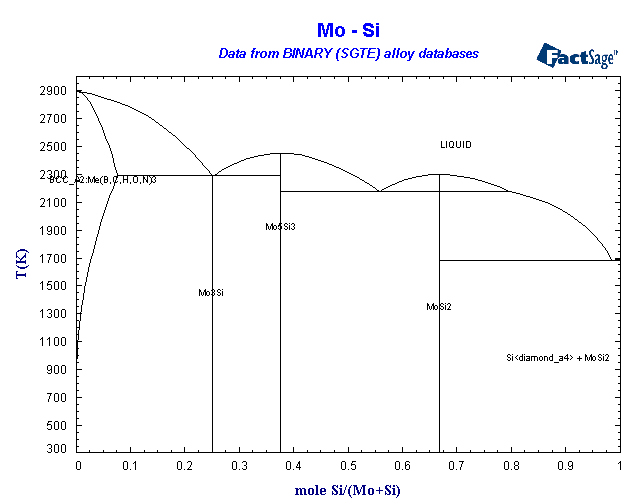

Mo-Si

LIQUID BCC_A2 DIAMOND_A4(ST) MO3SI(ST)

MO5SI3(ST) MOSI2(ST)

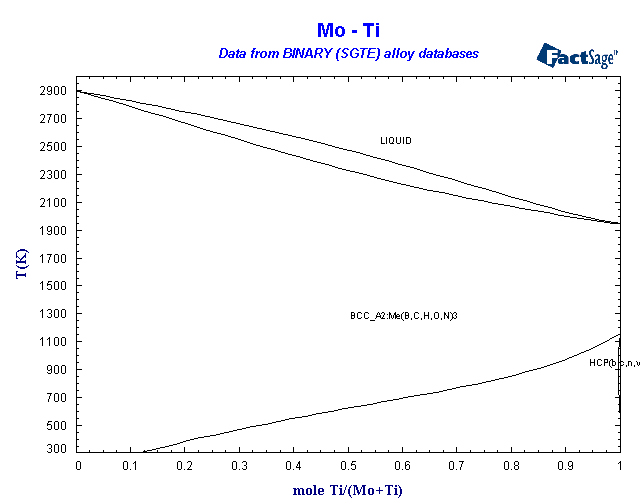

Mo-Ti

LIQUID BCC_A2 HCP_A3

N-Nb

LIQUID FCC_A1 HCP_A3 FCC_A1 N2_GAS(ST)

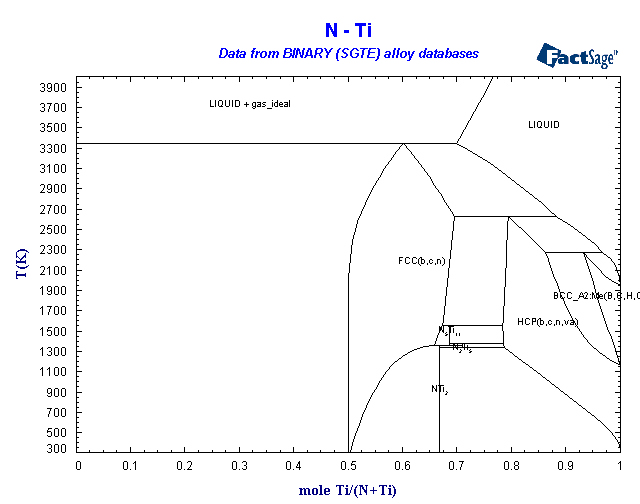

N-Ti

LIQUID FCC_A1 HCP_A3 BCC_A2 N2TI5(ST)

NTI2(ST) N5TI11(ST)

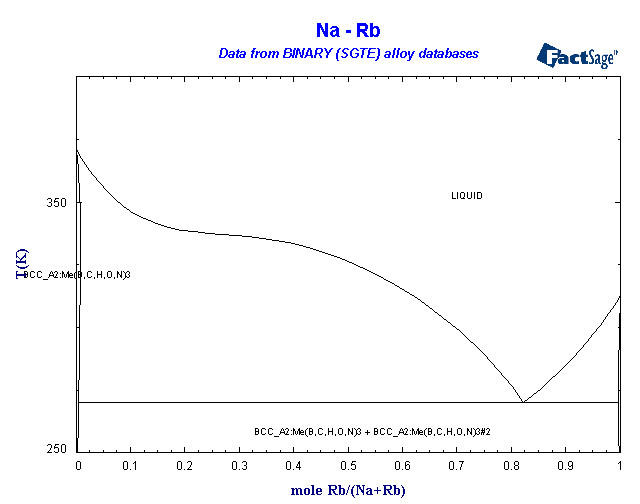

Na-Rb

LIQUID BCC_A2(I-option)

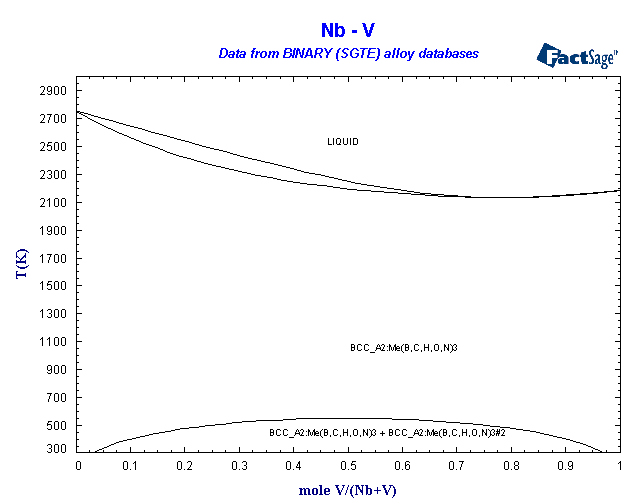

Nb-V

LIQUID BCC_A2(I-option)

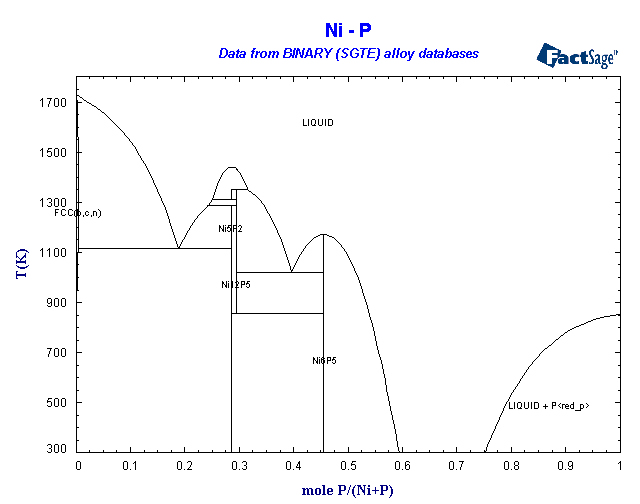

Ni-P

LIQUID FCC_A1 RED_P(ST) NI12P5(ST) NI5P2_H(ST)

NI5P2_L(ST) NI6P5(ST)

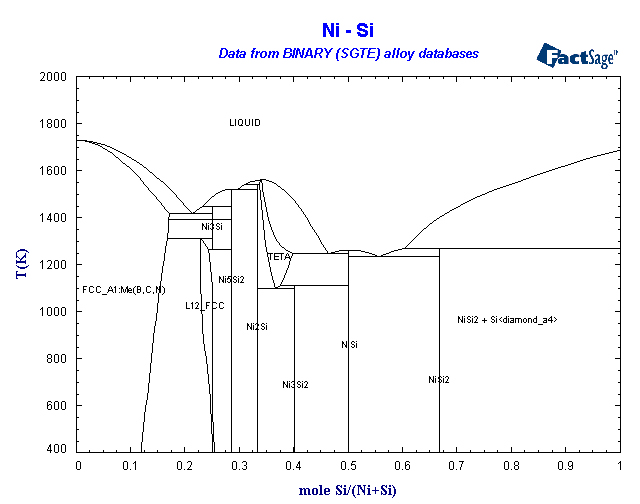

Ni-Si

LIQUID FCC_A1 DIAMOND_A4(ST) NI2SI(ST)

NI3SI2(ST) NI3SI(ST)

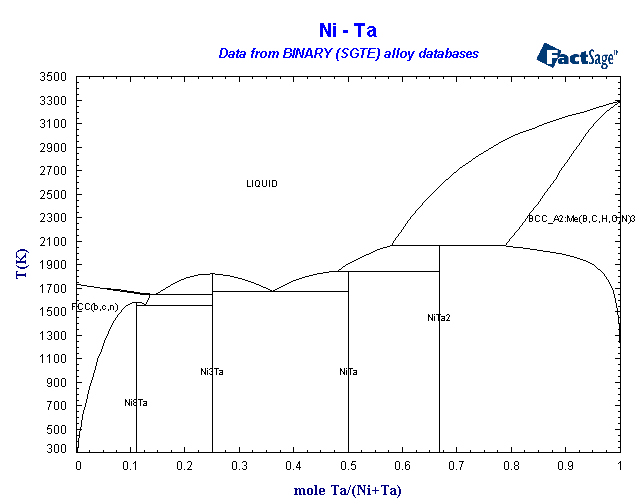

Ni-Ta

LIQUID FCC_A1 BCC_A2 NITA(ST) NI8TA(ST)

NITA2(ST) NI3TA(ST)

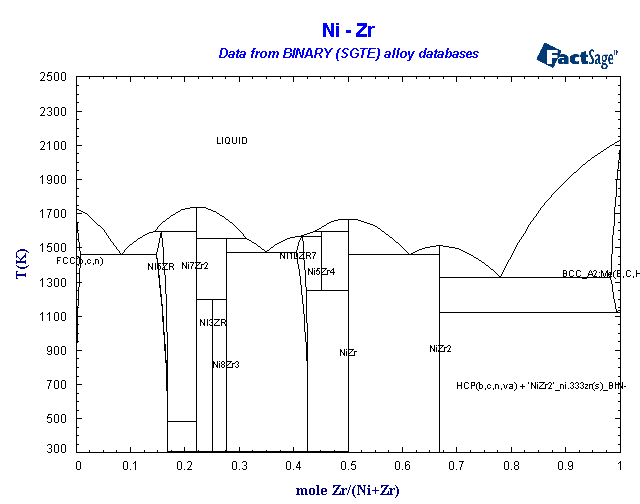

Ni-Zr

LIQUID FCC_A1 BCC_A2 HCP_A3 NI3ZR

NI5ZR NI10ZR7 NI5ZR4(ST) NI8ZR3(ST) NI7ZR2(ST)

NIZR(ST) NIZR2(ST)

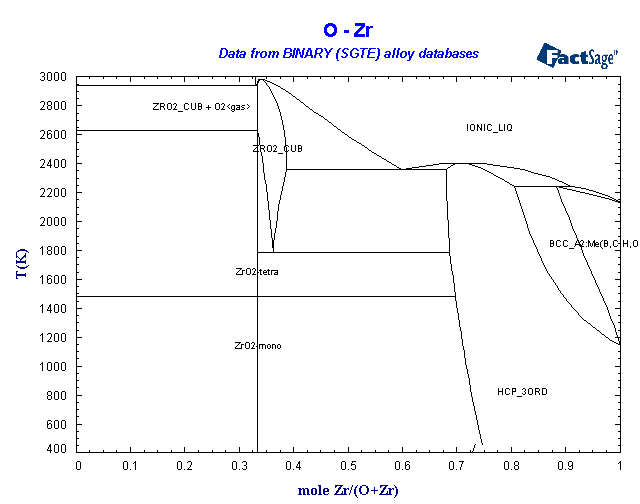

O-Zr

IONIC BCC_A2 HCP3_ORD O2_GAS(ST) ZRO2_CUB

ZRO2_TETR(ST) ZRO2_MONO(ST)

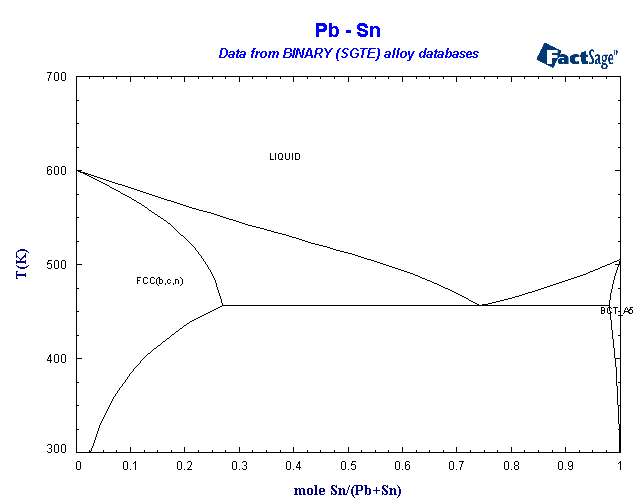

Pb-Sn

LIQUID BCT_A5 FCC_A1 DIAMOND_A4(ST)

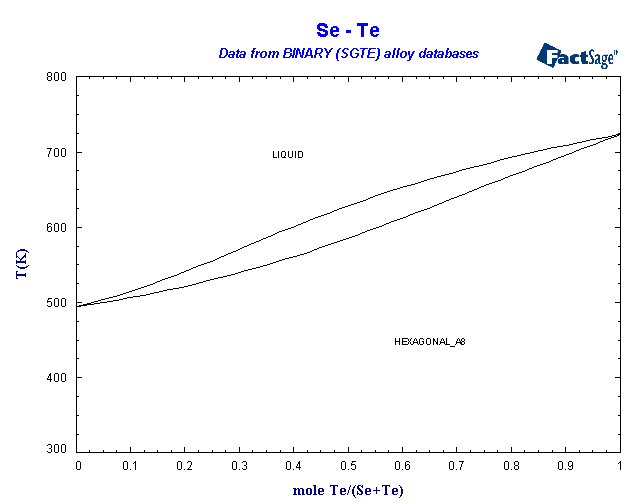

Se-Te

LIQUID HEXAGONAL_A8

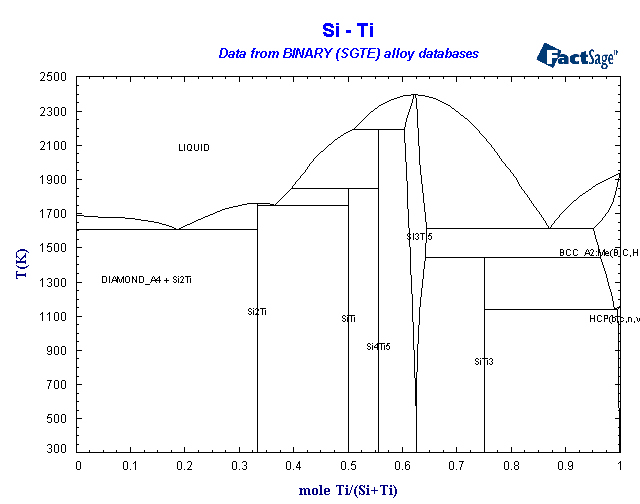

Si-Ti

LIQUID BCC_A2 HCP_A3 DIAMOND_A4(ST)

SI3TI5 SI2TI(ST) SI4TI5(ST) SITI(ST) SITI3(ST)

Si-W

LIQUID BCC_A2 DIAMOND_A4(ST) SI2W(ST) SI3W5(ST)

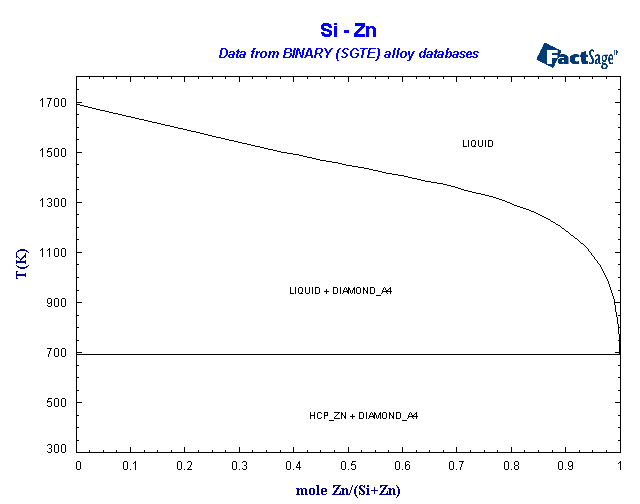

Si-Zn

LIQUID DIAMOND_A4 HCP_ZN

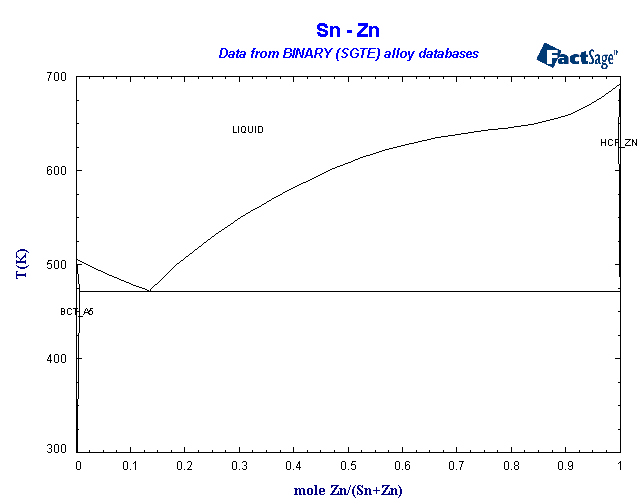

Sn-Zn

LIQUID BCT_A5 HCP_ZN

Sn-Zr

LIQUID BCC_A2 HCP_A3 BCT_A5(ST) SN2ZR(ST)

SN3ZR5(ST) SNZR4(ST)

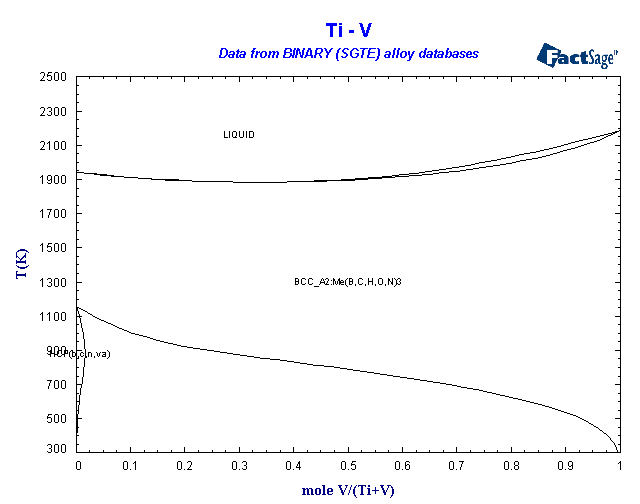

Ti-V

LIQUID BCC_A2 HCP_A3

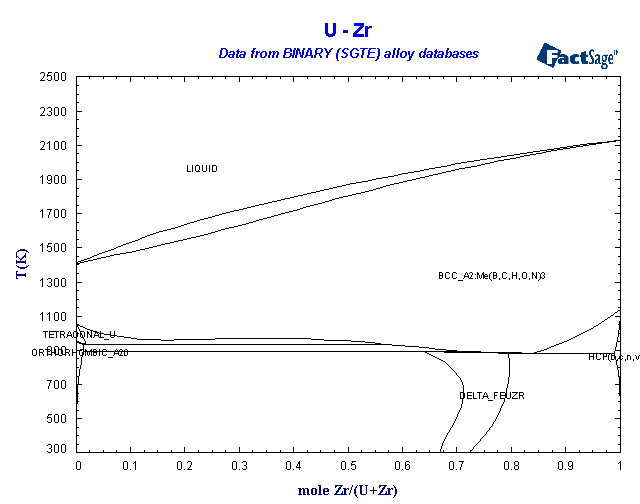

U-Zr

LIQUID BCC_A2 HCP_A3 TETRAGONAL_U

DELTA_FEUZR ORTHORHOMBIC_A20

==================================================================================

Table 3: List of references associated with the SGTE Binary Solution database

Ag-Bi

AgBi-98Luk Lukas, unpublished work,

Ag-Cu

AgCu-98Luk L Lukas,
private comunication; Ag-Cu

Ag-Ge

AgGe-88Che P Y Chevalier,
Thermochimica Acta, 130 (1988) p 25-32.

Ag-Ir

AgIr-98Spe P J Spencer,
Private communication, June 1998.

Ag-Mg

AgMg-98Spe P J Spencer,
Private communication, June 1998.

Ag-Os

AgOs-98Spe P J Spencer,
Private communication, June 1998.

Ag-Pb

AgPb-98Luk L Lukas, unpublished work,

Ag-Pt

AgPt-98Spe P J Spencer,
private communication, July 1998.

Ag-Sb

AgSb-96Oh C S Oh, J H Shim, B J Lee, D N Lee,
J Alloys Compounds 238(1996) p 155-166; Ag-Sb-Sn.

Ag-Si

AgSi-90Has S Hassam, J Agren, M Gaune-Escard, J P Bros,
Metall Trans 21A(1990)7 p 1877-188

Ag-Sn

AgSn-96Oh. Oh, Shim, Lee and Lee; J. Alloys and Compounds 1996, 238, 155-166.

Update Alan Dinsdale.

Ag-Zn

AgZn-98Gom T Gomez-Acebo,
Calphad 22(1998)2 p 203-220; Ag-Zn
Calphad 22(1998)2 p 203-220

Al-Ce

AlCe-98Cac G Cacciamani, G Borzone, R Ferro,
Anales de Fisica 86B(1991) p 160-162

Al-Cr

AlCr-98Sau N Saunders,
COST 507 (1998) ISBN 92-828-3902-8 p 23-27;
based on: Z Metallknd 78(1987)11 p 795-801.

Al-Ga

AlGa-92Wat A Watson,
Calphad 16(1992)2 p 207-217.

Al-Ge

AlGe-79Ans I Ansara, J P Bros, M Gambino,
Calphad 3(1979)3 p 225-233; Al-Ga-Ge, Al-Ge-Sn, Ga-Ge-Sn.

Al-Mg

AlMg-98Buh N Saunders,
Calphad 14(1990)1 p 61-70; Al-Mg 90Sau
T Buhler, S G Fries, P J Spencer, H L Lukas,
J. Phase Equil. 19(1998)4 p 317-333.

Al-Mn

AlMn-98Jan A Jansson,
Metall Trans 23A(1992)11 p 2953-2962,
TRITA-MAC 462 (1991); Al-Mn 92Jan1
A Jansson,
COST 507 (1998) ISBN 92-828-3902-8 p 54-58; Al-Mn.

Al-Nb

C Servant and I Ansara, J Chim Phys (1997) pp 869-888.

Al-Ni

AlNi-97Ans I Ansara, N Dupin, H L Lukas, B Sundman,
J. Alloys and Compounds 247(1997)1 p 20-30.

Al-Pb

AlPb-96Yu S K Yu, F Sommer, B Predel,
Z Metallkd 87(1996)7 p 574-580.

Al-Si

AlSi-97Feu J Grobner, H L Lukas, F Aldinger,
COST 507 (1998) ISBN 92-828-3902-8 p 79-82;.
Al-Si 98Gro1
H Feufel, T Godecke, H L Lukas, F Sommer,
J. Alloys and Compounds 247(1997) p 31-42.

Al-Sn

S. G. Fries, H. L. Lukas,
COST 507 (1998) ISBN 92-828-3902-8 p 81-82.
Al-Sn 98Fri1

AlSn-98Fri-AL.TDB S G Fries, H L Lukas,
COST 507 (1998) ISBN 92-828-3902-8 p 81-82.

Al-Ti

AlTi-98SauN Saunders,
COST 507 (1998) ISBN 92-828-3902-8 p 89-94.

Al-Zn

AlZn-93Mey S an Mey,
Z. Metallkde 84(1993)7 p 451-455.

As-Ga

AsGa-90Cha C Chatillon, I Ansara, A Watson, B B Argent,

Calphad 14(1990)2 p 203-214; As-Ga, As-In.

As-Ge

AsGe-84Ans I Ansara, D Dutartre,
Calphad 8(1984)4 p 323-342; Al-As-Ga-Ge.

Au-Bi

AuBi-88Che P Y Chevalier,
Thermochimica Acta 136(1988) p 15-24.

Au-Cr

AuCr-98Spe P J Spencer,
private communication, June 1998.

Au-Cu

98Sun B Sundman, S G Fries, A Oates,
Calphad 22(1998)3 p 335-354

Au-Rh

AuRh-98Spe P J Spencer,
private communication, June 1998.

Au-Si

AuSi-98Che P Y Chevalier,
private communication, July 1998

B-Fe

BFe-91Pan unpublished research (1991),
B-Cr, B-Fe, B-Mo, B-Ni, B-V.

B-Ni

BNi-91Pan L M Pan,
unpublished research (1991), B-Cr, B-Fe, B-Mo, B-Ni, B-V.

B-Ti

BTi-98Bat C Batzner,
COST 507 (1998) ISBN 92-828-3902-8 p 129-13.

Ba-Cu

Konetzki R, Schmid-Fetzer R; Watson A; Argent B; Fries S G
and Lukas H L; Z. Metallkde.; 1993, 84(8), 569-573.

Ba-Y

[94Kon] R.Konetzki, R. Schmid-Fetzer, S. G. Fries, H. L. Lukas,
Z. Metallkd. 85 (1994) 748-755.

Bi-Ge

BiGe-88Che P Y Chevalier,
Thermochimica Acta 132(1988) p 111-116.

Bi-In

BiIn-88Che P Y Chevalier,
Calphad 12(1988)4 p 383-392 (rev.1990).

Bi-Mg

98Che 'from Pierre-Yves Chevalier sent to SGTE March 1998.

Bi-Sb

BiSb-94Oht H Ohtani, K Ishida,
J. Electronic Mater 23(1994)8 p 747-755; Bi-Sb, Bi-Sn.

Bi-Sn

BiSn-94Oht H Ohtani, K Ishida,
J. Electronic Mater 23(1994)8 p 747-755.

C-Fe

CFe-85Gus-P Gustafson,
Scan. J. Metall 14(1985) p 259-267, TRITA-MAC 237 (1984).

C-Nb

W Huang, M Selleby, TRITA-MAC 583 (1996).

C-Ni

CNi-87Gab A Gabriel, P Gustafson, I Ansara,
Calphad 11(1987)2 p 203-218, TRITA-MAC 285 (1986).

C-Ti

CTi-99Dum L F S Dumitrescu, M Hillert, B Sundman,
unpublished work, June 1998.

C-W

CW-86Gus P Gustafson,
Mater Sci and Tech 2(1986)7 p 653-658, TRITA-MAC 212 (1985).

C-Zr

CZr-95GuiA F Guillermet,
J. Alloys Compounds 217(1995).

Ca-Si

CaSi-91Ang C Anglezio,
unpublished work (1991).

Cd-In

W. Zakulski, Z. Moser, K. Rzyman, H. L. Lukas, S. G. Fries, M. Sukiennik, R. Kaczmarczyk

and R. Castanet, J. Phase Equilibria 14 (1993),184-196.

Cd-Sb

L E Zabdyr, Calphad (1993) pp 125-132; Cd-Sb.

Cd-Te

95Yan 'Yang et al, Calphad 19, (1995) p 399.

Co-Cr

CoCr-97Kus A Kusoffsky, B Jansson,
Calphad 21(1997)3 p 321-333.

Co-Fe

CoFe-88Gui A F Guillermet,
High Temp High Press 19(1988) p 477-499, TRITA-MAC 324 (1986).

Co-Nb

CoNb-98Kum K C H Kumar, I Ansara, P Wollants, L Delaey
J. Alloys and Compounds 267(1998) p 105-112.

Co-Pt

P Spencer, private communication (1990); Co-Pt .

Co-Ti

CoTi-99Cac G. Cacciamani, R Ferro, I. Ansara, N. Dupin,
submitted to "Intermetallics" 1999.

Co-W

CoW-89Gui A F Guillermet,
Metall Trans 20A(1989)5 p 935-956, TRITA-MAC 371 (1988).

Cr-Cu

CrCu-87SauN Saunders,
Mater. Sci. and Techn. ,3 (1987) 8, pp. 671-673.

Cr-Fe

CrFe-93Lee B J Lee,
Calphad 17(1993)3 p 251-26.

Cr-Mn

CrMn-89NPL NPL, unpublished work (1989).

Cr-Si

CrSi-94Cou C A Coughanowr, I Ansara, H L Lukas,
Calphad 18(1994)2 p 125-140

Cr-W

CrW-88Gus P Gustafson,
Calphad 12(1988)3 p 277-292, TRITA-MAC 320 (1986).

Cs-Na

CsNa-85Ran M H Rand,
AERE Harwell, report at KTH.

Cs-Rb

CsRb-85Ran M H Rand,
AERE Harwell, report at KTH.

Cu-Fe

CuFe-98Ans I Ansara, A Jansson,
TRITA-MAC 533 (1993),
COST 507 (1998) ISBN 92-828-3902-8 p 165-16.

Cu-Mg

CuMg-98Cou C A Coughnanowr, I Ansara, R Luoma, et al
Z Metallkde 82(1991)7 p 574-581

Cu-Ni

CuNi-92Mey S an Mey,
Calphad 16(1992)3 p 255-260.

Cu-Pb

CuPb-86HayF H Hayes, H L Lukas, G Effenberg, G Petzow,
Z. Metallkde, 77(1986) 11, pp. 749-754.

Cu-Sn

CuSn-96ShiJ H Shim, C S Oh, B J Lee, D N Lee,
Z. Metallkd, 87(1996)3 pp. 205-212.

Cu-Y

CuY-94Fri S G Fries, H L Lukas, R Konetzki, et al
J. Phase Equil. 15(1994)6, pp. 606-61.

Er-Ho

ErHo-99Nor A T Dinsdale, Unary update July 1999 99Din
S Norgren, TRITA-MAC 628 (1999); Dy-Er, Dy-Ho, Er-Ho, Er-Tb, Ho-T.

Er-Tb

ErTb-99Nor A T Dinsdale, Unary update July 1999 99Din
S Norgren, TRITA-MAC 628 (1999); Dy-Er, Dy-Ho, Er-Ho, Er-Tb, Ho-T.

Fe-N

FeN-93HDu

H Du,
J Phase Equilibria 14(1993)6 p 682-693; Fe-N, C-Fe-N.

Fe-Ni

Byeong-Joo Lee, CALPHAD 17 (1993) 251-268

Fe-O

B Sundman, J. Phase Eq. 12 (1991), pp. 127-140.

Fe-Si

FeSi-91Lac J Lacaze, B Sundman,
Metall Trans. 22A(1991)10 pp. 2211-2223.

Fe-Ti

FeTi-98Ran M H Rand,
COST 507 (1998) ISBN 92-828-3902-8 p 205-207; Fe-Ti.

Fe-Zr

FeZr-95Ser C Servant, C Gueneau, I Ansara,
J. Alloys and Compounds 247(1995)1 p 19-26.

Ga-In

GaIn-78Ans I Ansara, J P Bros, C Girard,
Calphad 2(1978)3 p 187-196; Al-Ga, Al-In, Ga-In, Al-Ga-In.

Ga-Zn

GaZn-80NPL MTDS NPL.

Ge-Si

GeSi-92Ber C Bergman, R Chastel, R Castanet
J. Phase Equilibria, 13(1992)2 p 113-119.

Ge-Te

A. Schlieper, Y. Feutelais. S. G. Fries and B. Legendre,
Calphad 23 (1999) 1-18.

Ge-Zn

GeZn-89CheP Y Chevalier,
Thermochimica Acta 155(1989) p 227-240; Ge-In, Ge-Pb, Ge-Sb, Ge-Tl, Ge-Zn.

H-Nb

97Ans N. Dupin and I. Ansara provided, H-Nb.

H-Zr

N. Dupin and I. Ansara, 1997,

Hg-Pb

New optimization by Maitre,Vilasi and Fiorani, data different from publication
Thermodynamic study of phase equilibria in the Pb-Bi-Hg system

J. PHASE EQUILIBRIA, 23 (4), (2002), 329-338.

In-Pb

InPb-98BoaD Boa, I Ansara,
Thermochimica Acta 314(1998) p 79-86; Bi-In-Pb 98Boa.

In-Sn

I Ansara, S G Fries, H L Lukas, Unpublished work.

La-Ni

LaNi-99Liu N Saunders,
COST 507 (1998) ISBN 92-828-3902-8 p 213-214; Li-Zr.

Li-Mg

N. Saunders,
Calphad 14(1990)1 p 61-70; Al-Mg, Li-Mg .

Mg-Si

H Heufel, T Godecke, H L Lukas, F Sommer,
J. Alloys and Compounds 247(1997)1-2 p 31-42; Mg-Si.

Mg-Zr

MgZr-98HamM Hamalainen,
COST 507 (1998) ISBN 92-828-3902-8 p 234-235; Mg-Zr.

Mn-Pb

MnPb-87Din A T Dinsdale, D D Gohil,
NPL, unpublished work (1987).

Mn-Ti

MnTi-94Sau N Saunders,
COST 507 (1994) ISBN 2-87263-156-9, p 169; Mn-Ti.

Mo-Ni

MoNi-99Cui Y Cui,
Private communication, 1999; Mo-Ni.

Mo-Si

MoSi-89Vah C Vahlas, P Y Chevalier, E Blanquet,
Calphad 13(1989)3 p 273-292; Mo-Si, Si-Ta, Si-Ti, Si-W.

Mo-Ti

MoTi-98Sau N Saunders,
COST 507 (1998) ISBN 92-828-3902-8 p 249-252; Mo-Ti.

N-Nb

NNb-92Jan B Jansson,
Private communication (1992); Fe-N-Nb.

N-Ni

NNi-91FriK Frisk,
Z. Metallkd 82(1991)1 p 59-66, TRITA-MAC 414 (1989); Fe-N-Ni.

Na-Rb

86Ran5 'M H Rand, AERE Harwell, report at KTH; Na-Rb.

Nb-V

NbV-94KumK C H Kumar, P Wollants, L Delaey,
Calphad 18(1994)1 p 71-79.

Ni-P

NiP-89NPLNPL,
unpublished work (1989); Ni-P.

Ni-Si

NiSi-96Lin-AM Lindholm, B Sundman,
Metall Trans 26A(1996) p 2897-2903; Ni-Si.

Ni-Ta

NiTa-99CuBeing reassessed, new experimental data. (Ni-Ta).

Ni-Zr

NiZr-94Gho G Ghosh,
J. Mater. Res. 9(1994) p 598-616 amended version; Ni-Zr.

O-Zr

Prototype for ionic-liquid and hcp ordering. Modelling of ZrO2 modified
in U-Zr-O. (OZr).

Pb-Sn

PbSn-86Ans I. Ansara,
unpublished assessment (1986); Pb-Sn.

Se-Te

B.Legendre, Y.Feutelais, private communication to SGTE, 1996.

Si-Ti

SiTi-89Vah-AS.TDBC Vahlas, P Y Chevalier, E Blanquet,
Calphad 13(1989)3 p 273-292;Mo-Si, Si-Ta, Si-Ti, Si-W.

Si-W

SiW-89Vah C Vahlas, P Y Chevalier, E Blanquet,
Calphad 13(1989)3 p 273-292; Mo-Si, Si-Ta, Si-Ti, Si-W.

Si-Zn

SiZn-86Mey S an Mey, K Hack,
Z. Metallkde 77(1986)7 p 454-45.

Sn-Zn

SnZn-98Fri S G Fries, H L Lukas,
COST 507 (1998) ISBN 92-828-3902-8 p 288-289; Sn-Zn.

Sn-Zr

SnZr-98KoJ Korb, K Hack,
COST 507 (1998) ISBN 92-828-3902-8 p 290-292; Sn-Zr.

Ti-V

TiV-98Sau N Saunders,
COST 507 (1998) ISBN 92-828-3902-8 p 297-298; Ti-V.

U-Zr

98AEA 'Provided by AEA Harwell; U-Zr.
